VNP5N07-E

VNP5N07-E Overview

Product belongs to the OMNIFET II, VIPower series. Tube is the packaging method for this product Weight of 0.011640 oz Through Hole Mounting-Style TO-220-3 Si is the technology used. The Non-Inverting for this product is CMOS/TTL. Operational temperature range: - Output-Type: N-Channel Number of channels: 1 Channel Interface: On/Off Supplier device package: TO-220AB The Ratio-Input:Output for this product is 1899/12/30 1:01:00. Configuration Single Number-of-Outputs: 1 Supply Voltage: Not Required The Low Side. The 200 mOhm (Max). Voltage-Load range is 55V (Max). Our product delivers a 3.5A of 50mA for efficient power management. The Switch-Type is General Purpose. Transistor type: 1 N-Channel Power-off control: 31 W This product has a 40 ns of 16 ns. This product has a 60 ns of 16 ns. The ID of continuous drain current is 5 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 70 V. The 200 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 150 ns This product has a 50 ns. This product features a 4 S of 500 S for high performance.

VNP5N07-E Image

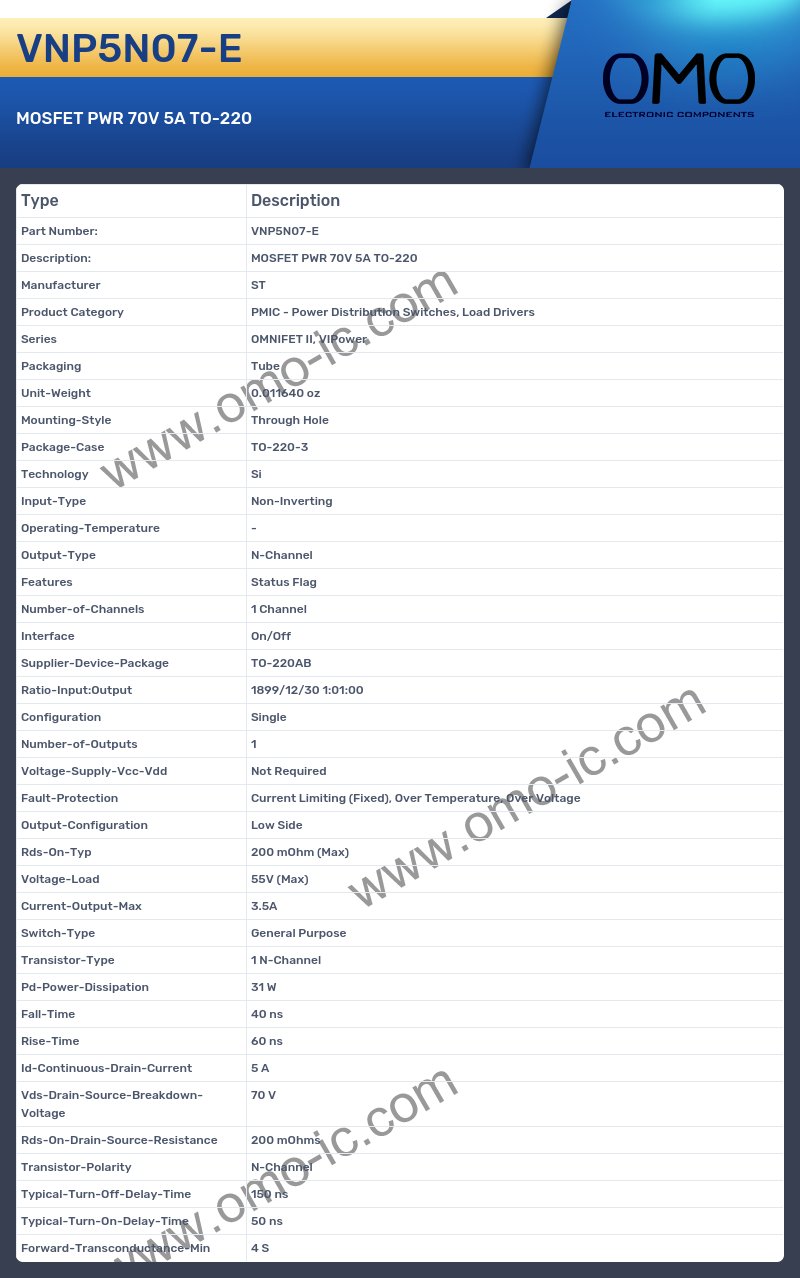

VNP5N07-E Specifications

• Manufacturer ST
• Product Category PMIC - Power Distribution Switches, Load Drivers
• Series OMNIFET II, VIPower
• Packaging Tube
• Unit-Weight 0.011640 oz
• Mounting-Style Through Hole
• Package-Case TO-220-3
• Technology Si
• Input-Type Non-Inverting
• Operating-Temperature -
• Output-Type N-Channel
• Features Status Flag
• Number-of-Channels 1 Channel
• Interface On/Off
• Supplier-Device-Package TO-220AB
• Ratio-Input:Output 1899/12/30 1:01:00
• Configuration Single
• Number-of-Outputs 1
• Voltage-Supply-Vcc-Vdd Not Required
• Fault-Protection Current Limiting (Fixed), Over Temperature, Over Voltage
• Output-Configuration Low Side
• Rds-On-Typ 200 mOhm (Max)
• Voltage-Load 55V (Max)
• Current-Output-Max 3.5A
• Switch-Type General Purpose
• Transistor-Type 1 N-Channel
• Pd-Power-Dissipation 31 W
• Fall-Time 40 ns
• Rise-Time 60 ns
• Id-Continuous-Drain-Current 5 A
• Vds-Drain-Source-Breakdown-Voltage 70 V
• Rds-On-Drain-Source-Resistance 200 mOhms
• Transistor-Polarity N-Channel
• Typical-Turn-Off-Delay-Time 150 ns
• Typical-Turn-On-Delay-Time 50 ns
• Forward-Transconductance-Min 4 S
