VND3NV04TR-E

VND3NV04TR-E Overview

Product belongs to the OMNIFET II, VIPower series. This product is categorized as MOSFET Gate Drivers Type: Autoprotected Power MOSFET Tape & Reel (TR) Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style TO-252-2 The Non-Inverting for this product is CMOS/TTL. Operational temperature range: -40°C ~ 150°C (TJ) Output-Type: N-Channel Interface: On/Off Supplier device package: D-Pak The Ratio-Input:Output for this product is 1899/12/30 1:01:00. Number-of-Outputs: 1 Supply Voltage: Not Required The Low Side. The 120 mOhm (Max). Voltage-Load range is 36V (Max). Our product delivers a 3.5A of 50mA for efficient power management. The Switch-Type is General Purpose. Power-off control: Yes Power-off control: 35 W 100 uA is 92 nA. Output current: 3.5 A This product has a 250 ns of 16 ns. This product has a 250 ns of 16 ns. Number-of-Drivers: 1 Driver This product has a Maximum-Turn-Off-Delay-Time of 450 ns. 90 ns maximum turn-on delay time

VND3NV04TR-E Image

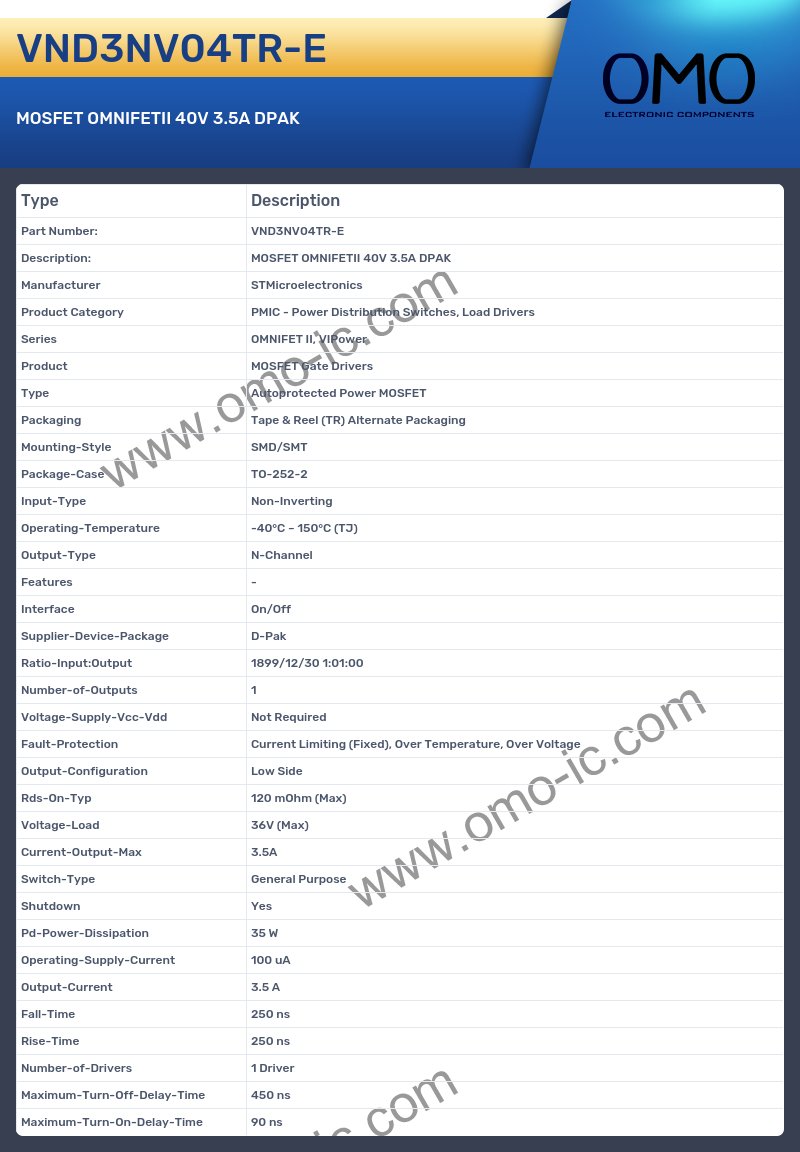

VND3NV04TR-E Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Power Distribution Switches, Load Drivers
• Series OMNIFET II, VIPower
• Product MOSFET Gate Drivers
• Type Autoprotected Power MOSFET
• Packaging Tape & Reel (TR) Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case TO-252-2
• Input-Type Non-Inverting
• Operating-Temperature -40°C ~ 150°C (TJ)
• Output-Type N-Channel
• Features -
• Interface On/Off
• Supplier-Device-Package D-Pak
• Ratio-Input:Output 1899/12/30 1:01:00
• Number-of-Outputs 1
• Voltage-Supply-Vcc-Vdd Not Required
• Fault-Protection Current Limiting (Fixed), Over Temperature, Over Voltage
• Output-Configuration Low Side
• Rds-On-Typ 120 mOhm (Max)
• Voltage-Load 36V (Max)
• Current-Output-Max 3.5A
• Switch-Type General Purpose
• Shutdown Yes
• Pd-Power-Dissipation 35 W
• Operating-Supply-Current 100 uA
• Output-Current 3.5 A
• Fall-Time 250 ns
• Rise-Time 250 ns
• Number-of-Drivers 1 Driver
• Maximum-Turn-Off-Delay-Time 450 ns
• Maximum-Turn-On-Delay-Time 90 ns
