VNB35NV04-E

VNB35NV04-E Overview

Product belongs to the OMNIFET II, VIPower series. This product is categorized as Power Switches Type: Low Side Tube Alternate Packaging is the packaging method for this product Weight of 0.066315 oz SMD/SMT Mounting-Style D2PAK-2 The Non-Inverting for this product is CMOS/TTL. Operational temperature range: -40°C ~ 150°C (TJ) Output-Type: N-Channel Interface: On/Off Supplier device package: D2PAK The Ratio-Input:Output for this product is 1899/12/30 1:01:00. Number-of-Outputs: 1 Supply Voltage: Not Required The Low Side. The 13 mOhm (Max). Voltage-Load range is 36V (Max). Our product delivers a 30A of 50mA for efficient power management. The Switch-Type is General Purpose. Power-off control: 125 W Maximum operating temperature of + 150 C Minimum operating temperature: - 40 C This product operates at a - supply voltage for reliable performance. Output current: 30 A Max on-resistance of 13 mOhms Maximum off time: 120 us This product's 30 A feature is adjustable. Maximum on-time: 12 us

VNB35NV04-E Image

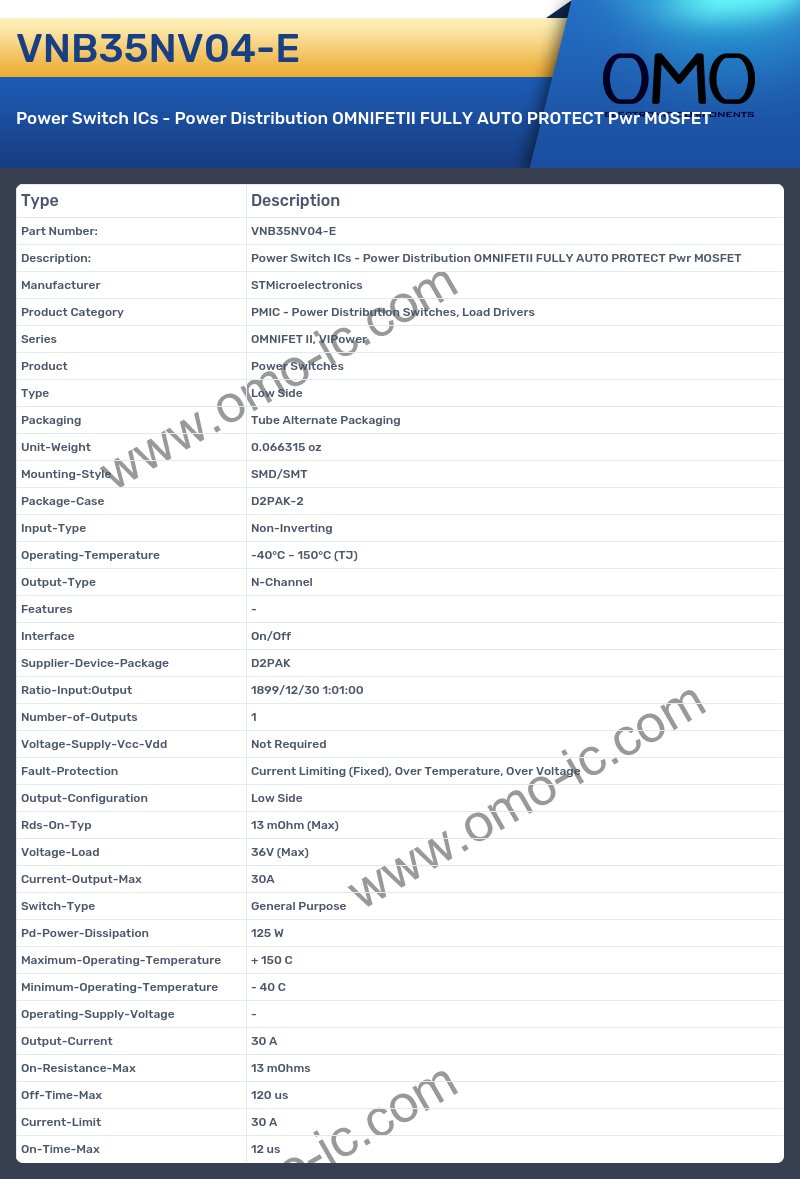

VNB35NV04-E Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Power Distribution Switches, Load Drivers
• Series OMNIFET II, VIPower
• Product Power Switches
• Type Low Side
• Packaging Tube Alternate Packaging
• Unit-Weight 0.066315 oz
• Mounting-Style SMD/SMT
• Package-Case D2PAK-2
• Input-Type Non-Inverting
• Operating-Temperature -40°C ~ 150°C (TJ)
• Output-Type N-Channel
• Features -
• Interface On/Off
• Supplier-Device-Package D2PAK
• Ratio-Input:Output 1899/12/30 1:01:00
• Number-of-Outputs 1
• Voltage-Supply-Vcc-Vdd Not Required
• Fault-Protection Current Limiting (Fixed), Over Temperature, Over Voltage
• Output-Configuration Low Side
• Rds-On-Typ 13 mOhm (Max)
• Voltage-Load 36V (Max)
• Current-Output-Max 30A
• Switch-Type General Purpose
• Pd-Power-Dissipation 125 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage -
• Output-Current 30 A
• On-Resistance-Max 13 mOhms
• Off-Time-Max 120 us
• Current-Limit 30 A
• On-Time-Max 12 us
