VN808TR-E

VN808TR-E Overview

Product belongs to the VIPower series. This product is categorized as Half-Bridge Drivers Type: Non-Inverting Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style PowerSO-36 The Non-Inverting for this product is CMOS/TTL. Operational temperature range: -40°C ~ 125°C (TJ) Output-Type: N-Channel Interface: On/Off Supplier device package: PowerSO-36 The Ratio-Input:Output for this product is 1899/12/30 1:01:00. Number-of-Outputs: 8 Supply Voltage: Not Required The High Side. The 150 mOhm. Voltage-Load range is 10.5 V ~ 45 V. Our product delivers a 700mA of 50mA for efficient power management. The Switch-Type is General Purpose. Power-off control: 96 W Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C 12 mA is 92 nA. Output current: 700 mA Maximum supply voltage of 45 V Minimum supply voltage is 10.5 V Number-of-Drivers: 8 Driver

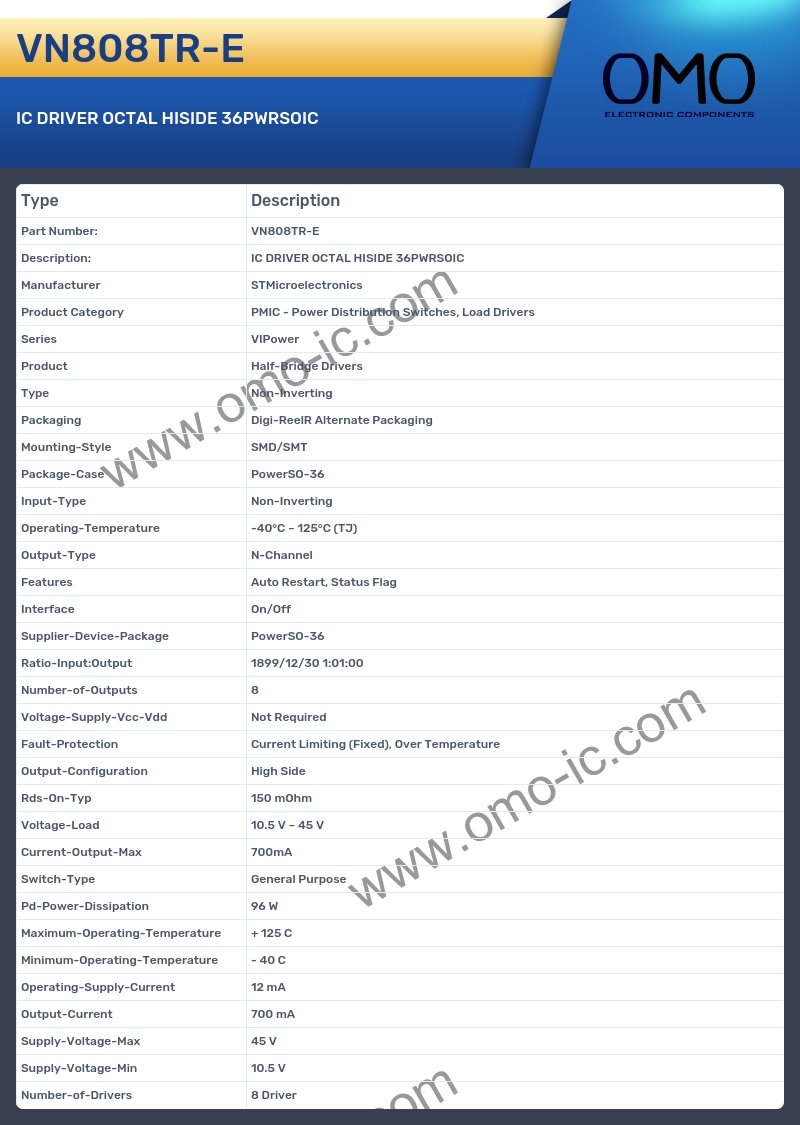

VN808TR-E Image

VN808TR-E Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Power Distribution Switches, Load Drivers
• Series VIPower
• Product Half-Bridge Drivers
• Type Non-Inverting
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case PowerSO-36
• Input-Type Non-Inverting
• Operating-Temperature -40°C ~ 125°C (TJ)
• Output-Type N-Channel
• Features Auto Restart, Status Flag
• Interface On/Off
• Supplier-Device-Package PowerSO-36
• Ratio-Input:Output 1899/12/30 1:01:00
• Number-of-Outputs 8
• Voltage-Supply-Vcc-Vdd Not Required
• Fault-Protection Current Limiting (Fixed), Over Temperature
• Output-Configuration High Side
• Rds-On-Typ 150 mOhm
• Voltage-Load 10.5 V ~ 45 V
• Current-Output-Max 700mA
• Switch-Type General Purpose
• Pd-Power-Dissipation 96 W
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 12 mA
• Output-Current 700 mA
• Supply-Voltage-Max 45 V
• Supply-Voltage-Min 10.5 V
• Number-of-Drivers 8 Driver
