USBUF02W6

USBUF02W6 Overview

Product belongs to the USBUF series. Type: Low Pass Digi-ReelR Alternate Packaging is the packaging method for this product This product's Termination-Style is ' SMD/SMT ' for easy integration into your design. The Height of the product is 0.043" (1.10mm). 6-TSSOP, SC-88, SOT-363 RC (Pi) is the technology used. Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Rated voltage range of - Versatile USB applications for maximum usability Number of channels: 2 Filter order is 2nd -28dB @ 900MHz of 10dB for superior noise reduction 22 Ohms Resistance Channel There are two Values: R = 22 Ohm, C = 47pF. ESD-Protection": " Yes

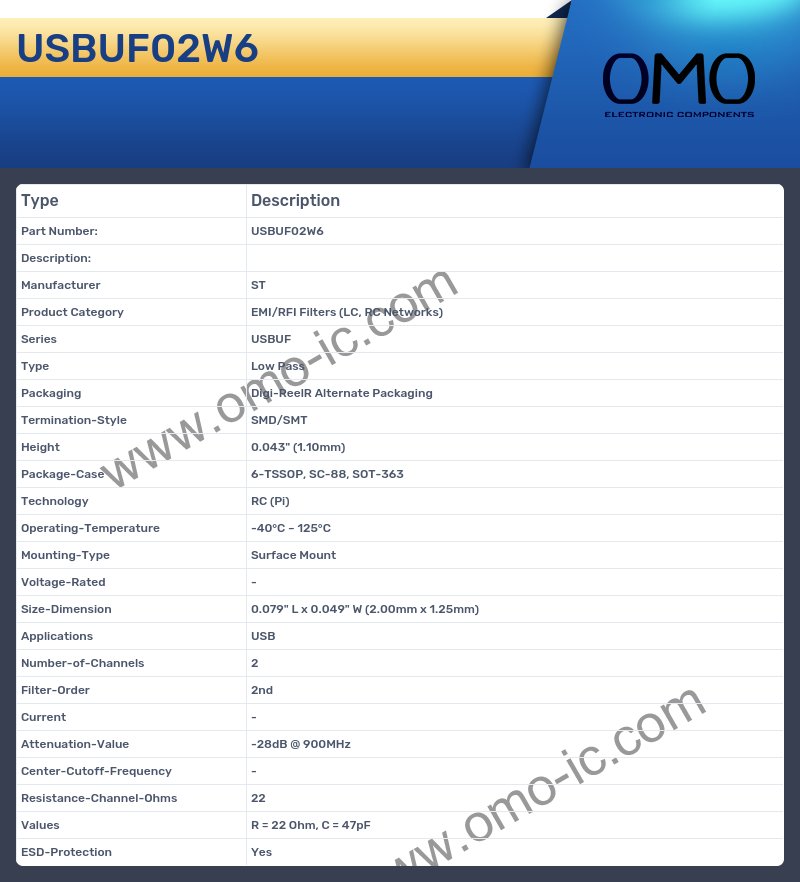

USBUF02W6 Image

USBUF02W6 Specifications

• Manufacturer ST
• Product Category EMI/RFI Filters (LC, RC Networks)
• Series USBUF
• Type Low Pass
• Packaging Digi-ReelR Alternate Packaging
• Termination-Style SMD/SMT
• Height 0.043" (1.10mm)
• Package-Case 6-TSSOP, SC-88, SOT-363
• Technology RC (Pi)
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Voltage-Rated -
• Size-Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
• Applications USB
• Number-of-Channels 2
• Filter-Order 2nd
• Current -
• Attenuation-Value -28dB @ 900MHz
• Center-Cutoff-Frequency -
• Resistance-Channel-Ohms 22
• Values R = 22 Ohm, C = 47pF
• ESD-Protection Yes
