| Mfr. #: | ULN2003AIDR |
|---|---|
| Fabricante: | Texas Instruments |
| Descripción: | Darlington Transistors HiVltg Hi-Crnt Darl Transistor Array |
| Ciclo vital: | Nuevo de este fabricante. |
| Ficha de datos: | ULN2003AIDR Ficha de datos |

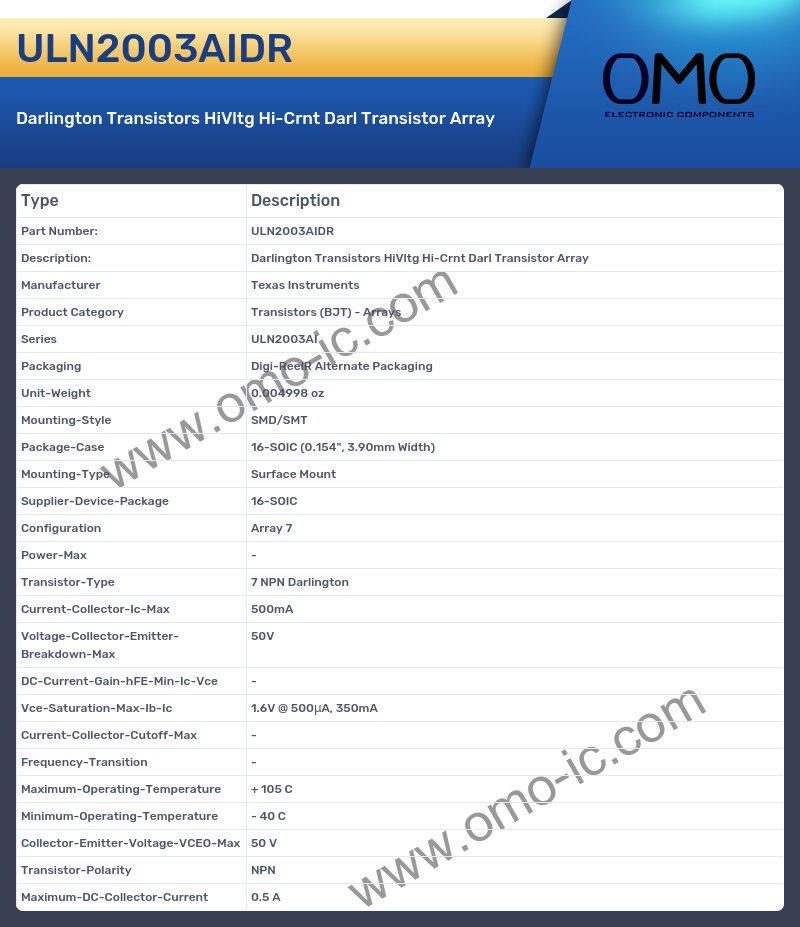

Product belongs to the ULN2003AI series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.004998 oz SMD/SMT Mounting-Style 16-SOIC (0.154", 3.90mm Width) Surface Mount mounting type Supplier device package: 16-SOIC Configuration Array 7 Transistor type: 7 NPN Darlington Maximum current collector Ic is 500mA . Maximum collector-emitter breakdown voltage of 50V DC current gain minimum (hFE) of Ic/Vce at -. Product Attribute: Vce-Saturation-Max-Ib-Ic: 1.6V @ 500μA, 350mA Maximum operating temperature of + 105 C Minimum operating temperature: - 40 C Rated VCEO up to 50 V The transistor polarity is NPN. Max DC collector current: 0.5 A
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
ULN2003AIDR Specifications
