UCD7242MRSJREP Overview

Product belongs to the UCD7242-EP series. This product is categorized as MOSFET Gate Drivers Type: Digital Dual Synchronous Buck Power Driver Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.002547 oz SMD/SMT Mounting-Style VQFN-32 Operational temperature range: -55°C ~ 125°C (TJ) Surface Mount mounting type Output-Type: - Product function is Step-Down. Supplier device package: 32-QFN (6x6) Configuration Dual Number-of-Outputs: 2 Topology: Buck feedback This product features 'Frequency-Switching' at 300kHz ~ 2MHz for optimal performance. The Positive. Minimum fixed output voltage is - . The value of Yes is included as a product attribute. The minimum input voltage is 4.75V. The 18V. Maximum operating temperature of + 125 C Minimum operating temperature: - 55 C 6 mA is 92 nA. Output current: 10 A This product is also known as V62/14601-01XE and can be referred to by either part number. Maximum supply voltage of 18 V Minimum supply voltage is 2.2 V Number-of-Drivers: 2 Driver

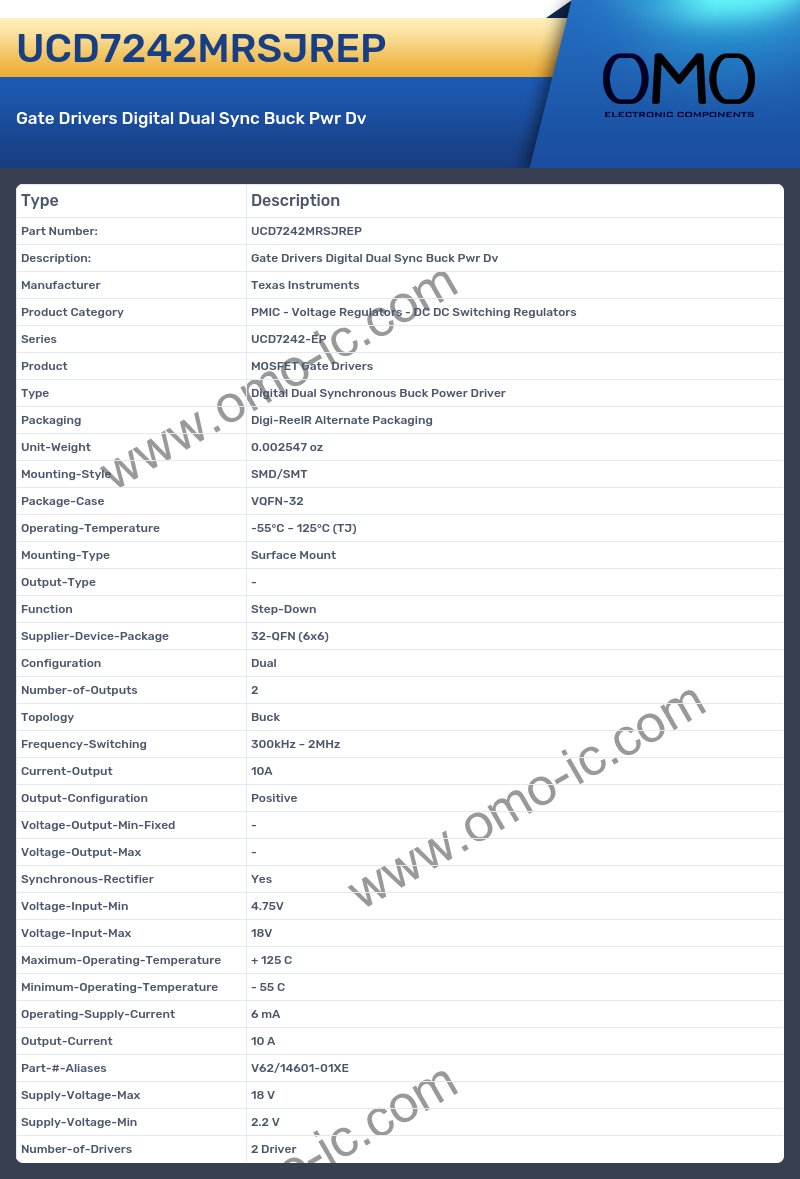

UCD7242MRSJREP Image

UCD7242MRSJREP Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Regulators
• Series UCD7242-EP
• Product MOSFET Gate Drivers
• Type Digital Dual Synchronous Buck Power Driver
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.002547 oz
• Mounting-Style SMD/SMT
• Package-Case VQFN-32
• Operating-Temperature -55°C ~ 125°C (TJ)
• Mounting-Type Surface Mount
• Output-Type -
• Function Step-Down
• Supplier-Device-Package 32-QFN (6x6)
• Configuration Dual
• Number-of-Outputs 2
• Topology Buck
• Frequency-Switching 300kHz ~ 2MHz
• Current-Output 10A
• Output-Configuration Positive
• Voltage-Output-Min-Fixed -
• Voltage-Output-Max -
• Synchronous-Rectifier Yes
• Voltage-Input-Min 4.75V
• Voltage-Input-Max 18V
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 55 C
• Operating-Supply-Current 6 mA
• Output-Current 10 A
• Part-#-Aliases V62/14601-01XE
• Supply-Voltage-Max 18 V
• Supply-Voltage-Min 2.2 V
• Number-of-Drivers 2 Driver
