UCD7231RTJT

UCD7231RTJT Overview

Product belongs to the UCD7231 series. This product is categorized as Driver ICs - Various Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.001344 oz SMD/SMT Mounting-Style WQFN-20 Operational temperature range: -40°C ~ 125°C (TJ) Output-Type: Transistor Driver Product function is Step-Down. Supplier device package: 20-QFN (4x4) Number-of-Outputs: 1 Topology: Buck feedback Supply Voltage: 4.7 V ~ 15 V This product features 'Frequency-Switching' at Up to 2MHz for optimal performance. The Control-Features include Current Limit function. The Positive. Output-Phases: 1 Maximum duty cycle of The value of Yes is included as a product attribute. No enabled Serial Interfaces: - Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C 8 mA is 92 nA. This product has a 20 ns of 16 ns. This product has a 30 ns of 16 ns. Maximum supply voltage of 15 V Minimum supply voltage is 4.7 V

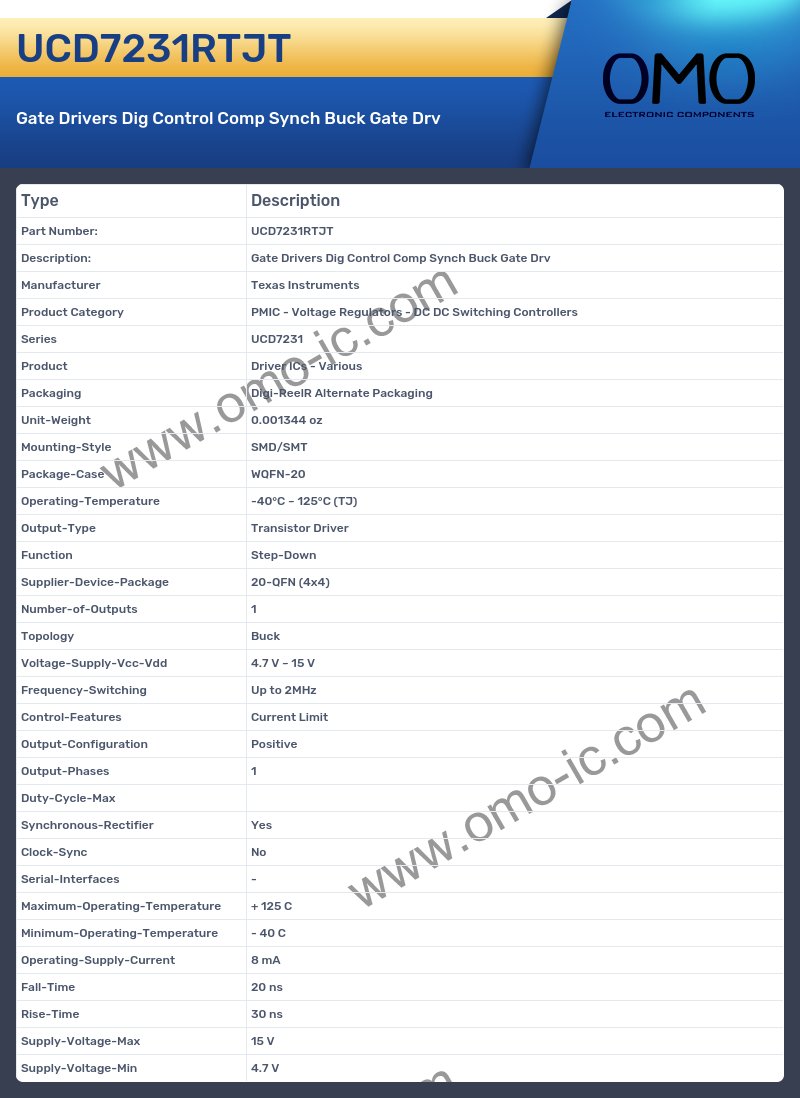

UCD7231RTJT Image

UCD7231RTJT Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Controllers
• Series UCD7231
• Product Driver ICs - Various
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.001344 oz
• Mounting-Style SMD/SMT
• Package-Case WQFN-20
• Operating-Temperature -40°C ~ 125°C (TJ)
• Output-Type Transistor Driver
• Function Step-Down
• Supplier-Device-Package 20-QFN (4x4)
• Number-of-Outputs 1
• Topology Buck
• Voltage-Supply-Vcc-Vdd 4.7 V ~ 15 V
• Frequency-Switching Up to 2MHz
• Control-Features Current Limit
• Output-Configuration Positive
• Output-Phases 1
• Duty-Cycle-Max
• Synchronous-Rectifier Yes
• Clock-Sync No
• Serial-Interfaces -
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 8 mA
• Fall-Time 20 ns
• Rise-Time 30 ns
• Supply-Voltage-Max 15 V
• Supply-Voltage-Min 4.7 V
