UCC35701DTR

UCC35701DTR Overview

Product belongs to the UCC35701 series. Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.004318 oz SMD/SMT Mounting-Style SOIC-14 Operational temperature range: -55°C ~ 150°C (TJ) * mounting type Supplier device package: 14-SOICN Number-of-Outputs: 1 Output Output-Isolation: Isolated This product has No. Topology: Boost, Buck, Flyback, Forward feedback Supply Voltage: 9 V ~ 15 V This product features 'Frequency-Switching' at 700kHz for optimal performance. The Control-Features include Soft Start, Sync function. Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Output current: 1000 mA Switching frequency is 700 kHz This product has a 20 ns of 16 ns. This product has a 20 ns of 16 ns. Maximum duty cycle of 99 %

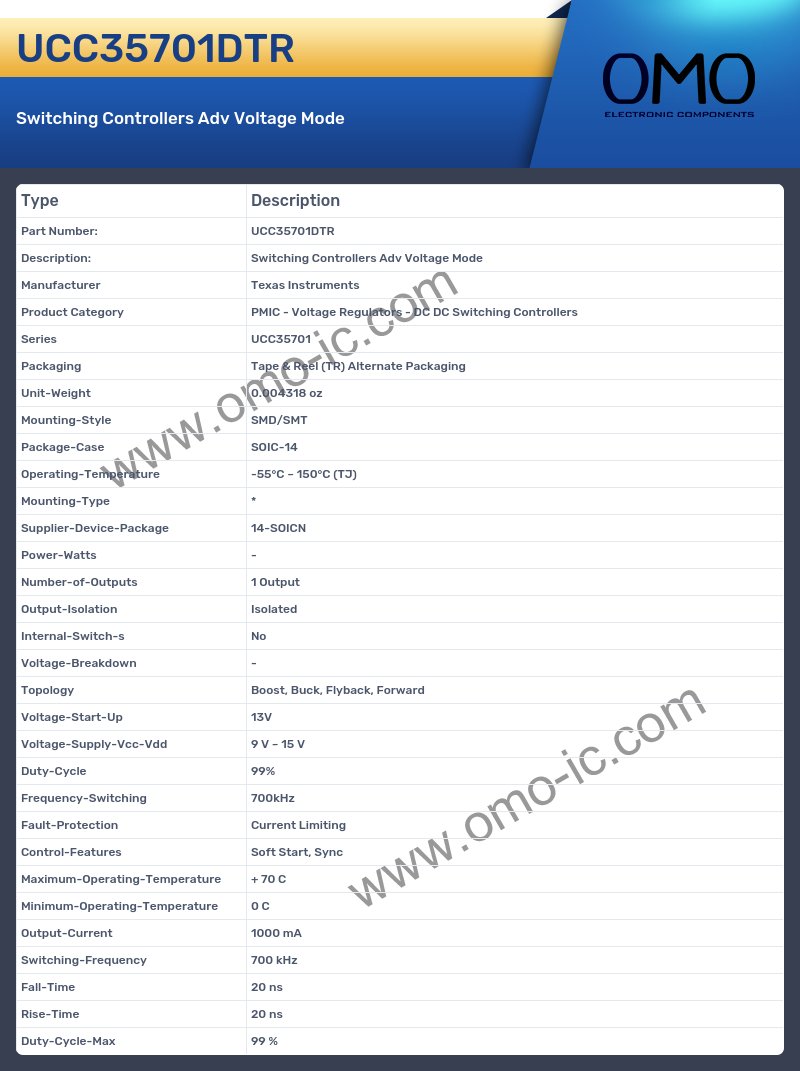

UCC35701DTR Image

UCC35701DTR Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Controllers
• Series UCC35701
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.004318 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-14
• Operating-Temperature -55°C ~ 150°C (TJ)
• Mounting-Type *
• Supplier-Device-Package 14-SOICN
• Power-Watts -
• Number-of-Outputs 1 Output
• Output-Isolation Isolated
• Internal-Switch-s No
• Voltage-Breakdown -
• Topology Boost, Buck, Flyback, Forward
• Voltage-Start-Up 13V
• Voltage-Supply-Vcc-Vdd 9 V ~ 15 V
• Duty-Cycle 99%
• Frequency-Switching 700kHz
• Fault-Protection Current Limiting
• Control-Features Soft Start, Sync
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Output-Current 1000 mA
• Switching-Frequency 700 kHz
• Fall-Time 20 ns
• Rise-Time 20 ns
• Duty-Cycle-Max 99 %
