UCC2897RTJR

UCC2897RTJR Overview

Product belongs to the UCC2897 series. Tape & Reel (TR) is the packaging method for this product Weight of 0.001344 oz SMD/SMT Mounting-Style WQFN-20 Operational temperature range: -40°C ~ 105°C (TA) Output-Type: Transistor Driver Product function is Step-Up/Step-Down. Supplier device package: 20-QFN (4x4) Number-of-Outputs: 1 Topology: Flyback, Forward Converter feedback Supply Voltage: 8.5 V ~ 14.5 V This product features 'Frequency-Switching' at 250kHz for optimal performance. The Control-Features include Enable, On Time Control, Soft Start function. The Positive, Isolation Capable. Output-Phases: 1 Maximum duty cycle of 74 % The value of Yes is included as a product attribute. Yes enabled Serial Interfaces: - Maximum operating temperature of + 105 C Minimum operating temperature: - 40 C This product operates at a 12 V supply voltage for reliable performance. Output current: 2000 mA Switching frequency is 1000 kHz This product has a 14 ns of 16 ns. This product has a 19 ns of 16 ns.

UCC2897RTJR Image

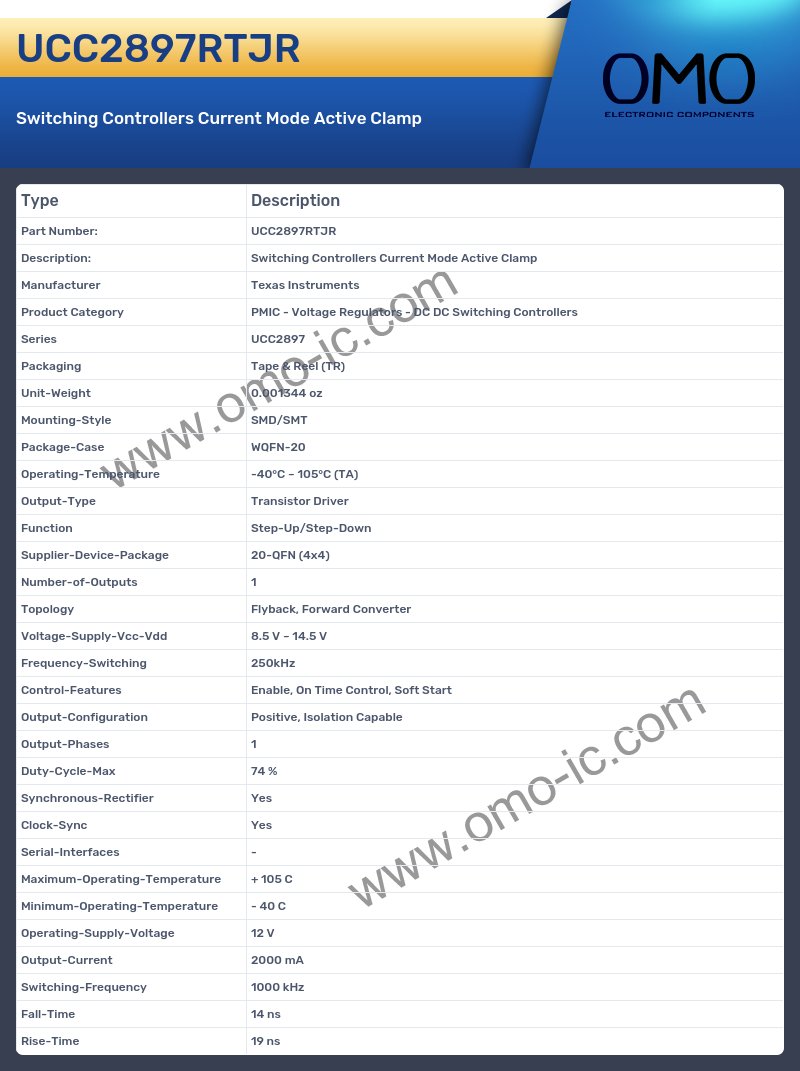

UCC2897RTJR Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Controllers
• Series UCC2897
• Packaging Tape & Reel (TR)
• Unit-Weight 0.001344 oz
• Mounting-Style SMD/SMT
• Package-Case WQFN-20
• Operating-Temperature -40°C ~ 105°C (TA)
• Output-Type Transistor Driver
• Function Step-Up/Step-Down
• Supplier-Device-Package 20-QFN (4x4)
• Number-of-Outputs 1
• Topology Flyback, Forward Converter
• Voltage-Supply-Vcc-Vdd 8.5 V ~ 14.5 V
• Frequency-Switching 250kHz
• Control-Features Enable, On Time Control, Soft Start
• Output-Configuration Positive, Isolation Capable
• Output-Phases 1
• Duty-Cycle-Max 74 %
• Synchronous-Rectifier Yes
• Clock-Sync Yes
• Serial-Interfaces -
• Maximum-Operating-Temperature + 105 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 12 V
• Output-Current 2000 mA
• Switching-Frequency 1000 kHz
• Fall-Time 14 ns
• Rise-Time 19 ns
