UCC28702DBVT

UCC28702DBVT Overview

Product belongs to the UCC28702 series. Type: Current Mode PWM Controllers Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.001270 oz SMD/SMT Mounting-Style Wide - 20 C to + 125 C operating temperature range for diverse applications SOT-23-6 Operational temperature range: -20°C ~ 125°C (TJ) Surface Mount mounting type Supplier device package: SOT-23-6 Number-of-Outputs: 1 Output Output-Isolation: Isolated This product has No. Topology: Flyback feedback Supply Voltage: 9 V ~ 35 V This product features 'Frequency-Switching' at 1kHz ~ 130kHz for optimal performance. The Control-Features include - function. The product's Isolated is non-isolated. Maximum operating temperature of + 125 C Output voltage: 14 V 2.1 mA is 92 nA. Output current: 25 mA Switching frequency is 875 Hz to 140 kHz Maximum duty cycle of 99 % This product requires a minimum 9 V of 2.95 V. This product has a maximum 35 V of 20 V.

UCC28702DBVT Image

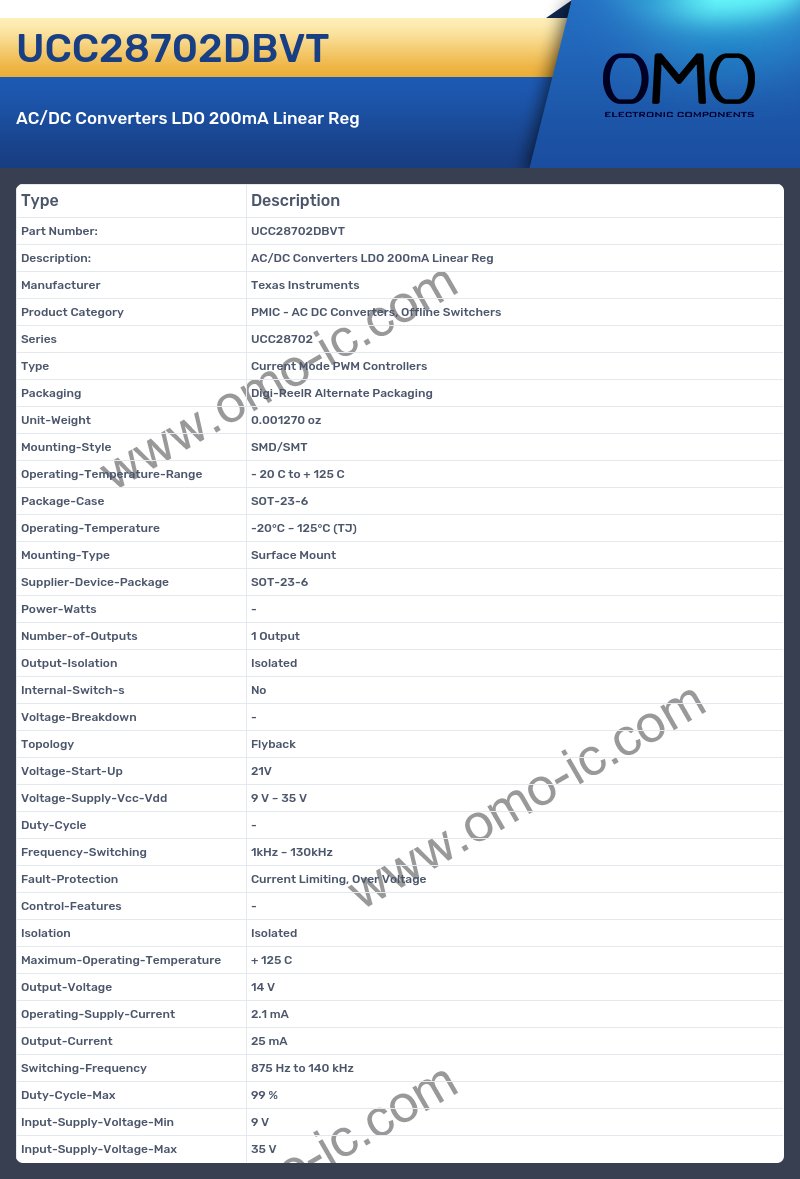

UCC28702DBVT Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - AC DC Converters, Offline Switchers
• Series UCC28702
• Type Current Mode PWM Controllers
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.001270 oz
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 20 C to + 125 C
• Package-Case SOT-23-6
• Operating-Temperature -20°C ~ 125°C (TJ)
• Mounting-Type Surface Mount
• Supplier-Device-Package SOT-23-6
• Power-Watts -
• Number-of-Outputs 1 Output
• Output-Isolation Isolated
• Internal-Switch-s No
• Voltage-Breakdown -
• Topology Flyback
• Voltage-Start-Up 21V
• Voltage-Supply-Vcc-Vdd 9 V ~ 35 V
• Duty-Cycle -
• Frequency-Switching 1kHz ~ 130kHz
• Fault-Protection Current Limiting, Over Voltage
• Control-Features -
• Isolation Isolated
• Maximum-Operating-Temperature + 125 C
• Output-Voltage 14 V
• Operating-Supply-Current 2.1 mA
• Output-Current 25 mA
• Switching-Frequency 875 Hz to 140 kHz
• Duty-Cycle-Max 99 %
• Input-Supply-Voltage-Min 9 V
• Input-Supply-Voltage-Max 35 V
