UCC2580D-4G4

UCC2580D-4G4 Overview

Product belongs to the - series. Tube Alternate Packaging is the packaging method for this product 16-SOIC (0.154", 3.90mm Width) Operational temperature range: -55°C ~ 150°C (TJ) * mounting type Supplier device package: 16-SOIC Output-Isolation: Isolated This product has No. Topology: Flyback, Forward feedback Supply Voltage: 8.5 V ~ 15 V This product features 'Frequency-Switching' at - for optimal performance. The Control-Features include Soft Start function.

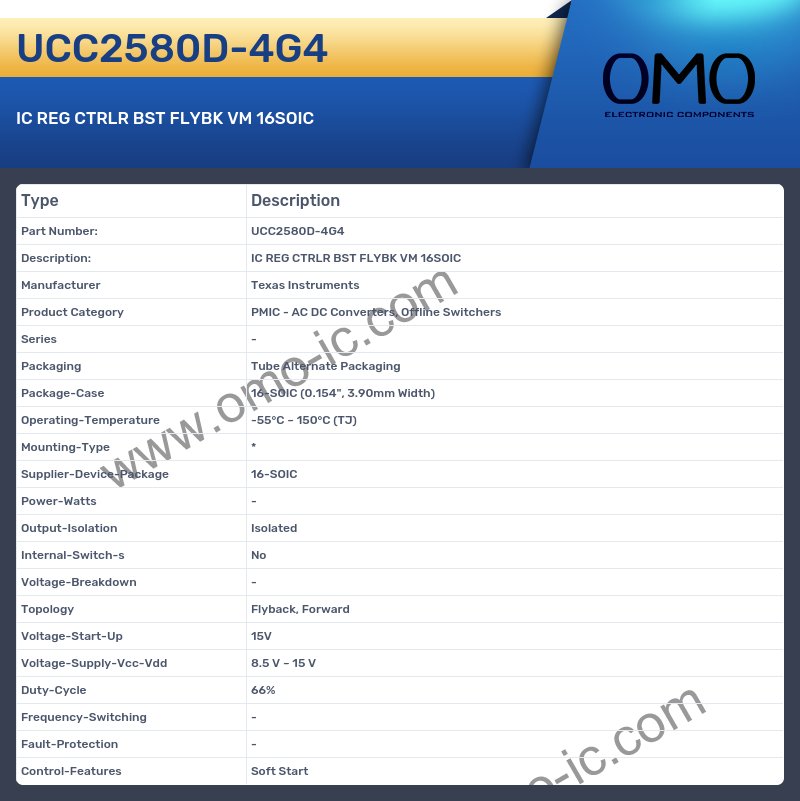

UCC2580D-4G4 Image

UCC2580D-4G4 Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - AC DC Converters, Offline Switchers
• Series -
• Packaging Tube Alternate Packaging
• Package-Case 16-SOIC (0.154", 3.90mm Width)
• Operating-Temperature -55°C ~ 150°C (TJ)
• Mounting-Type *
• Supplier-Device-Package 16-SOIC
• Power-Watts -
• Output-Isolation Isolated
• Internal-Switch-s No
• Voltage-Breakdown -
• Topology Flyback, Forward
• Voltage-Start-Up 15V
• Voltage-Supply-Vcc-Vdd 8.5 V ~ 15 V
• Duty-Cycle 66%
• Frequency-Switching -
• Fault-Protection -
• Control-Features Soft Start
