UC3524DW

UC3524DW Overview

Product belongs to the UC3524 series. This product is categorized as Switching Controllers Tube Alternate Packaging is the packaging method for this product Weight of 0.016709 oz SMD/SMT Mounting-Style SOIC-16 Wide Operational temperature range: 0°C ~ 70°C (TA) Output-Type: Transistor Driver Product function is Step-Up, Step-Up/Step-Down. Supplier device package: 16-SOIC Number-of-Outputs: 2 Topology: Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull feedback Supply Voltage: 8 V ~ 40 V This product features 'Frequency-Switching' at 300kHz for optimal performance. The Control-Features include Current Limit, Enable, Frequency Control, Ramp function. The Positive. Output-Phases: 1 Maximum duty cycle of 45 % The value of No is included as a product attribute. No enabled Serial Interfaces: - Power-off control: Yes The product's Non-Isolated is non-isolated. Maximum operating temperature of + 70 C Minimum operating temperature: 0 C This product operates at a 40 V supply voltage for reliable performance. Output voltage: 5 V 8 mA is 92 nA. Output current: 100 mA Switching frequency is 300 kHz This product has a 100 ns of 16 ns. This product has a 200 ns of 16 ns.

UC3524DW Image

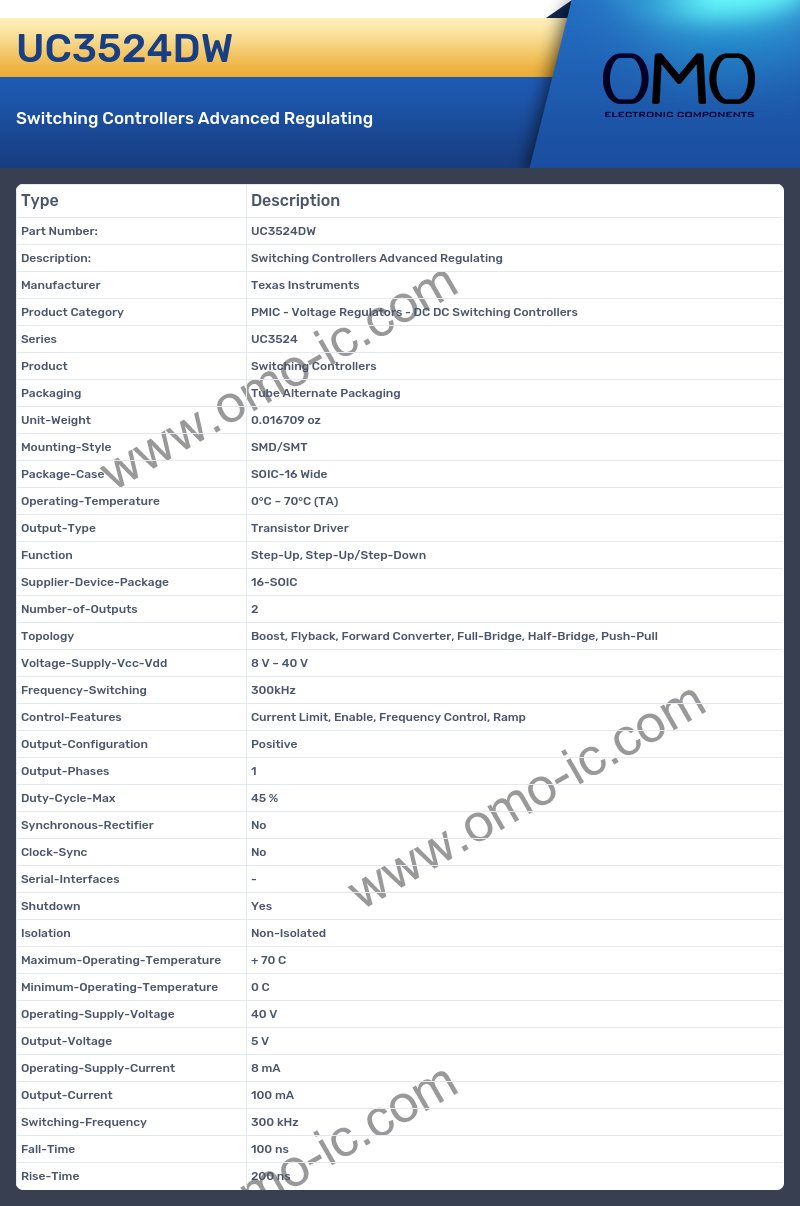

UC3524DW Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Controllers
• Series UC3524
• Product Switching Controllers
• Packaging Tube Alternate Packaging
• Unit-Weight 0.016709 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-16 Wide
• Operating-Temperature 0°C ~ 70°C (TA)
• Output-Type Transistor Driver
• Function Step-Up, Step-Up/Step-Down
• Supplier-Device-Package 16-SOIC
• Number-of-Outputs 2
• Topology Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull
• Voltage-Supply-Vcc-Vdd 8 V ~ 40 V
• Frequency-Switching 300kHz
• Control-Features Current Limit, Enable, Frequency Control, Ramp
• Output-Configuration Positive
• Output-Phases 1
• Duty-Cycle-Max 45 %
• Synchronous-Rectifier No
• Clock-Sync No
• Serial-Interfaces -
• Shutdown Yes
• Isolation Non-Isolated
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Voltage 40 V
• Output-Voltage 5 V
• Operating-Supply-Current 8 mA
• Output-Current 100 mA
• Switching-Frequency 300 kHz
• Fall-Time 100 ns
• Rise-Time 200 ns
