UC3524ADWG4

UC3524ADWG4 Overview

Product belongs to the - series. Tube Alternate Packaging is the packaging method for this product 16-SOIC (0.295", 7.50mm Width) Operational temperature range: 0°C ~ 70°C (TA) Output-Type: Transistor Driver Product function is Step-Up, Step-Down, Step-Up/Step-Down. Supplier device package: 16-SOIC Number-of-Outputs: 2 Topology: Buck, Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull feedback Supply Voltage: 8 V ~ 40 V This product features 'Frequency-Switching' at 500kHz for optimal performance. The Control-Features include Frequency Control function. The Positive. Output-Phases: 1 Maximum duty cycle of 0.45 The value of No is included as a product attribute. No enabled Serial Interfaces: -

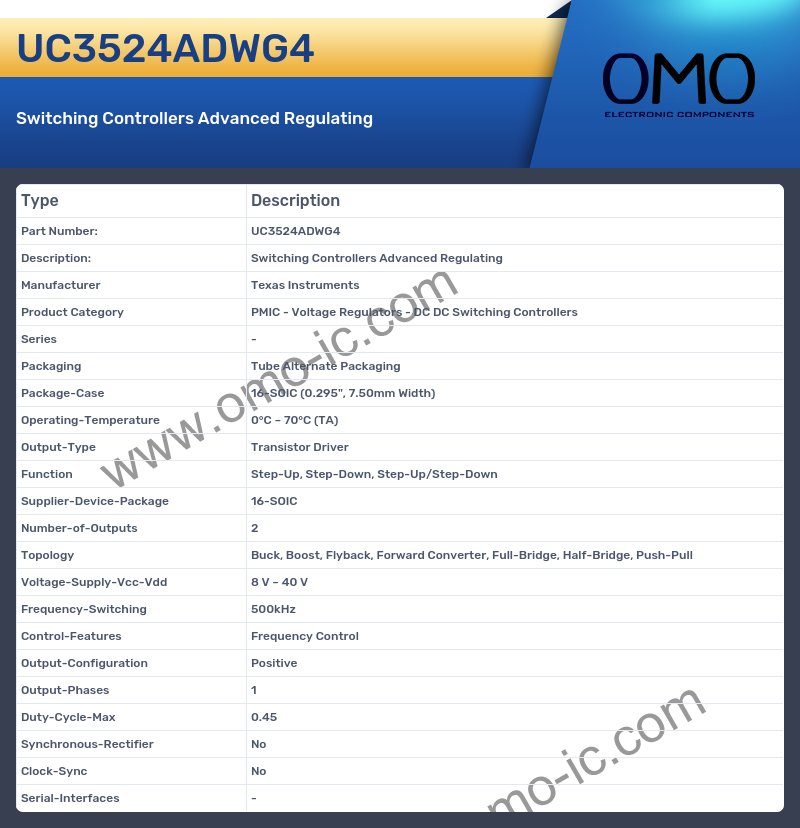

UC3524ADWG4 Image

UC3524ADWG4 Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Controllers
• Series -
• Packaging Tube Alternate Packaging
• Package-Case 16-SOIC (0.295", 7.50mm Width)
• Operating-Temperature 0°C ~ 70°C (TA)
• Output-Type Transistor Driver
• Function Step-Up, Step-Down, Step-Up/Step-Down
• Supplier-Device-Package 16-SOIC
• Number-of-Outputs 2
• Topology Buck, Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull
• Voltage-Supply-Vcc-Vdd 8 V ~ 40 V
• Frequency-Switching 500kHz
• Control-Features Frequency Control
• Output-Configuration Positive
• Output-Phases 1
• Duty-Cycle-Max 0.45
• Synchronous-Rectifier No
• Clock-Sync No
• Serial-Interfaces -
