| Mfr. #: | UC2841N |
|---|---|
| Fabricante: | Texas Instruments |
| Descripción: | Switching Controllers Prog Off-Line PWM Controlle |
| Ciclo vital: | Nuevo de este fabricante. |
| Ficha de datos: | UC2841N Ficha de datos |
Product belongs to the UC2841 series. Tube is the packaging method for this product Weight of 0.042544 oz Through Hole Mounting-Style PDIP-18 Operational temperature range: -25°C ~ 85°C (TA) Output-Type: Transistor Driver Product function is Step-Up, Step-Down, Step-Up/Step-Down. Supplier device package: 18-PDIP Number-of-Outputs: 1 Topology: Buck, Boost, Flyback, Forward Converter feedback Supply Voltage: 8 V ~ 32 V This product features 'Frequency-Switching' at 500kHz for optimal performance. The Control-Features include Current Limit, Enable, Frequency Control, Ramp, Reset, Soft Start function. The Positive, Isolation Capable. Output-Phases: 1 Maximum duty cycle of 95 % The value of No is included as a product attribute. No enabled Serial Interfaces: - Maximum operating temperature of + 85 C Minimum operating temperature: - 20 C Output current: 1000 mA Switching frequency is 450 kHz
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

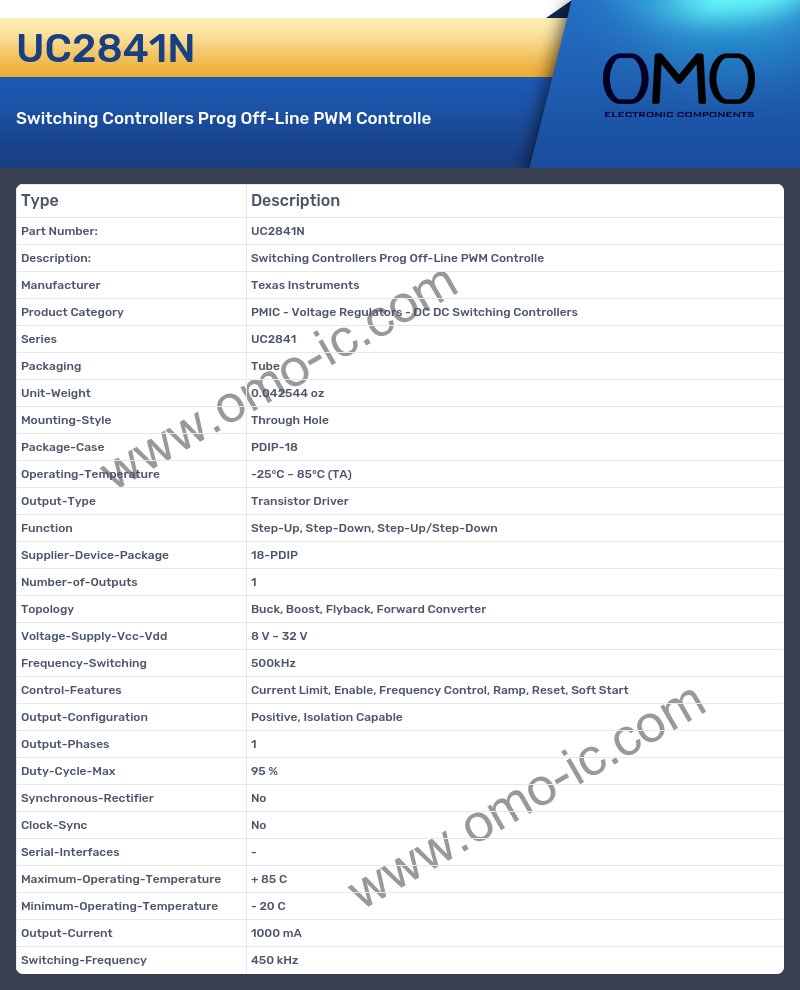

UC2841N Specifications
