UC28023DWR

UC28023DWR Overview

Product belongs to the UC28023 series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.016709 oz SMD/SMT Mounting-Style SOIC-16 Wide Operational temperature range: -40°C ~ 105°C (TA) Output-Type: Transistor Driver Product function is Step-Up, Step-Up/Step-Down. Supplier device package: 16-SOIC Number-of-Outputs: 1 Topology: Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull feedback Supply Voltage: 9 V ~ 30 V This product features 'Frequency-Switching' at 340kHz ~ 460kHz for optimal performance. The Control-Features include Current Limit, Enable, Frequency Control, Ramp, Soft Start function. The Positive. Output-Phases: 1 Maximum duty cycle of 100 % The value of Yes is included as a product attribute. No enabled Serial Interfaces: - Maximum operating temperature of + 105 C Minimum operating temperature: - 40 C Output current: 1500 mA Switching frequency is 1000 kHz This product has a 60 ns of 16 ns. This product has a 60 ns of 16 ns.

UC28023DWR Image

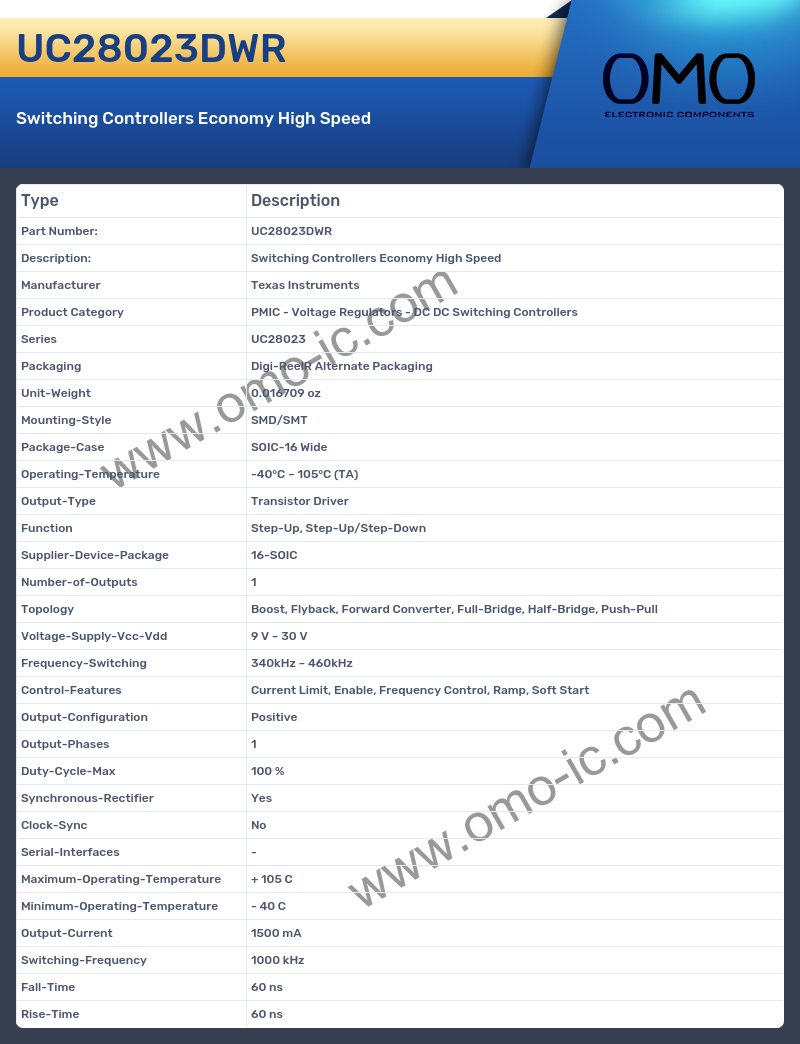

UC28023DWR Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Controllers
• Series UC28023
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.016709 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-16 Wide
• Operating-Temperature -40°C ~ 105°C (TA)
• Output-Type Transistor Driver
• Function Step-Up, Step-Up/Step-Down
• Supplier-Device-Package 16-SOIC
• Number-of-Outputs 1
• Topology Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull
• Voltage-Supply-Vcc-Vdd 9 V ~ 30 V
• Frequency-Switching 340kHz ~ 460kHz
• Control-Features Current Limit, Enable, Frequency Control, Ramp, Soft Start
• Output-Configuration Positive
• Output-Phases 1
• Duty-Cycle-Max 100 %
• Synchronous-Rectifier Yes
• Clock-Sync No
• Serial-Interfaces -
• Maximum-Operating-Temperature + 105 C
• Minimum-Operating-Temperature - 40 C
• Output-Current 1500 mA
• Switching-Frequency 1000 kHz
• Fall-Time 60 ns
• Rise-Time 60 ns
