TS5L100DBQR

TS5L100DBQR Overview

Product belongs to the TS5L100 series. This product is categorized as LAN Switches Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.002628 oz SMD/SMT Mounting-Style SSOP-16 Operational temperature range: 0°C ~ 70°C Surface Mount mounting type Product function is Ethernet Switch. Supplier device package: 16-SSOP - is 8. Voltage supply source: Analog and digital Single Supply Configuration 4 x SPDT Circuit type: 4 x SPDT 19 Ohm maximum on-state resistance Voltage supply range: 6 V ~ 6.5 V This product has a 3μA of 200μA. The - 350 MHz bandwidth Maximum operating temperature of + 70 C Minimum operating temperature: 0 C This product operates at a 6 V to 6.5 V supply voltage for reliable performance. Maximum supply current: 3 uA Maximum supply voltage of 6.5 V Minimum supply voltage is 6 V Max on-resistance of 19 Ohms Maximum off time: 4 ns 4 Switch switch functionality Maximum on-time: 7 ns

TS5L100DBQR Image

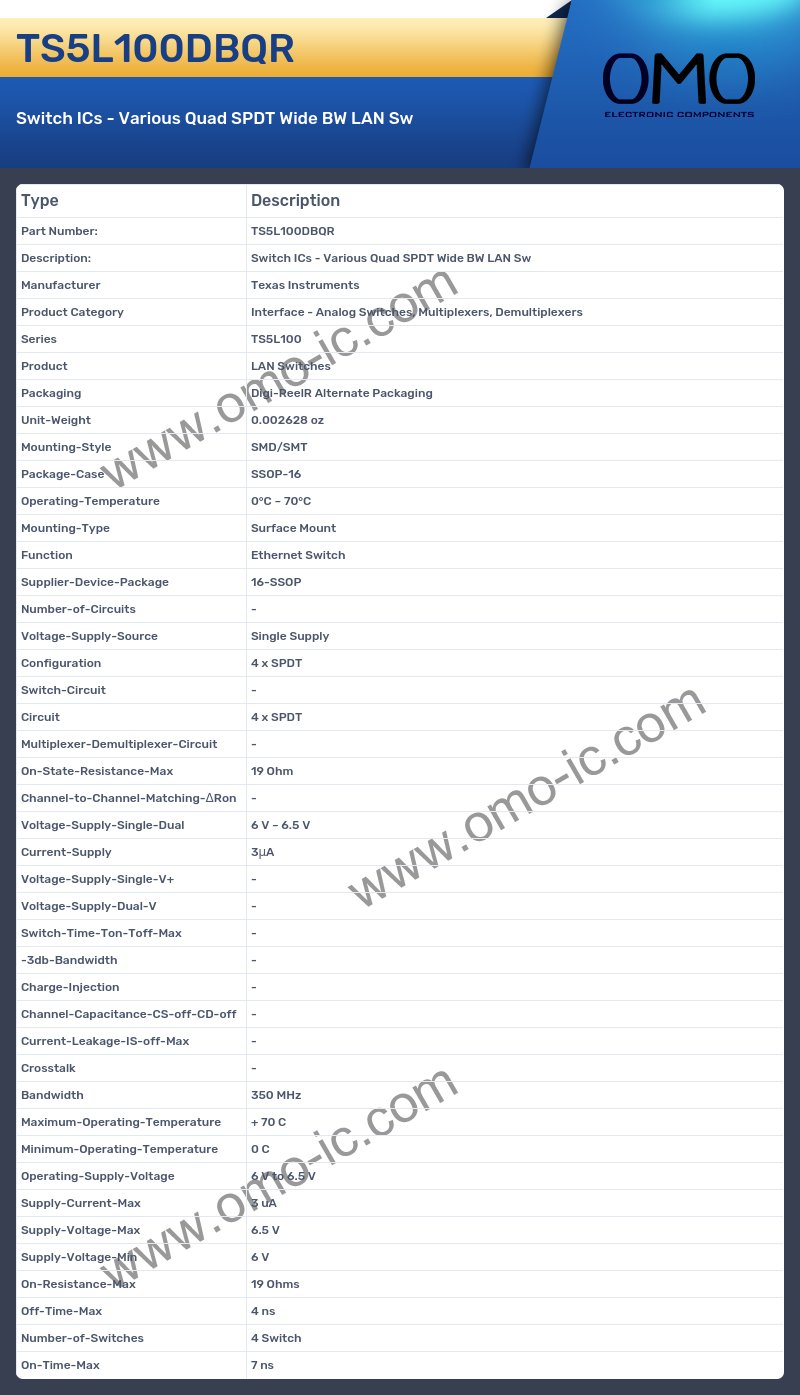

TS5L100DBQR Specifications

• Manufacturer Texas Instruments
• Product Category Interface - Analog Switches, Multiplexers, Demultiplexers
• Series TS5L100
• Product LAN Switches
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.002628 oz
• Mounting-Style SMD/SMT
• Package-Case SSOP-16
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type Surface Mount
• Function Ethernet Switch
• Supplier-Device-Package 16-SSOP
• Number-of-Circuits -
• Voltage-Supply-Source Single Supply
• Configuration 4 x SPDT
• Switch-Circuit -
• Circuit 4 x SPDT
• Multiplexer-Demultiplexer-Circuit -
• On-State-Resistance-Max 19 Ohm
• Channel-to-Channel-Matching-ΔRon -
• Voltage-Supply-Single-Dual 6 V ~ 6.5 V
• Current-Supply 3μA
• Voltage-Supply-Single-V+ -
• Voltage-Supply-Dual-V -
• Switch-Time-Ton-Toff-Max -
• -3db-Bandwidth -
• Charge-Injection -
• Channel-Capacitance-CS-off-CD-off -
• Current-Leakage-IS-off-Max -
• Crosstalk -
• Bandwidth 350 MHz
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Voltage 6 V to 6.5 V
• Supply-Current-Max 3 uA
• Supply-Voltage-Max 6.5 V
• Supply-Voltage-Min 6 V
• On-Resistance-Max 19 Ohms
• Off-Time-Max 4 ns
• Number-of-Switches 4 Switch
• On-Time-Max 7 ns
