TS556CN

TS556CN Overview

Product belongs to the TS556 series. Type: 555 Type, Timer/Oscillator (Dual) Tube is the packaging method for this product Weight of 0.057144 oz Through Hole Mounting-Style PDIP-14 This product's 2.7MHz range is 0Hz to 2.2GHz. Operational temperature range: 0°C ~ 70°C Through Hole mounting type Voltage Supply Range: 2 V ~ 16 V Supplier device package: 14-DIP This product has a 130μA of 200μA. Power-off control: 1560 mW Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Maximum supply voltage of 16 V Minimum supply voltage is 2 V Maximum propagation delay: 100 ns High-Level-Output-Current of 50 mA - 10 mA low-level output current 2 Timer Internal Timers

TS556CN Image

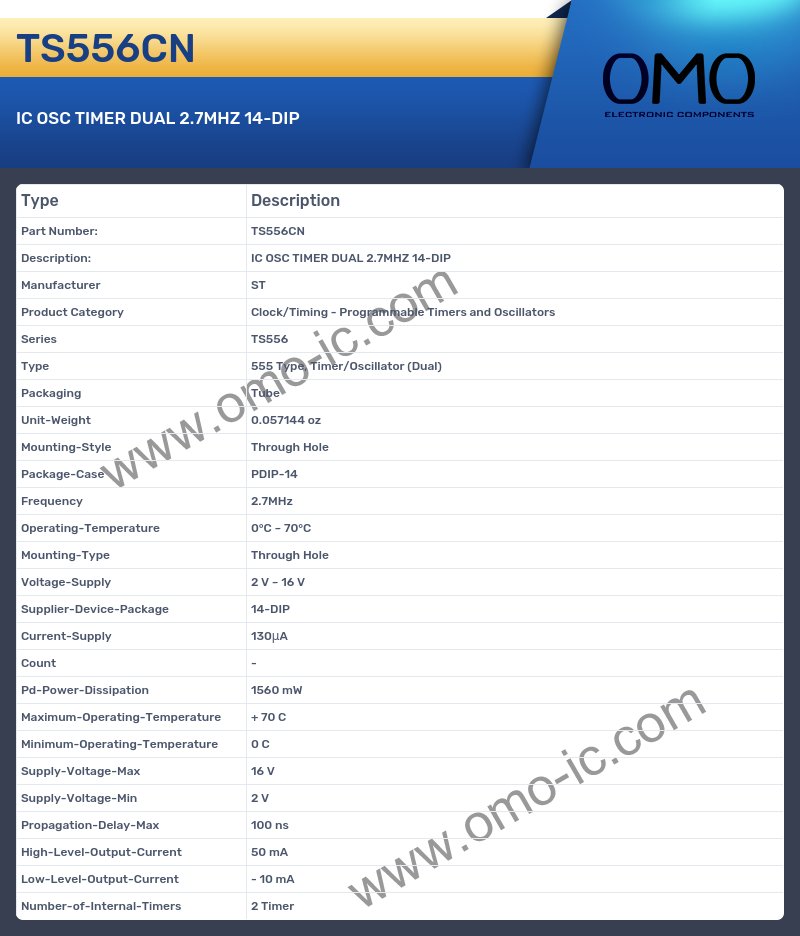

TS556CN Specifications

• Manufacturer ST
• Product Category Clock/Timing - Programmable Timers and Oscillators
• Series TS556
• Type 555 Type, Timer/Oscillator (Dual)
• Packaging Tube
• Unit-Weight 0.057144 oz
• Mounting-Style Through Hole
• Package-Case PDIP-14
• Frequency 2.7MHz
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type Through Hole
• Voltage-Supply 2 V ~ 16 V
• Supplier-Device-Package 14-DIP
• Current-Supply 130μA
• Count -
• Pd-Power-Dissipation 1560 mW
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Supply-Voltage-Max 16 V
• Supply-Voltage-Min 2 V
• Propagation-Delay-Max 100 ns
• High-Level-Output-Current 50 mA
• Low-Level-Output-Current - 10 mA
• Number-of-Internal-Timers 2 Timer
