TS3702IDT

TS3702IDT Overview

Product belongs to the TS3702 series. This product is categorized as Analog Comparators Type: General Purpose Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.017870 oz SMD/SMT Mounting-Style SO-8 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: CMOS, Push-Pull Number of channels: 2 Channel Supplier device package: 8-SO Voltage supply range: 2.7 V ~ 16 V, ±1.35 V ~ 8 V 2 element 25μA maximum quiescent current. Maximum propagation delay: - Hysteresis value of - 1.5 us response time Power-off control: No Shutdown Power-off control: 710 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C 20 uA is 92 nA. Maximum supply voltage of 16 V Minimum supply voltage is 4 V Input bias current of 600 pA The 5 mV. The 300 pA. The Negative Rail to Positive Rail - 1.5 V. 4 mA

TS3702IDT Image

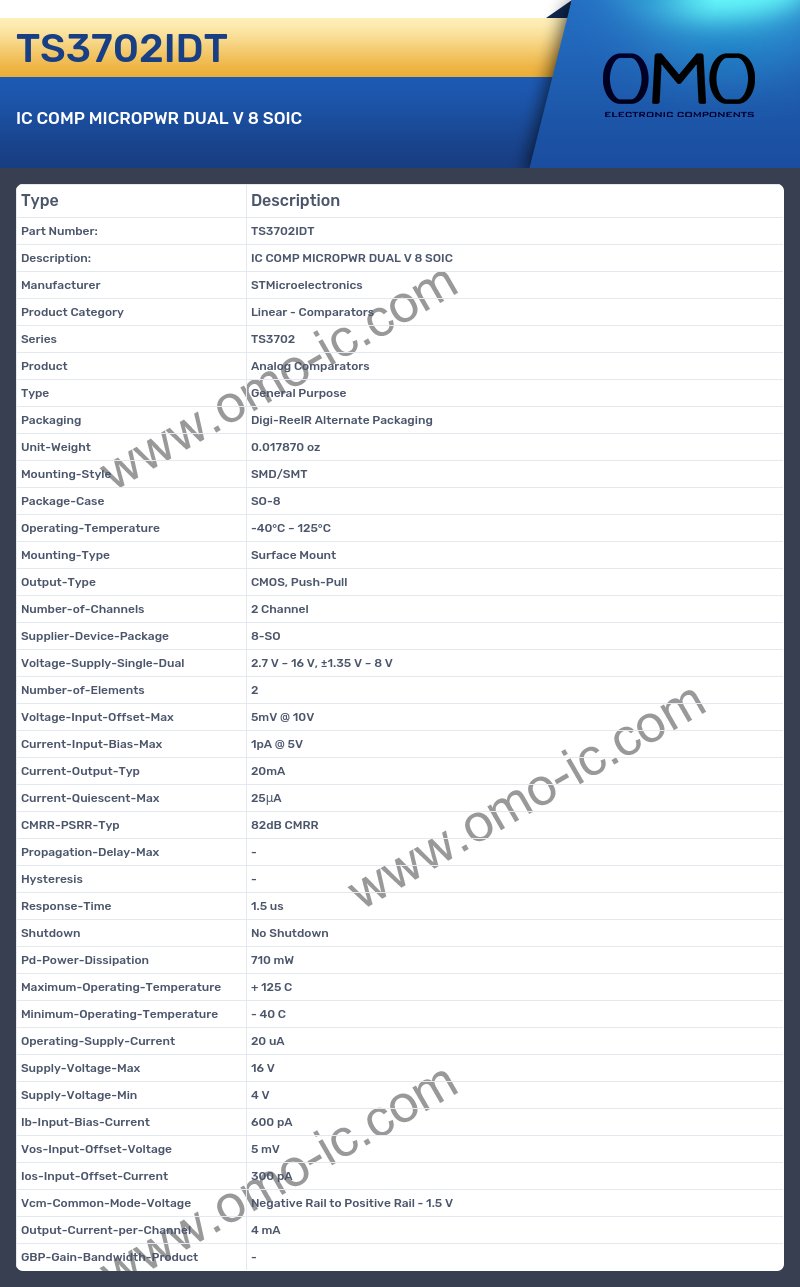

TS3702IDT Specifications

• Manufacturer STMicroelectronics
• Product Category Linear - Comparators
• Series TS3702
• Product Analog Comparators
• Type General Purpose
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.017870 oz
• Mounting-Style SMD/SMT
• Package-Case SO-8
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type CMOS, Push-Pull
• Number-of-Channels 2 Channel
• Supplier-Device-Package 8-SO
• Voltage-Supply-Single-Dual 2.7 V ~ 16 V, ±1.35 V ~ 8 V
• Number-of-Elements 2
• Voltage-Input-Offset-Max 5mV @ 10V
• Current-Input-Bias-Max 1pA @ 5V
• Current-Output-Typ 20mA
• Current-Quiescent-Max 25μA
• CMRR-PSRR-Typ 82dB CMRR
• Propagation-Delay-Max -
• Hysteresis -
• Response-Time 1.5 us
• Shutdown No Shutdown
• Pd-Power-Dissipation 710 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 20 uA
• Supply-Voltage-Max 16 V
• Supply-Voltage-Min 4 V
• Ib-Input-Bias-Current 600 pA
• Vos-Input-Offset-Voltage 5 mV
• Ios-Input-Offset-Current 300 pA
• Vcm-Common-Mode-Voltage Negative Rail to Positive Rail - 1.5 V
• Output-Current-per-Channel 4 mA
• GBP-Gain-Bandwidth-Product -
