TPS76730QD

TPS76730QD Overview

Product belongs to the TPS76730 series. Alternate Packaging is the packaging method for this product Weight of 0.002677 oz SMD/SMT Mounting-Style SOIC-8 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Fixed Supplier device package: 8-SOIC Up to 10V voltage input Number-of-Outputs: 1 Output Output voltage: 3V Positive Fixed regulator topology The product has 1 of 1. Power-off control: 0.904 W Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 3 V Maximum Input Voltage: 10 V Output current: 1 A The product's + 2.7 V is 5.1 V. Load regulation is 3 mV. The voltage regulation accuracy of this product is 2 %. Input bias current of 85 uA This product has a 125 uA of 7 mA, making it ideal for low-power applications. The 0.45 V at 1 A. The maximum 675 mV at 1 A is 360 mV. This product's 0.01 % / V is 0.01 %/V.

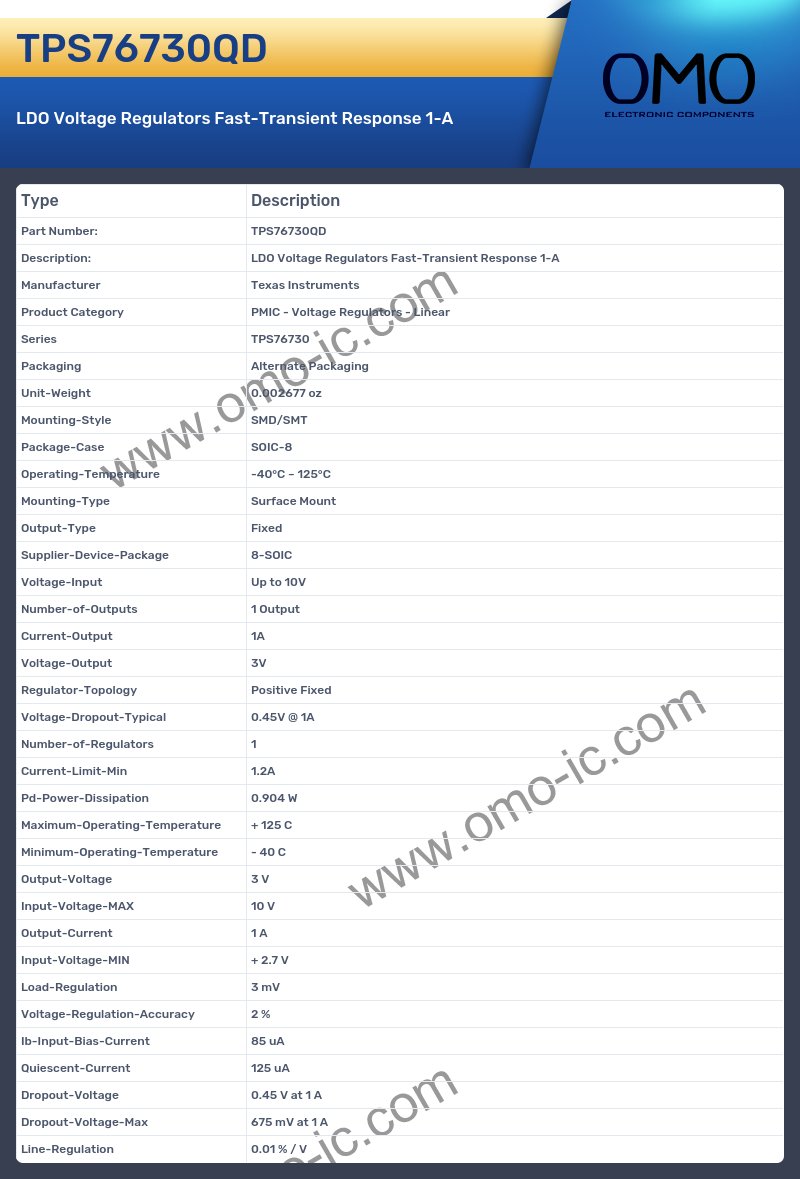

TPS76730QD Image

TPS76730QD Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - Linear
• Series TPS76730
• Packaging Alternate Packaging
• Unit-Weight 0.002677 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-8
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package 8-SOIC
• Voltage-Input Up to 10V
• Number-of-Outputs 1 Output
• Current-Output 1A
• Voltage-Output 3V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical 0.45V @ 1A
• Number-of-Regulators 1
• Current-Limit-Min 1.2A
• Pd-Power-Dissipation 0.904 W
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 3 V
• Input-Voltage-MAX 10 V
• Output-Current 1 A
• Input-Voltage-MIN + 2.7 V
• Load-Regulation 3 mV
• Voltage-Regulation-Accuracy 2 %
• Ib-Input-Bias-Current 85 uA
• Quiescent-Current 125 uA
• Dropout-Voltage 0.45 V at 1 A
• Dropout-Voltage-Max 675 mV at 1 A
• Line-Regulation 0.01 % / V
