TPS74301RGWT

TPS74301RGWT Overview

Product belongs to the TPS74301 series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.002469 oz SMD/SMT Mounting-Style VQFN-20 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Adjustable Supplier device package: 20-VQFN (5x5) 0.8 V ~ 5.5 V voltage input Number-of-Outputs: 1 Output Output voltage: 0.8 V ~ 3.6 V Positive Adjustable regulator topology The product has 1 of 1. Power-off control: 2.74 W Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 796 mV to 3.6 V Maximum Input Voltage: 5.5 V Output current: 1.5 A The product's + 0.8 V is 5.1 V. Load regulation is 0.04 % / A. The voltage regulation accuracy of this product is 1 %. The TPS74301EVM-118. Input bias current of 2 mA Reference voltage is 0.804 V . The 0.055 V at 1.5 A. The maximum 100 mV at 1.5 A is 360 mV. This product's 0.0005 % / V is 0.01 %/V.

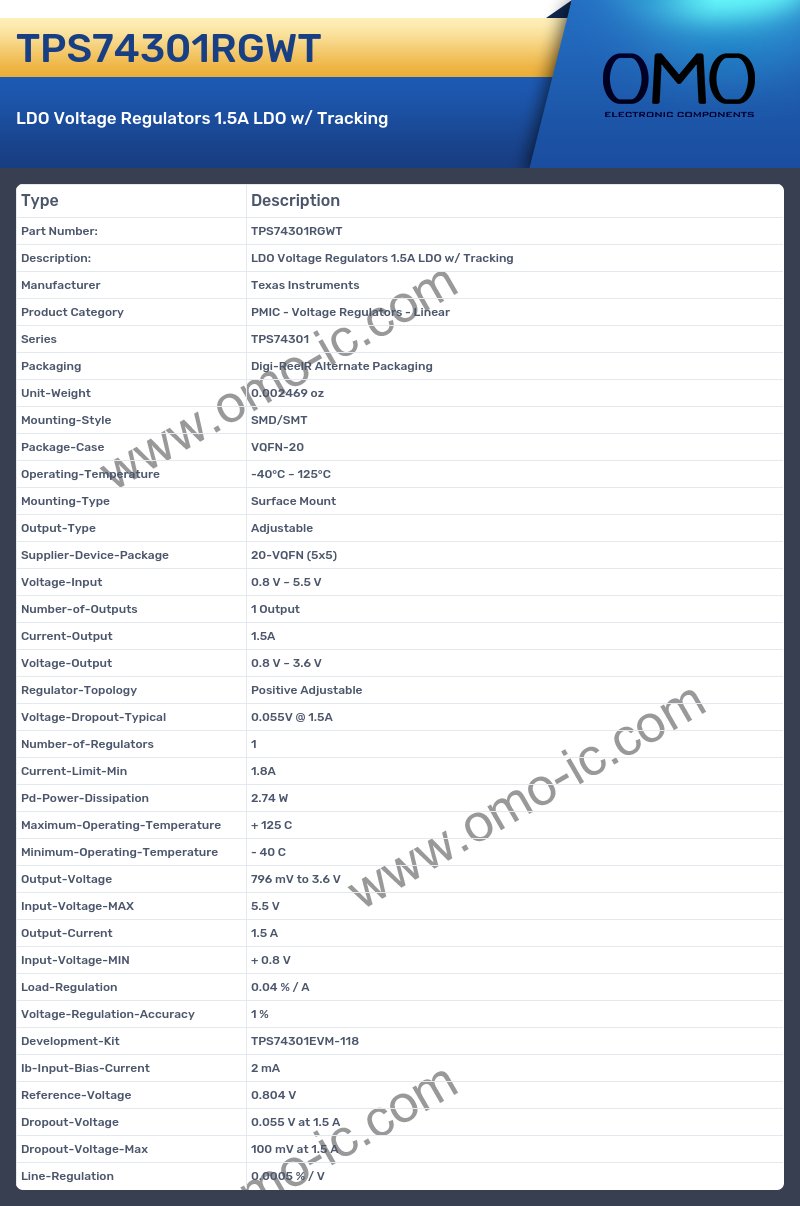

TPS74301RGWT Image

TPS74301RGWT Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - Linear
• Series TPS74301
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.002469 oz
• Mounting-Style SMD/SMT
• Package-Case VQFN-20
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Adjustable
• Supplier-Device-Package 20-VQFN (5x5)
• Voltage-Input 0.8 V ~ 5.5 V
• Number-of-Outputs 1 Output
• Current-Output 1.5A
• Voltage-Output 0.8 V ~ 3.6 V
• Regulator-Topology Positive Adjustable
• Voltage-Dropout-Typical 0.055V @ 1.5A
• Number-of-Regulators 1
• Current-Limit-Min 1.8A
• Pd-Power-Dissipation 2.74 W
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 796 mV to 3.6 V
• Input-Voltage-MAX 5.5 V
• Output-Current 1.5 A
• Input-Voltage-MIN + 0.8 V
• Load-Regulation 0.04 % / A
• Voltage-Regulation-Accuracy 1 %
• Development-Kit TPS74301EVM-118
• Ib-Input-Bias-Current 2 mA
• Reference-Voltage 0.804 V
• Dropout-Voltage 0.055 V at 1.5 A
• Dropout-Voltage-Max 100 mV at 1.5 A
• Line-Regulation 0.0005 % / V
