TPS72218DBVT

TPS72218DBVT Overview

Product belongs to the TPS72218 series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.000557 oz SMD/SMT Mounting-Style SOT-23-5 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Fixed Supplier device package: SOT-23-5 Up to 5.5V voltage input Number-of-Outputs: 1 Output Output voltage: 1.8V Positive Fixed regulator topology The product has 1 of 1. Power-off control: 555 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 1.8 V Maximum Input Voltage: 5.5 V Output current: 50 mA The product's 1.8 V is 5.1 V. Load regulation is 0.2 mV. The voltage regulation accuracy of this product is 3 %. Input bias current of 85 uA This product has a 120 uA of 7 mA, making it ideal for low-power applications. Reference voltage is 1.225 V . The 0.05 V at 50 mA. The maximum 50 mV is 360 mV. This product's 0.09 % / V is 0.01 %/V. The product's 48 dB is -20 dB.

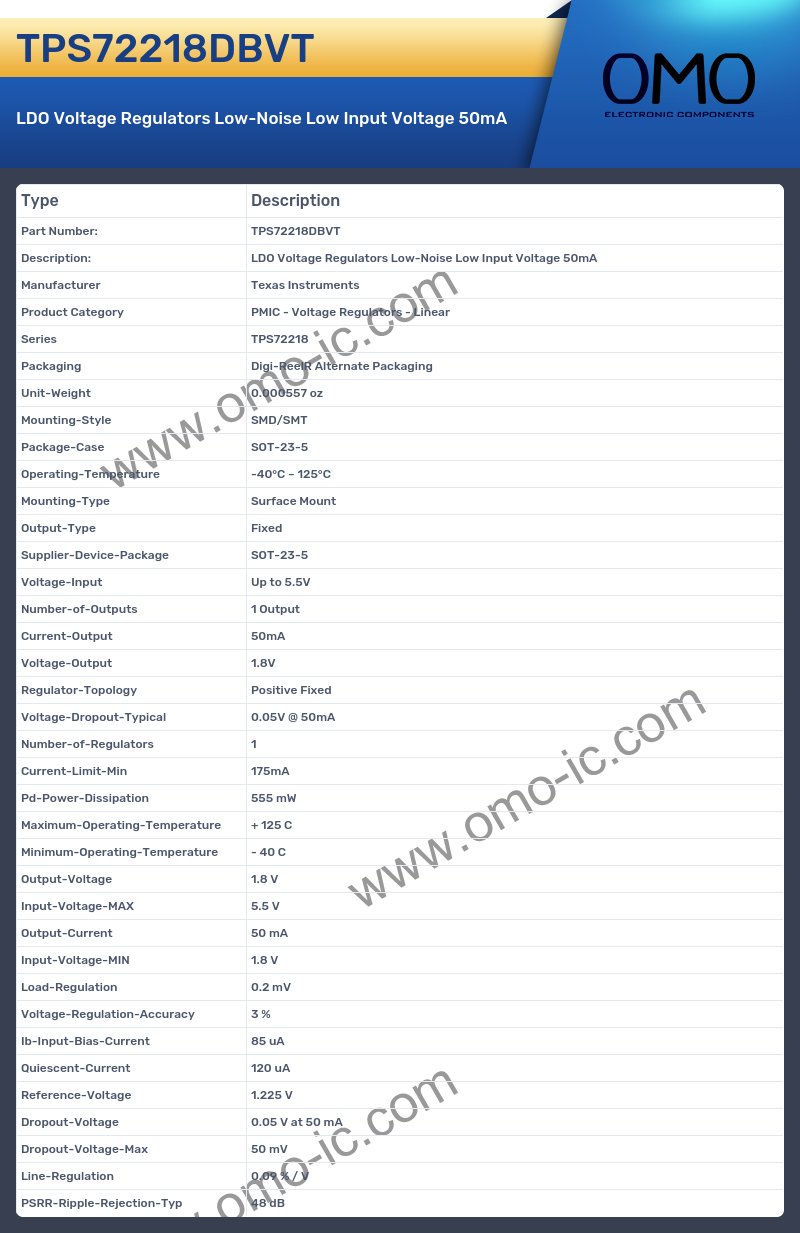

TPS72218DBVT Image

TPS72218DBVT Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - Linear
• Series TPS72218
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.000557 oz
• Mounting-Style SMD/SMT
• Package-Case SOT-23-5
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package SOT-23-5
• Voltage-Input Up to 5.5V
• Number-of-Outputs 1 Output
• Current-Output 50mA
• Voltage-Output 1.8V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical 0.05V @ 50mA
• Number-of-Regulators 1
• Current-Limit-Min 175mA
• Pd-Power-Dissipation 555 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 1.8 V
• Input-Voltage-MAX 5.5 V
• Output-Current 50 mA
• Input-Voltage-MIN 1.8 V
• Load-Regulation 0.2 mV
• Voltage-Regulation-Accuracy 3 %
• Ib-Input-Bias-Current 85 uA
• Quiescent-Current 120 uA
• Reference-Voltage 1.225 V
• Dropout-Voltage 0.05 V at 50 mA
• Dropout-Voltage-Max 50 mV
• Line-Regulation 0.09 % / V
• PSRR-Ripple-Rejection-Typ 48 dB
