TPS563209DDCR

TPS563209DDCR Overview

Product belongs to the D-CAP2 series. Digi-ReelR Alternate Packaging is the packaging method for this product SOT-23-6 Thin, TSOT-23-6 Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Output-Type: Adjustable Product function is Step-Down. Supplier device package: 6-SOT Number-of-Outputs: 1 Topology: Buck feedback This product features 'Frequency-Switching' at 650kHz for optimal performance. The Positive. Minimum fixed output voltage is 0.76V . The value of Yes is included as a product attribute. The minimum input voltage is 4.5V. The 17V.

TPS563209DDCR Image

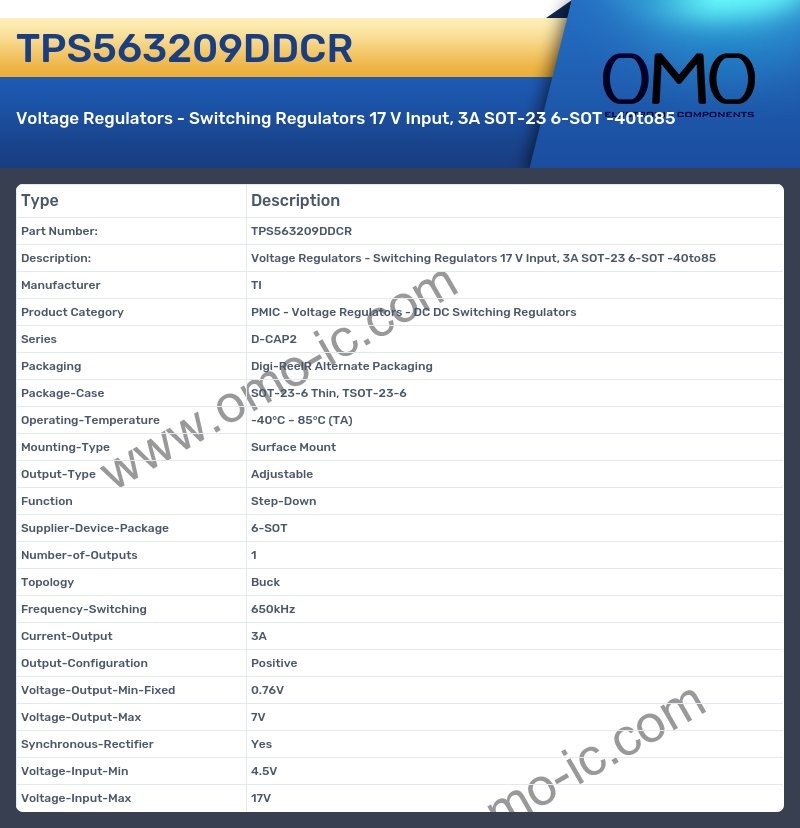

TPS563209DDCR Specifications

• Manufacturer TI
• Product Category PMIC - Voltage Regulators - DC DC Switching Regulators
• Series D-CAP2
• Packaging Digi-ReelR Alternate Packaging
• Package-Case SOT-23-6 Thin, TSOT-23-6
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Surface Mount
• Output-Type Adjustable
• Function Step-Down
• Supplier-Device-Package 6-SOT
• Number-of-Outputs 1
• Topology Buck
• Frequency-Switching 650kHz
• Current-Output 3A
• Output-Configuration Positive
• Voltage-Output-Min-Fixed 0.76V
• Voltage-Output-Max 7V
• Synchronous-Rectifier Yes
• Voltage-Input-Min 4.5V
• Voltage-Input-Max 17V
