TPS560200DBVR

TPS560200DBVR Overview

Product belongs to the SWIFT, D-CAP2, Eco-Mode series. Type: Voltage Converter Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.000459 oz SMD/SMT Mounting-Style Trade name: SWIFT. Wide - 40 C to + 125 C operating temperature range for diverse applications SOT-23-5 Operational temperature range: -40°C ~ 125°C (TJ) Surface Mount mounting type Output-Type: Adjustable Product function is Step-Down. Supplier device package: SOT-23-5 Number-of-Outputs: 1 Topology: Buck feedback This product features 'Frequency-Switching' at 600kHz for optimal performance. The Positive. Minimum fixed output voltage is 0.8V . The value of Yes is included as a product attribute. The minimum input voltage is 4.5V. The 17V. Power-off control: Shutdown Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 0.8 V to 6.5 V 60 uA is 92 nA. Input Voltage Range: 4.5 V to 17 V Maximum Input Voltage: 17 V Output current: 500 mA Switching frequency is 600 kHz The product's 4.5 V is 5.1 V. Minimum supply voltage is 4.5 V

TPS560200DBVR Image

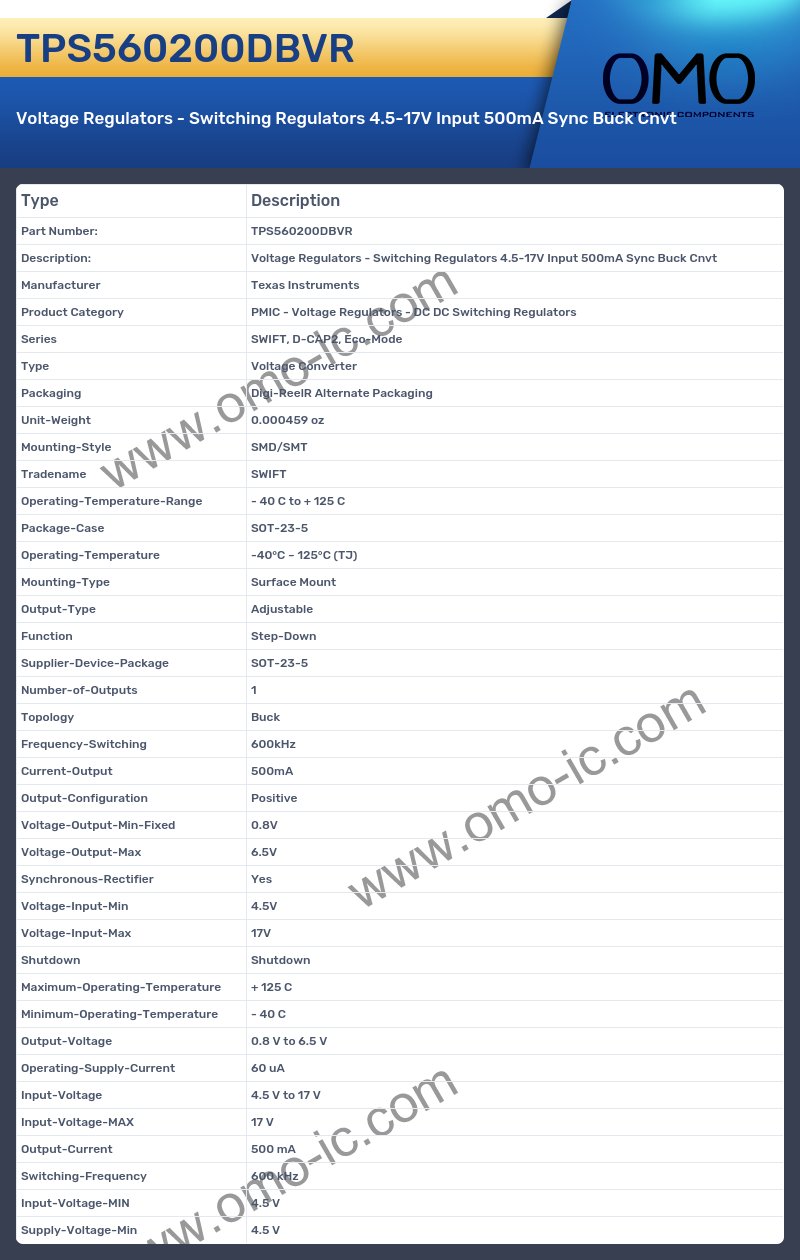

TPS560200DBVR Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Regulators
• Series SWIFT, D-CAP2, Eco-Mode
• Type Voltage Converter
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.000459 oz
• Mounting-Style SMD/SMT
• Tradename SWIFT
• Operating-Temperature-Range - 40 C to + 125 C
• Package-Case SOT-23-5
• Operating-Temperature -40°C ~ 125°C (TJ)
• Mounting-Type Surface Mount
• Output-Type Adjustable
• Function Step-Down
• Supplier-Device-Package SOT-23-5
• Number-of-Outputs 1
• Topology Buck
• Frequency-Switching 600kHz
• Current-Output 500mA
• Output-Configuration Positive
• Voltage-Output-Min-Fixed 0.8V
• Voltage-Output-Max 6.5V
• Synchronous-Rectifier Yes
• Voltage-Input-Min 4.5V
• Voltage-Input-Max 17V
• Shutdown Shutdown
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 0.8 V to 6.5 V
• Operating-Supply-Current 60 uA
• Input-Voltage 4.5 V to 17 V
• Input-Voltage-MAX 17 V
• Output-Current 500 mA
• Switching-Frequency 600 kHz
• Input-Voltage-MIN 4.5 V
• Supply-Voltage-Min 4.5 V
