TPS54494RSAT

TPS54494RSAT Overview

Product belongs to the D-CAP2, Eco-Mode series. Type: Step Down Converter Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.001623 oz SMD/SMT Mounting-Style Wide - 40 C to + 85 C operating temperature range for diverse applications VQFN-16 Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Output-Type: Adjustable Product function is Step-Down. Supplier device package: 16-QFN (4x4) Number-of-Outputs: 2 Topology: Buck feedback This product features 'Frequency-Switching' at 700kHz for optimal performance. The Positive. Minimum fixed output voltage is 0.76V . The value of Yes is included as a product attribute. The minimum input voltage is 4.5V. The 18V. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Output voltage: 0.76 V to 7 V Input Voltage Range: 4.5 V to 18 V Maximum Input Voltage: 18 V Output current: 2 A 4 A Switching frequency is 700 kHz The product's 4.5 V is 5.1 V. Minimum supply voltage is 4.5 V

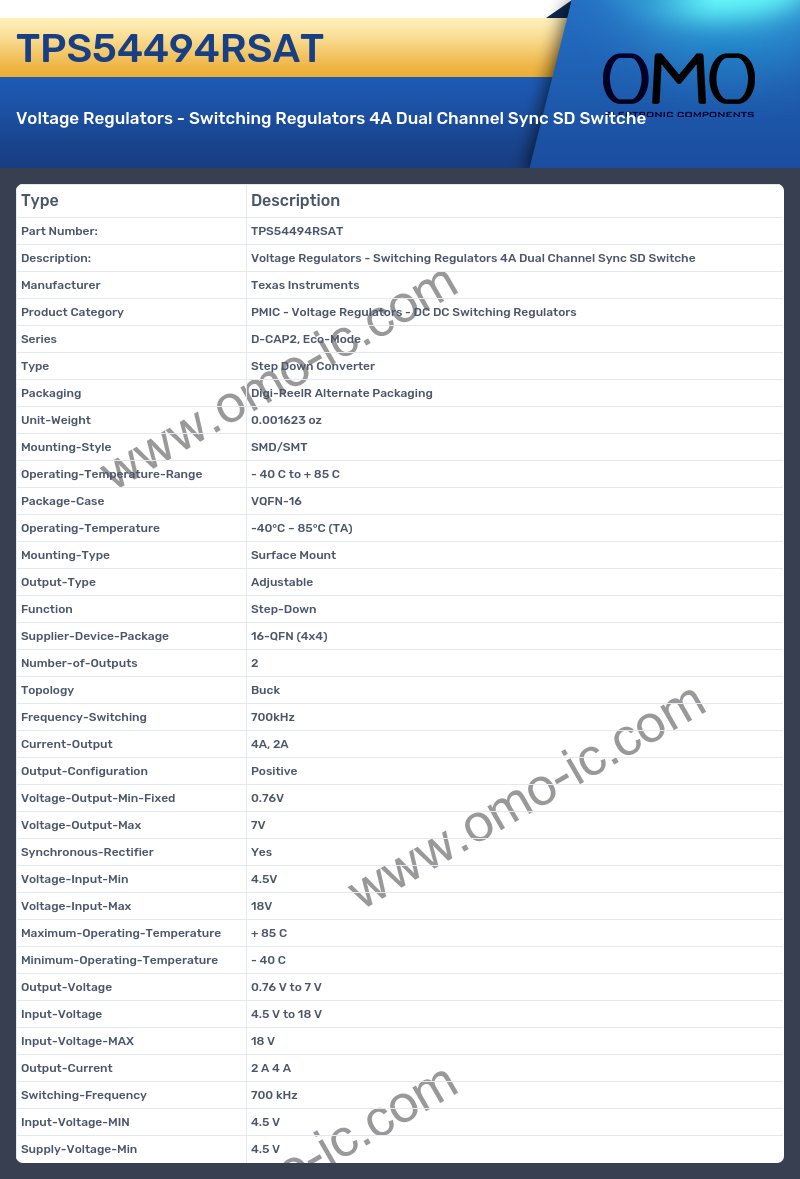

TPS54494RSAT Image

TPS54494RSAT Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Regulators
• Series D-CAP2, Eco-Mode
• Type Step Down Converter
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.001623 oz
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 40 C to + 85 C
• Package-Case VQFN-16
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Surface Mount
• Output-Type Adjustable
• Function Step-Down
• Supplier-Device-Package 16-QFN (4x4)
• Number-of-Outputs 2
• Topology Buck
• Frequency-Switching 700kHz
• Current-Output 4A, 2A
• Output-Configuration Positive
• Voltage-Output-Min-Fixed 0.76V
• Voltage-Output-Max 7V
• Synchronous-Rectifier Yes
• Voltage-Input-Min 4.5V
• Voltage-Input-Max 18V
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 0.76 V to 7 V
• Input-Voltage 4.5 V to 18 V
• Input-Voltage-MAX 18 V
• Output-Current 2 A 4 A
• Switching-Frequency 700 kHz
• Input-Voltage-MIN 4.5 V
• Supply-Voltage-Min 4.5 V
