TPS54291PWP

TPS54291PWP Overview

Product belongs to the TPS54291 series. Type: Voltage Converter Tube Alternate Packaging is the packaging method for this product Weight of 0.002212 oz SMD/SMT Mounting-Style Wide - 40 C to + 145 C operating temperature range for diverse applications HTSSOP-16 Operational temperature range: -40°C ~ 125°C (TA) Surface Mount mounting type Output-Type: Adjustable Product function is Step-Down. Supplier device package: 16-HTSSOP Number-of-Outputs: 2 Topology: Buck feedback This product features 'Frequency-Switching' at 600kHz for optimal performance. The Positive. Minimum fixed output voltage is 0.8V . The value of Yes is included as a product attribute. The minimum input voltage is 4.5V. The 18V. Maximum operating temperature of + 145 C Minimum operating temperature: - 40 C Output voltage: 0.8 V to 15.3 V Input Voltage Range: 4.5 V to 18 V Maximum Input Voltage: 18 V Output current: 1.5 A 2.5 A Switching frequency is 600 kHz The product's 4.5 V is 5.1 V. Load regulation is 1 %. The TPS54291EVM-431.

TPS54291PWP Image

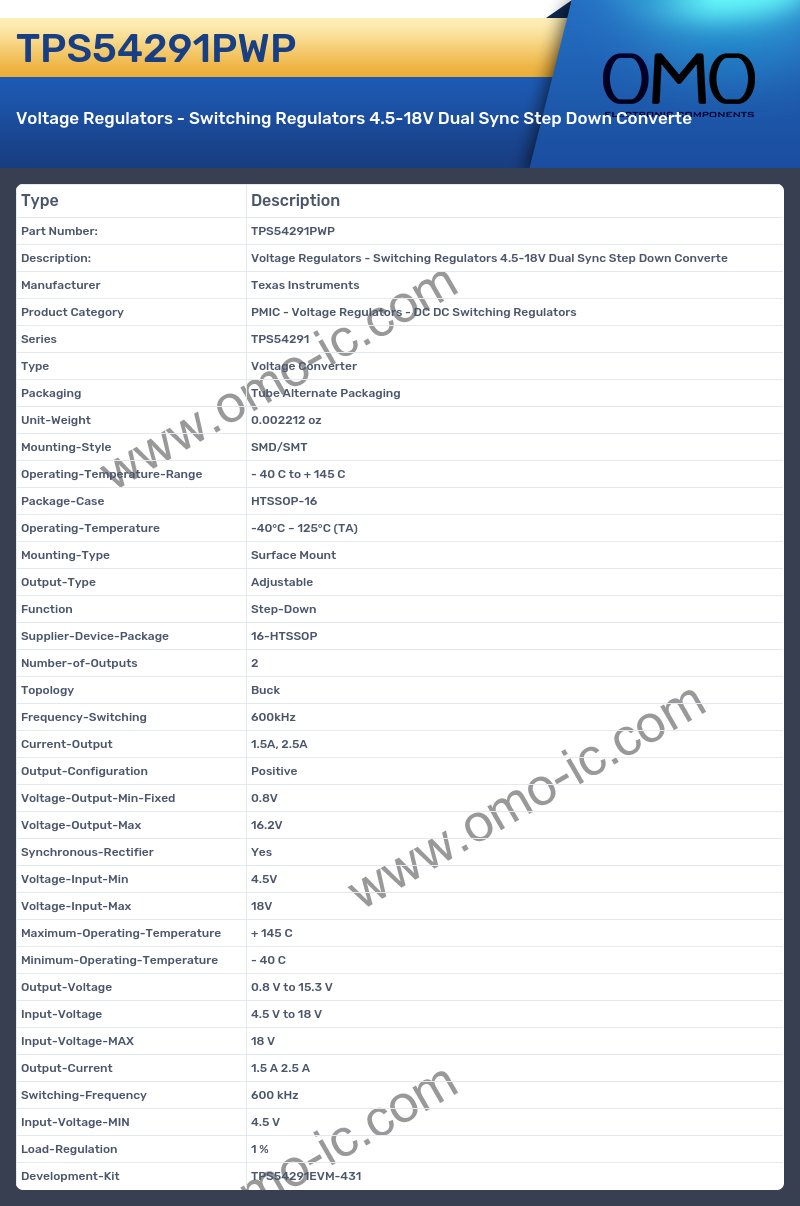

TPS54291PWP Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Regulators
• Series TPS54291
• Type Voltage Converter
• Packaging Tube Alternate Packaging
• Unit-Weight 0.002212 oz
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 40 C to + 145 C
• Package-Case HTSSOP-16
• Operating-Temperature -40°C ~ 125°C (TA)
• Mounting-Type Surface Mount
• Output-Type Adjustable
• Function Step-Down
• Supplier-Device-Package 16-HTSSOP
• Number-of-Outputs 2
• Topology Buck
• Frequency-Switching 600kHz
• Current-Output 1.5A, 2.5A
• Output-Configuration Positive
• Voltage-Output-Min-Fixed 0.8V
• Voltage-Output-Max 16.2V
• Synchronous-Rectifier Yes
• Voltage-Input-Min 4.5V
• Voltage-Input-Max 18V
• Maximum-Operating-Temperature + 145 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 0.8 V to 15.3 V
• Input-Voltage 4.5 V to 18 V
• Input-Voltage-MAX 18 V
• Output-Current 1.5 A 2.5 A
• Switching-Frequency 600 kHz
• Input-Voltage-MIN 4.5 V
• Load-Regulation 1 %
• Development-Kit TPS54291EVM-431
