TPS40100RGER

TPS40100RGER Overview

Product belongs to the TPS40100 series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.001601 oz SMD/SMT Mounting-Style VQFN-24 Operational temperature range: -40°C ~ 85°C (TA) Output-Type: Transistor Driver Product function is Step-Down. Supplier device package: 24-VQFN (4x4) Number-of-Outputs: 1 Topology: Buck feedback Supply Voltage: 4.5 V ~ 18 V This product features 'Frequency-Switching' at 100kHz ~ 600kHz for optimal performance. The Control-Features include Current Limit, Frequency Control, Power Good, Soft Start, Tracking function. The Positive. Output-Phases: 1 Maximum duty cycle of The value of Yes is included as a product attribute. Yes enabled Serial Interfaces: - Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Output voltage: 0.7 V to 5.5 V Input Voltage Range: 4.5 V to 18 V Output current: 20 A The TPS40100EVM-001.

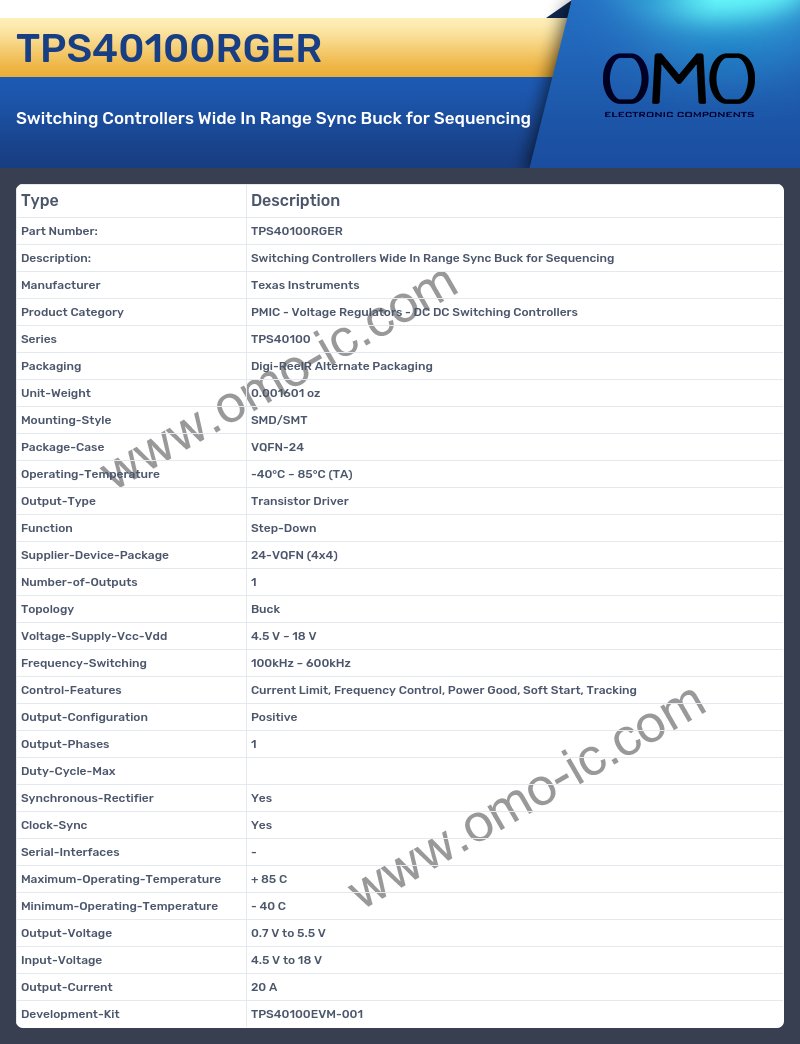

TPS40100RGER Image

TPS40100RGER Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Controllers
• Series TPS40100
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.001601 oz
• Mounting-Style SMD/SMT
• Package-Case VQFN-24
• Operating-Temperature -40°C ~ 85°C (TA)
• Output-Type Transistor Driver
• Function Step-Down
• Supplier-Device-Package 24-VQFN (4x4)
• Number-of-Outputs 1
• Topology Buck
• Voltage-Supply-Vcc-Vdd 4.5 V ~ 18 V
• Frequency-Switching 100kHz ~ 600kHz
• Control-Features Current Limit, Frequency Control, Power Good, Soft Start, Tracking
• Output-Configuration Positive
• Output-Phases 1
• Duty-Cycle-Max
• Synchronous-Rectifier Yes
• Clock-Sync Yes
• Serial-Interfaces -
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 0.7 V to 5.5 V
• Input-Voltage 4.5 V to 18 V
• Output-Current 20 A
• Development-Kit TPS40100EVM-001
