TPS3808G01DBVR

TPS3808G01DBVR Overview

Product belongs to the TPS3808G01 series. Type: Simple Reset/Power-On Reset Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.001270 oz SMD/SMT Mounting-Style SOT-23-6 Operational temperature range: -40°C ~ 125°C (TJ) Surface Mount mounting type Output-Type: Active Low Open Drain Supplier device package: SOT-23-6 The Open Drain or Open Collector. This product's Active Low. Accuracy is rated at 0.5 % . This product has 1 monitored voltages. The reset timeout for this product is Adjustable/Selectable. This product's Adjustable/Selectable. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C 2.4 uA is 92 nA. This product does not have No Backup capability. This product is also known as FX1077 HPA00385DBVR and can be referred to by either part number. Maximum supply voltage of 6.5 V Minimum supply voltage is 1.8 V This product includes No Watchdog This product's 0.405 V is 2.32 V. This product can only 1 Input at a time. This product features a Manual Reset function that allows for manual reset. This product does not support No Chip Enable. This product does not have No capability. The product's 300 ms is 200 ms. The Adjustable is 2.35 V. Adjustable is set to 2.29 V.

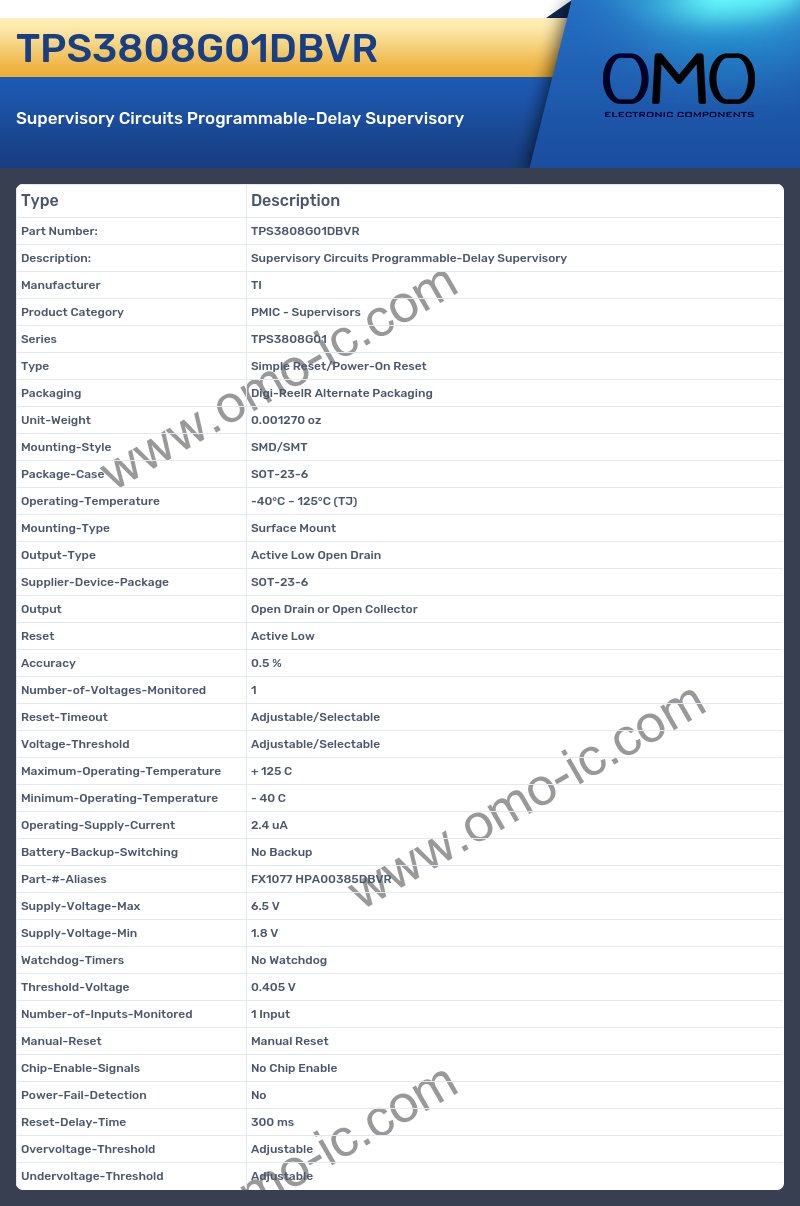

TPS3808G01DBVR Image

TPS3808G01DBVR Specifications

• Manufacturer TI
• Product Category PMIC - Supervisors
• Series TPS3808G01
• Type Simple Reset/Power-On Reset
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.001270 oz
• Mounting-Style SMD/SMT
• Package-Case SOT-23-6
• Operating-Temperature -40°C ~ 125°C (TJ)
• Mounting-Type Surface Mount
• Output-Type Active Low Open Drain
• Supplier-Device-Package SOT-23-6
• Output Open Drain or Open Collector
• Reset Active Low
• Accuracy 0.5 %
• Number-of-Voltages-Monitored 1
• Reset-Timeout Adjustable/Selectable
• Voltage-Threshold Adjustable/Selectable
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 2.4 uA
• Battery-Backup-Switching No Backup
• Part-#-Aliases FX1077 HPA00385DBVR
• Supply-Voltage-Max 6.5 V
• Supply-Voltage-Min 1.8 V
• Watchdog-Timers No Watchdog
• Threshold-Voltage 0.405 V
• Number-of-Inputs-Monitored 1 Input
• Manual-Reset Manual Reset
• Chip-Enable-Signals No Chip Enable
• Power-Fail-Detection No
• Reset-Delay-Time 300 ms
• Overvoltage-Threshold Adjustable
• Undervoltage-Threshold Adjustable
