TPS3803-01DCKR

TPS3803-01DCKR Overview

Product belongs to the TPS3803-01 series. Type: Simple Reset/Power-On Reset Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.000088 oz SMD/SMT Mounting-Style SC-70-5 Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Output-Type: Open Drain Supplier device package: SC-70-5 The Open Drain or Open Collector. This product's Active Low. Accuracy is rated at +/- 1.5 % . This product has 1 monitored voltages. The reset timeout for this product is 5 μs Typical Propagation Delay. This product's Adjustable/Selectable. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C 3 uA is 92 nA. This product does not have No Backup capability. Maximum supply voltage of 6 V Minimum supply voltage is 1.3 V This product includes No Watchdog This product's 1.226 V is 2.32 V. This product can only 1 Input at a time. This product features a No Manual Reset function that allows for manual reset. The product's 5.5 us is 200 ms. Adjustable is set to 2.29 V.

TPS3803-01DCKR Image

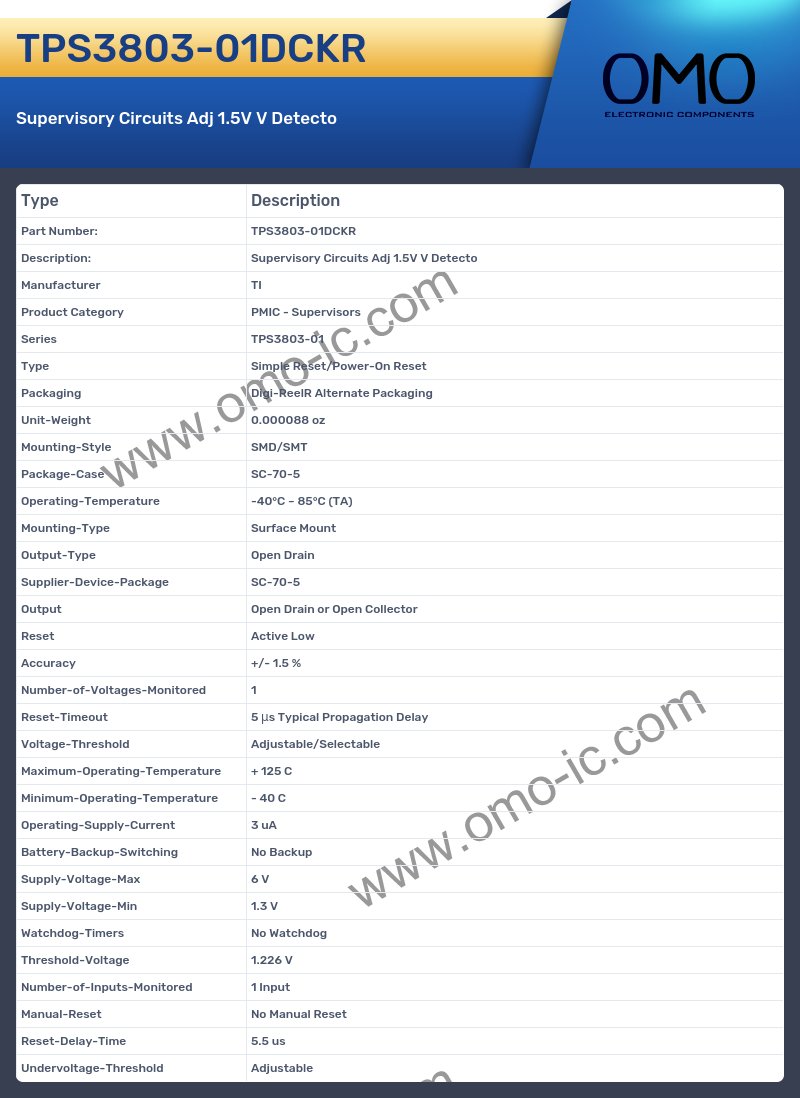

TPS3803-01DCKR Specifications

• Manufacturer TI
• Product Category PMIC - Supervisors
• Series TPS3803-01
• Type Simple Reset/Power-On Reset
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.000088 oz
• Mounting-Style SMD/SMT
• Package-Case SC-70-5
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Surface Mount
• Output-Type Open Drain
• Supplier-Device-Package SC-70-5
• Output Open Drain or Open Collector
• Reset Active Low
• Accuracy +/- 1.5 %
• Number-of-Voltages-Monitored 1
• Reset-Timeout 5 μs Typical Propagation Delay
• Voltage-Threshold Adjustable/Selectable
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 3 uA
• Battery-Backup-Switching No Backup
• Supply-Voltage-Max 6 V
• Supply-Voltage-Min 1.3 V
• Watchdog-Timers No Watchdog
• Threshold-Voltage 1.226 V
• Number-of-Inputs-Monitored 1 Input
• Manual-Reset No Manual Reset
• Reset-Delay-Time 5.5 us
• Undervoltage-Threshold Adjustable
