TPS2557DRBR

TPS2557DRBR Overview

Product belongs to the TPS2557 series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.000847 oz SMD/SMT Mounting-Style VSON-8 The Non-Inverting for this product is CMOS/TTL. Operational temperature range: -40°C ~ 125°C (TJ) Output-Type: N-Channel Interface: On/Off Supplier device package: 8-SON Exposed Pad (3x3) The Ratio-Input:Output for this product is 1899/12/30 1:01:00. Number-of-Outputs: 1 Supply Voltage: Not Required The High Side. The 22 mOhm. Voltage-Load range is 2.5 V ~ 6.5 V. Our product delivers a 5A of 50mA for efficient power management. The Switch-Type is General Purpose. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 2.5 V to 6.5 V supply voltage for reliable performance. Output current: 5 A Maximum supply voltage of 6.5 V Minimum supply voltage is 2.5 V Max on-resistance of 35 mOhms Maximum off time: 6 ms This product's 500 mA to 5 A feature is adjustable. Maximum on-time: 6 ms

TPS2557DRBR Image

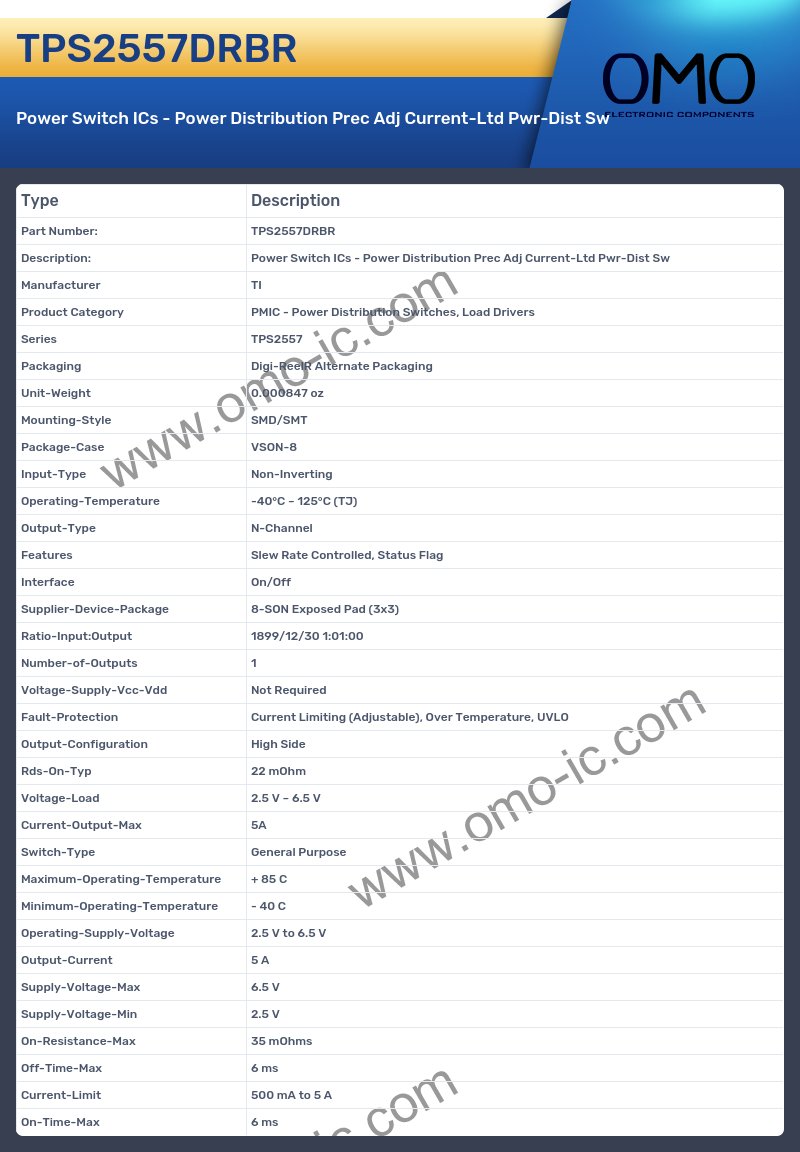

TPS2557DRBR Specifications

• Manufacturer TI
• Product Category PMIC - Power Distribution Switches, Load Drivers
• Series TPS2557
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.000847 oz
• Mounting-Style SMD/SMT
• Package-Case VSON-8
• Input-Type Non-Inverting
• Operating-Temperature -40°C ~ 125°C (TJ)
• Output-Type N-Channel
• Features Slew Rate Controlled, Status Flag
• Interface On/Off
• Supplier-Device-Package 8-SON Exposed Pad (3x3)
• Ratio-Input:Output 1899/12/30 1:01:00
• Number-of-Outputs 1
• Voltage-Supply-Vcc-Vdd Not Required
• Fault-Protection Current Limiting (Adjustable), Over Temperature, UVLO
• Output-Configuration High Side
• Rds-On-Typ 22 mOhm
• Voltage-Load 2.5 V ~ 6.5 V
• Current-Output-Max 5A
• Switch-Type General Purpose
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 2.5 V to 6.5 V
• Output-Current 5 A
• Supply-Voltage-Max 6.5 V
• Supply-Voltage-Min 2.5 V
• On-Resistance-Max 35 mOhms
• Off-Time-Max 6 ms
• Current-Limit 500 mA to 5 A
• On-Time-Max 6 ms
