TPS2223DB

TPS2223DB Overview

Product belongs to the TPS2223 series. This product is categorized as PCMCIA Switches Tube Alternate Packaging is the packaging method for this product Weight of 0.006081 oz SMD/SMT Mounting-Style SSOP-24 The - for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C (TA) Output-Type: - Interface: Serial Supplier device package: 24-SSOP The Ratio-Input:Output for this product is 1899/12/30 3:04:00. Number-of-Outputs: 4 Supply Voltage: Not Required The High Side. The 95 mOhm. Voltage-Load range is 3.3V, 5V. Our product delivers a 1A of 50mA for efficient power management. The Switch-Type is PCMCIA Switch. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Max on-resistance of 85 mOhms

TPS2223DB Image

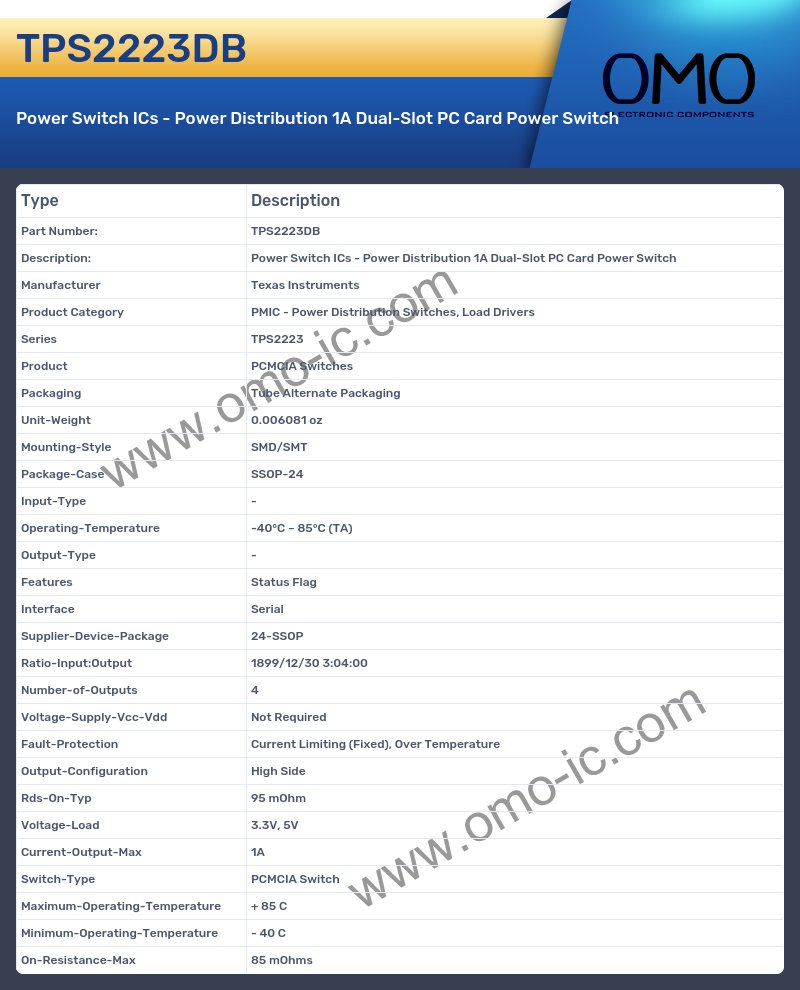

TPS2223DB Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Power Distribution Switches, Load Drivers
• Series TPS2223
• Product PCMCIA Switches
• Packaging Tube Alternate Packaging
• Unit-Weight 0.006081 oz
• Mounting-Style SMD/SMT
• Package-Case SSOP-24
• Input-Type -
• Operating-Temperature -40°C ~ 85°C (TA)
• Output-Type -
• Features Status Flag
• Interface Serial
• Supplier-Device-Package 24-SSOP
• Ratio-Input:Output 1899/12/30 3:04:00
• Number-of-Outputs 4
• Voltage-Supply-Vcc-Vdd Not Required
• Fault-Protection Current Limiting (Fixed), Over Temperature
• Output-Configuration High Side
• Rds-On-Typ 95 mOhm
• Voltage-Load 3.3V, 5V
• Current-Output-Max 1A
• Switch-Type PCMCIA Switch
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• On-Resistance-Max 85 mOhms
