TPS1101D

TPS1101D Overview

Product belongs to the TPS1101 series. Tube is the packaging method for this product Weight of 0.002677 oz SMD/SMT Mounting-Style SOIC-8 Si is the technology used. Number of channels: 1 Channel Configuration Single Quad Drain Triple Source Transistor type: 1 P-Channel Power-off control: 791 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C This product has a 5.5 ns of 16 ns. This product has a 5.5 ns of 16 ns. This product's - 15 V 2 V. The ID of continuous drain current is 2.3 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 15 V. The 90 mOhms for this product is 12 Ohms. The transistor polarity is P-Channel. 'Typical-Turn-Off-Delay-Time' of 19 ns This product has a 6.5 ns. This product operates in Enhancement channel mode for optimal performance.

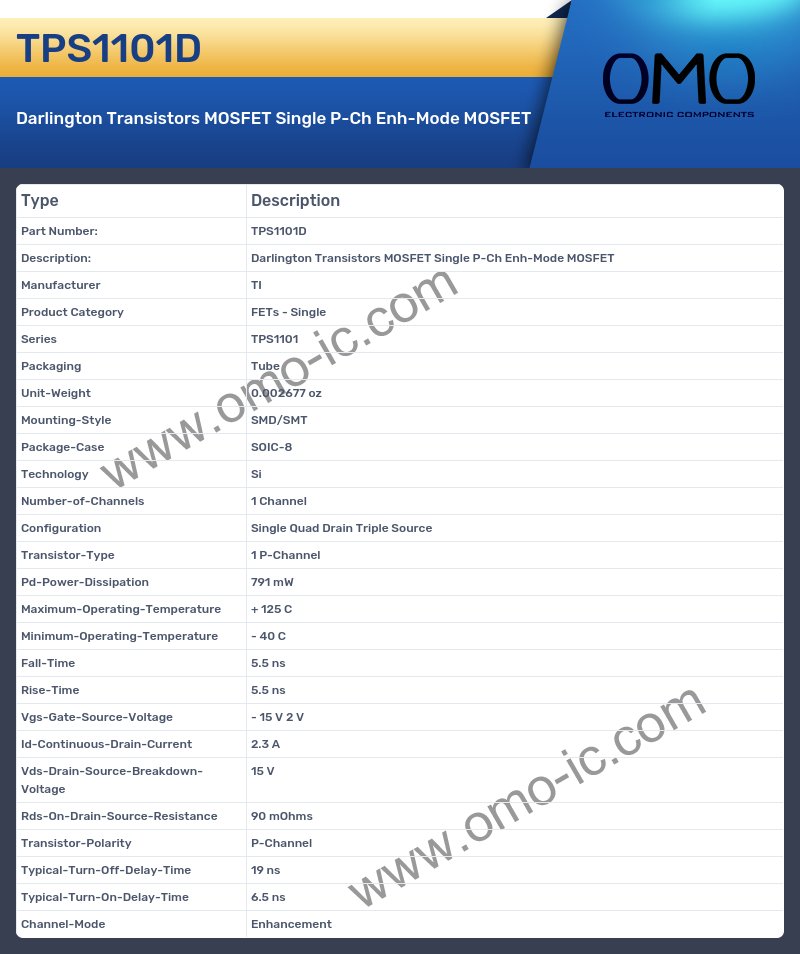

TPS1101D Image

TPS1101D Specifications

• Manufacturer TI
• Product Category FETs - Single
• Series TPS1101
• Packaging Tube
• Unit-Weight 0.002677 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-8
• Technology Si
• Number-of-Channels 1 Channel
• Configuration Single Quad Drain Triple Source
• Transistor-Type 1 P-Channel
• Pd-Power-Dissipation 791 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Fall-Time 5.5 ns
• Rise-Time 5.5 ns
• Vgs-Gate-Source-Voltage - 15 V 2 V
• Id-Continuous-Drain-Current 2.3 A
• Vds-Drain-Source-Breakdown-Voltage 15 V
• Rds-On-Drain-Source-Resistance 90 mOhms
• Transistor-Polarity P-Channel
• Typical-Turn-Off-Delay-Time 19 ns
• Typical-Turn-On-Delay-Time 6.5 ns
• Channel-Mode Enhancement
