TPIC2810DR

TPIC2810DR Overview

Product belongs to the TPIC2810 series. Type: Linear Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.005235 oz SMD/SMT Mounting-Style SOIC-16 This product's 2MHz range is 0Hz to 2.2GHz. Operational temperature range: -40°C ~ 150°C (TJ) Surface Mount mounting type Versatile - applications for maximum usability Supplier device package: 16-SOIC Number-of-Outputs: 8 Current-Output-Channel is 100mA This product has Yes. Topology: Shift Register feedback The maximum voltage supply is 5.5V. The minimum 3V required for voltage supply. Output voltage: 40V Dimming control is done through - communication. Power-off control: 1087 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Input Voltage Range: 3 V to 5.5 V Output current: 100 mA Maximum supply current: 620 uA High-Level-Output-Current of 13 mA 13 mA low-level output current

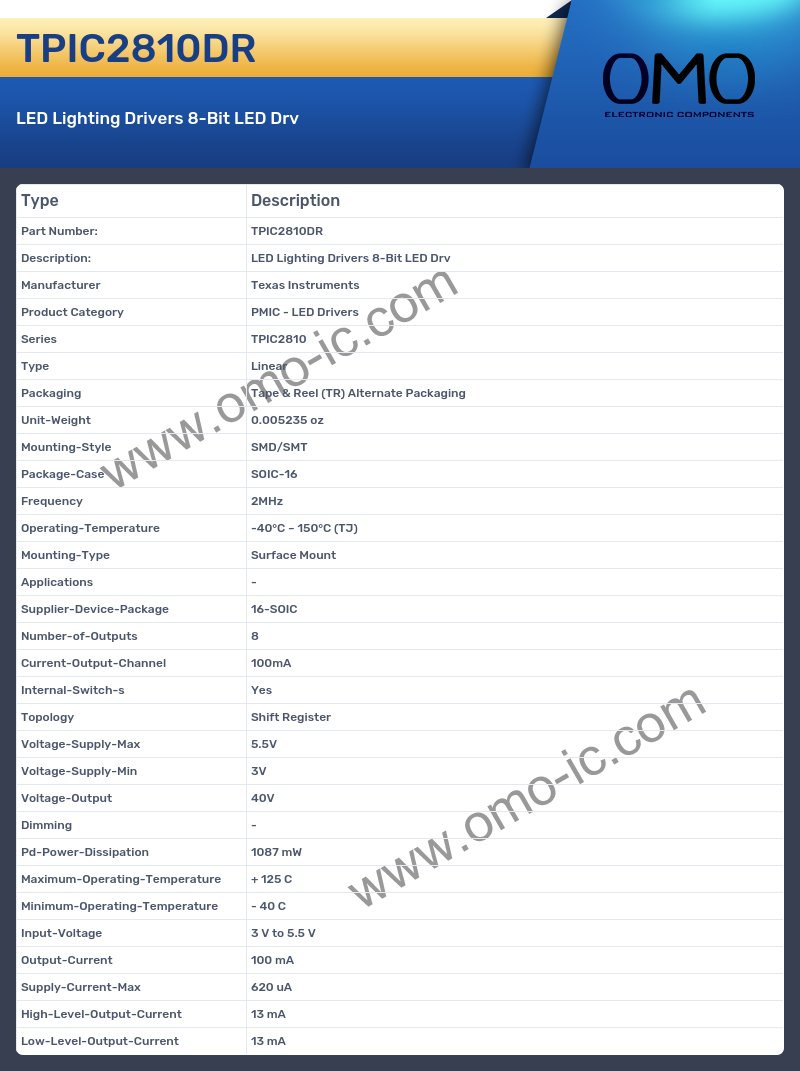

TPIC2810DR Image

TPIC2810DR Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - LED Drivers
• Series TPIC2810
• Type Linear
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.005235 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-16
• Frequency 2MHz
• Operating-Temperature -40°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Applications -
• Supplier-Device-Package 16-SOIC
• Number-of-Outputs 8
• Current-Output-Channel 100mA
• Internal-Switch-s Yes
• Topology Shift Register
• Voltage-Supply-Max 5.5V
• Voltage-Supply-Min 3V
• Voltage-Output 40V
• Dimming -
• Pd-Power-Dissipation 1087 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Input-Voltage 3 V to 5.5 V
• Output-Current 100 mA
• Supply-Current-Max 620 uA
• High-Level-Output-Current 13 mA
• Low-Level-Output-Current 13 mA
