TPD8F003DQDR

TPD8F003DQDR Overview

Product belongs to the TPD series. This product is categorized as EMI Network Filter Arrays Type: Low Pass Digi-ReelR Alternate Packaging is the packaging method for this product This product's Termination-Style is ' SMD/SMT ' for easy integration into your design. Wide - 40 C to + 85 C operating temperature range for diverse applications The Height of the product is 0.031" (0.80mm). 3.3 mm length of the product The 1.35 mm is at most 7.6 mm. WSON-16 The capacitance of this product is 8.5 pF. RC (Pi) is the technology used. Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Frequency Bandwidth: 1 GHz Rated voltage range of - Versatile Data Lines for Mobile Devices applications for maximum usability Number of channels: 8 Filter order is 2nd 16 element This product's circuit type is an RC (Pi) Filter. 25dB @ 1GHz of 10dB for superior noise reduction 100 Ohms Resistance Channel There are two Values: R = 100 Ohms, C = 8.5pF. ESD-Protection": " Yes This product has an -. Resistance: 100 Ohms Frequency range from 200 MHz

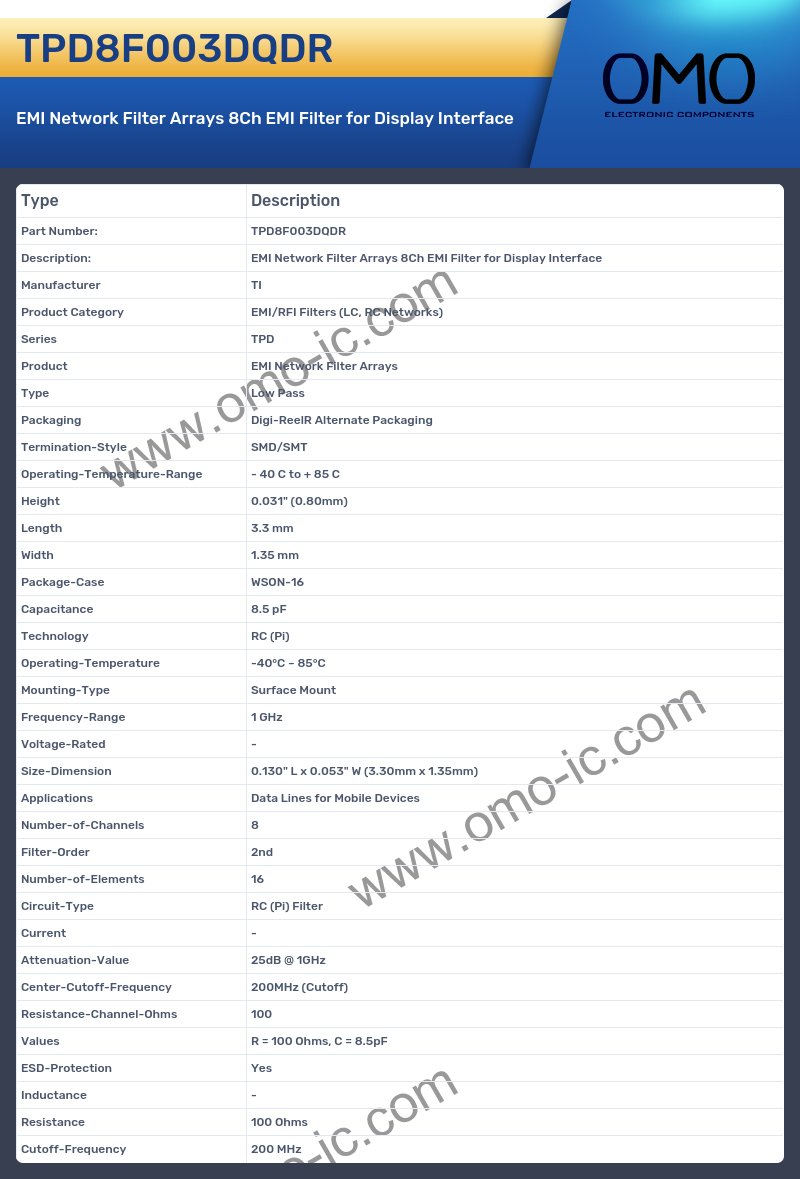

TPD8F003DQDR Image

TPD8F003DQDR Specifications

• Manufacturer TI
• Product Category EMI/RFI Filters (LC, RC Networks)
• Series TPD
• Product EMI Network Filter Arrays
• Type Low Pass
• Packaging Digi-ReelR Alternate Packaging
• Termination-Style SMD/SMT
• Operating-Temperature-Range - 40 C to + 85 C
• Height 0.031" (0.80mm)
• Length 3.3 mm
• Width 1.35 mm
• Package-Case WSON-16
• Capacitance 8.5 pF
• Technology RC (Pi)
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Frequency-Range 1 GHz
• Voltage-Rated -
• Size-Dimension 0.130" L x 0.053" W (3.30mm x 1.35mm)
• Applications Data Lines for Mobile Devices
• Number-of-Channels 8
• Filter-Order 2nd
• Number-of-Elements 16
• Circuit-Type RC (Pi) Filter
• Current -
• Attenuation-Value 25dB @ 1GHz
• Center-Cutoff-Frequency 200MHz (Cutoff)
• Resistance-Channel-Ohms 100
• Values R = 100 Ohms, C = 8.5pF
• ESD-Protection Yes
• Inductance -
• Resistance 100 Ohms
• Cutoff-Frequency 200 MHz
