TPD5E003DPFR

TPD5E003DPFR Overview

Product belongs to the TPD5E003 series. Type: Zener Digi-ReelR Alternate Packaging is the packaging method for this product This product's Termination-Style is ' SMD/SMT ' for easy integration into your design. 6-XFDFN Operational temperature range: -40°C ~ 125°C (TA) Surface Mount mounting type Versatile General Purpose applications for maximum usability Number of channels: 5 Channel 4 Channel Supplier device package: 6-X2SON (1x1) 4 Bidirectional-Channels The Voltage-Reverse-Standoff-Typ is set at a maximum of 5V (Max). The Voltage-Breakdown-Min is 6V. No Power-Line-Protection 10pF @ 1MHz Capacitance-Frequency Power-off control: 40 W Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Breakdown-Voltage: 6 V Clamping-Voltage: 19.5 V The Cd-Diode-Capacitance is 10 pF 5 V working voltage Polarity: Unidirectional Bidirectional 10 A of IPP, Peak Pulse, and Current 15 kV of Vesd-Voltage-ESD-Contact 15 kV Vesd-Voltage-ESD-Air-Gap This product operates at a 5.5 V supply voltage for reliable performance.

TPD5E003DPFR Image

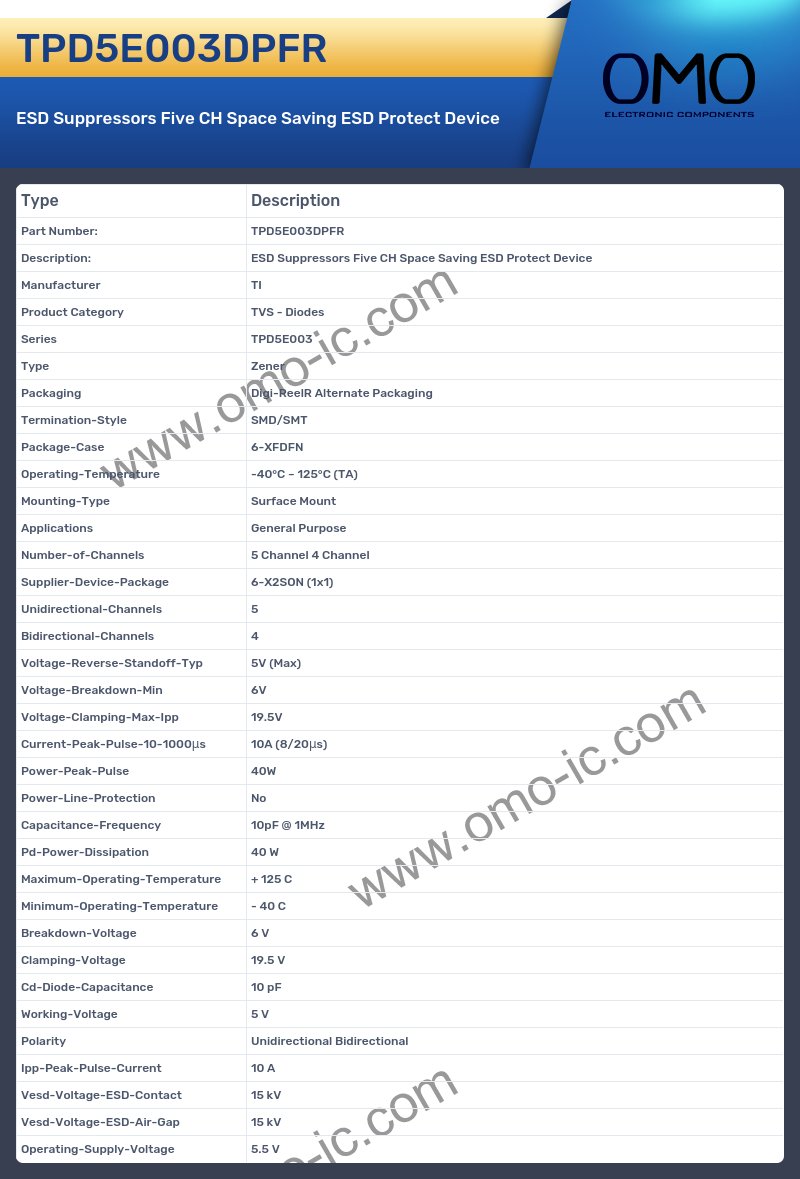

TPD5E003DPFR Specifications

• Manufacturer TI
• Product Category TVS - Diodes
• Series TPD5E003
• Type Zener
• Packaging Digi-ReelR Alternate Packaging
• Termination-Style SMD/SMT
• Package-Case 6-XFDFN
• Operating-Temperature -40°C ~ 125°C (TA)
• Mounting-Type Surface Mount
• Applications General Purpose
• Number-of-Channels 5 Channel 4 Channel
• Supplier-Device-Package 6-X2SON (1x1)
• Unidirectional-Channels 5
• Bidirectional-Channels 4
• Voltage-Reverse-Standoff-Typ 5V (Max)
• Voltage-Breakdown-Min 6V
• Voltage-Clamping-Max-Ipp 19.5V
• Current-Peak-Pulse-10-1000μs 10A (8/20μs)
• Power-Peak-Pulse 40W
• Power-Line-Protection No
• Capacitance-Frequency 10pF @ 1MHz
• Pd-Power-Dissipation 40 W
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Breakdown-Voltage 6 V
• Clamping-Voltage 19.5 V
• Cd-Diode-Capacitance 10 pF
• Working-Voltage 5 V
• Polarity Unidirectional Bidirectional
• Ipp-Peak-Pulse-Current 10 A
• Vesd-Voltage-ESD-Contact 15 kV
• Vesd-Voltage-ESD-Air-Gap 15 kV
• Operating-Supply-Voltage 5.5 V
