TP2522N8-G

TP2522N8-G Overview

Reel is the packaging method for this product Weight of 0.001862 oz SMD/SMT Mounting-Style SOT-89-3 Si is the technology used. Number of channels: 1 Channel Configuration Single Transistor type: 1 P-Channel Power-off control: 1.6 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C This product has a 15 ns of 16 ns. This product has a 15 ns of 16 ns. This product's 20 V. The ID of continuous drain current is - 260 mA. This product has a Vds-Drain-Source-Breakdown-Voltageof - 220 V. The 12 Ohms for this product is 12 Ohms. The transistor polarity is P-Channel. 'Typical-Turn-Off-Delay-Time' of 20 ns This product has a 10 ns. This product operates in Enhancement channel mode for optimal performance.

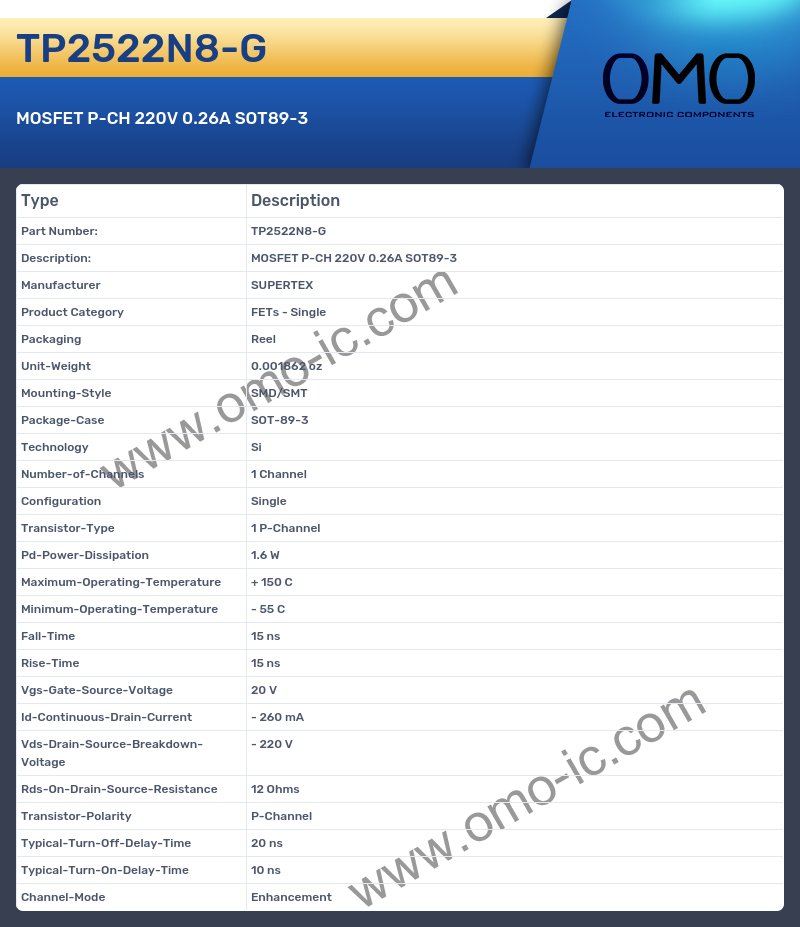

TP2522N8-G Image

TP2522N8-G Specifications

• Manufacturer SUPERTEX
• Product Category FETs - Single
• Packaging Reel
• Unit-Weight 0.001862 oz
• Mounting-Style SMD/SMT
• Package-Case SOT-89-3
• Technology Si
• Number-of-Channels 1 Channel
• Configuration Single
• Transistor-Type 1 P-Channel
• Pd-Power-Dissipation 1.6 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 55 C
• Fall-Time 15 ns
• Rise-Time 15 ns
• Vgs-Gate-Source-Voltage 20 V
• Id-Continuous-Drain-Current - 260 mA
• Vds-Drain-Source-Breakdown-Voltage - 220 V
• Rds-On-Drain-Source-Resistance 12 Ohms
• Transistor-Polarity P-Channel
• Typical-Turn-Off-Delay-Time 20 ns
• Typical-Turn-On-Delay-Time 10 ns
• Channel-Mode Enhancement
