TN1625-1000G-TR

TN1625-1000G-TR Overview

Product belongs to the TN1625 series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.070548 oz SMD/SMT Mounting-Style TO-263-3, D2Pak (2 Leads + Tab), TO-263AB Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Supplier device package: D2PAK 40mA of Current-Hold-Ih-Max The Voltage-Off-State is 1000V. Voltage-Gate-Trigger-Vgt-Max 1.3V 25mA of Current-Gate-Trigger-Igt-Max Maximum 1.6V On-State Voltage Its 10A Current-On-State-It-AV-Max 16A is the maximum Current-On-State-It-RMS. 5μA is the Current-Off-State-Max; This product can handle a non-repetitive surge current of 190A, 200A for 50-60Hz Itsm. SCR-Type: Standard Recovery; Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C The 1000 V Rated Repetitive Off-State Voltage VDRM; 40 mA Maximun Holding Current of Ih The Gate-Trigger-Voltage-Vgt attribute is 1.3 V on this product. Gate-Trigger-Current-Igt: 25 mA; 16 A RMS Current On-State 200 A Non-Repetitive On-State Current The 5 uA Off-State Leakage Current in VDRM and IDRM. The Maximum-Gate-Peak-Inverse-Voltage is 5 V. Vf-Forward-Voltage: 500 V

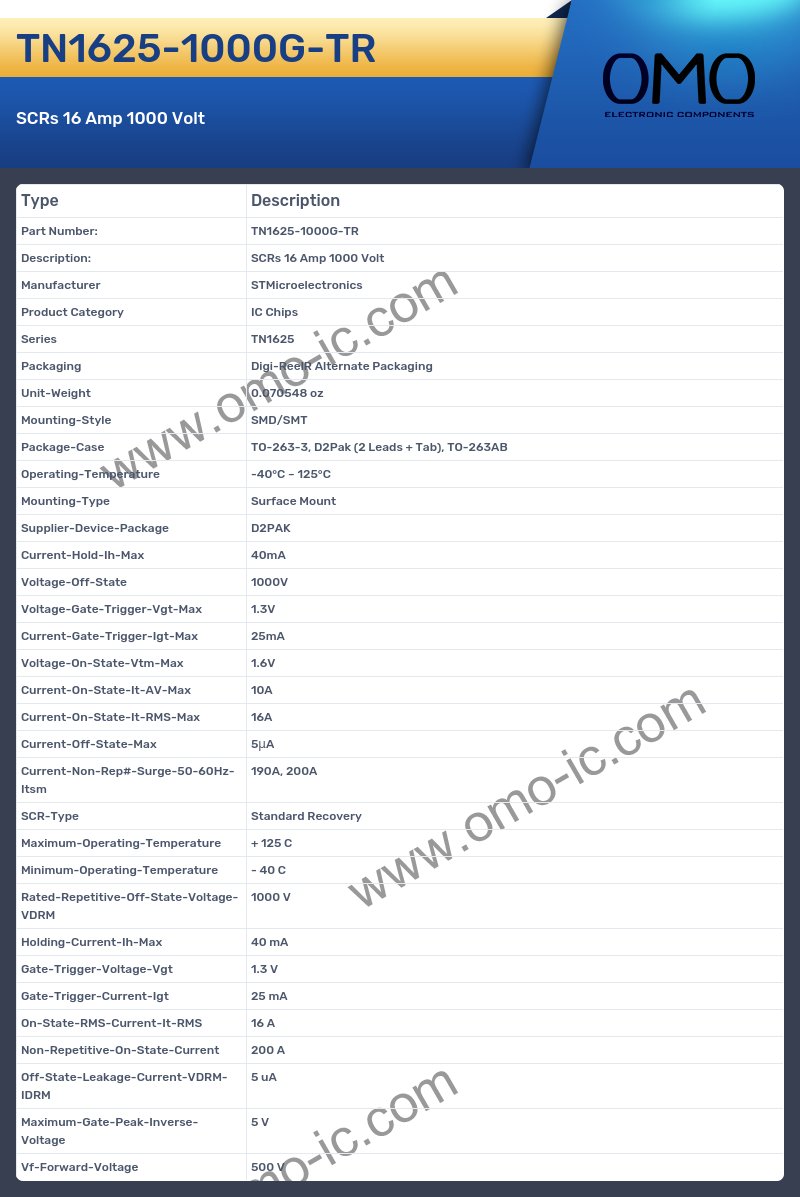

TN1625-1000G-TR Image

TN1625-1000G-TR Specifications

• Manufacturer STMicroelectronics
• Product Category IC Chips
• Series TN1625
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.070548 oz
• Mounting-Style SMD/SMT
• Package-Case TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Supplier-Device-Package D2PAK
• Current-Hold-Ih-Max 40mA
• Voltage-Off-State 1000V
• Voltage-Gate-Trigger-Vgt-Max 1.3V
• Current-Gate-Trigger-Igt-Max 25mA
• Voltage-On-State-Vtm-Max 1.6V
• Current-On-State-It-AV-Max 10A
• Current-On-State-It-RMS-Max 16A
• Current-Off-State-Max 5μA
• Current-Non-Rep#-Surge-50-60Hz-Itsm 190A, 200A
• SCR-Type Standard Recovery
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Rated-Repetitive-Off-State-Voltage-VDRM 1000 V
• Holding-Current-Ih-Max 40 mA
• Gate-Trigger-Voltage-Vgt 1.3 V
• Gate-Trigger-Current-Igt 25 mA
• On-State-RMS-Current-It-RMS 16 A
• Non-Repetitive-On-State-Current 200 A
• Off-State-Leakage-Current-VDRM-IDRM 5 uA
• Maximum-Gate-Peak-Inverse-Voltage 5 V
• Vf-Forward-Voltage 500 V
