TM4C1237D5PZI

TM4C1237D5PZI Overview

Product belongs to the Tiva C series. Tray Alternate Packaging is the packaging method for this product Weight of 0.046530 oz SMD/SMT Mounting-Style Trade name: Tiva. LQFP-100 Operational temperature range: -40°C ~ 85°C (TA) Supplier device package: 100-LQFP (14x14) This product has 69 I/O ports for versatile connectivity. Operating frequency: 80MHz Program memory type: FLASH CAN, I2C, IrDA, Microwire, SPI, SSI, UART/USART, USB OTG interface Supply Voltage: 1.08 V ~ 3.63 V 32-Bit architecture Internal oscillator type Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 3.3 V supply voltage for reliable performance. CAN I2C SSI UART interface type Processor Core: ARM Cortex M4 This product is powered by the Tiva C Processor-Series, providing high performance and efficiency. The 32 bit. Maximum clock frequency of 80 MHz Number of ADC Channels: 12 This product has a 24 kB data RAM size, providing ample storage for complex applications. The product has a 2 kB data-ROM size. This product features 14 Timer number of timers and counters. This product features a high-precision 12 bit, ensuring accurate data conversion. This product utilizes SRAM, providing fast and efficient data storage. The EEPROM Data-ROM-Type ensures non-volatile memory storage.

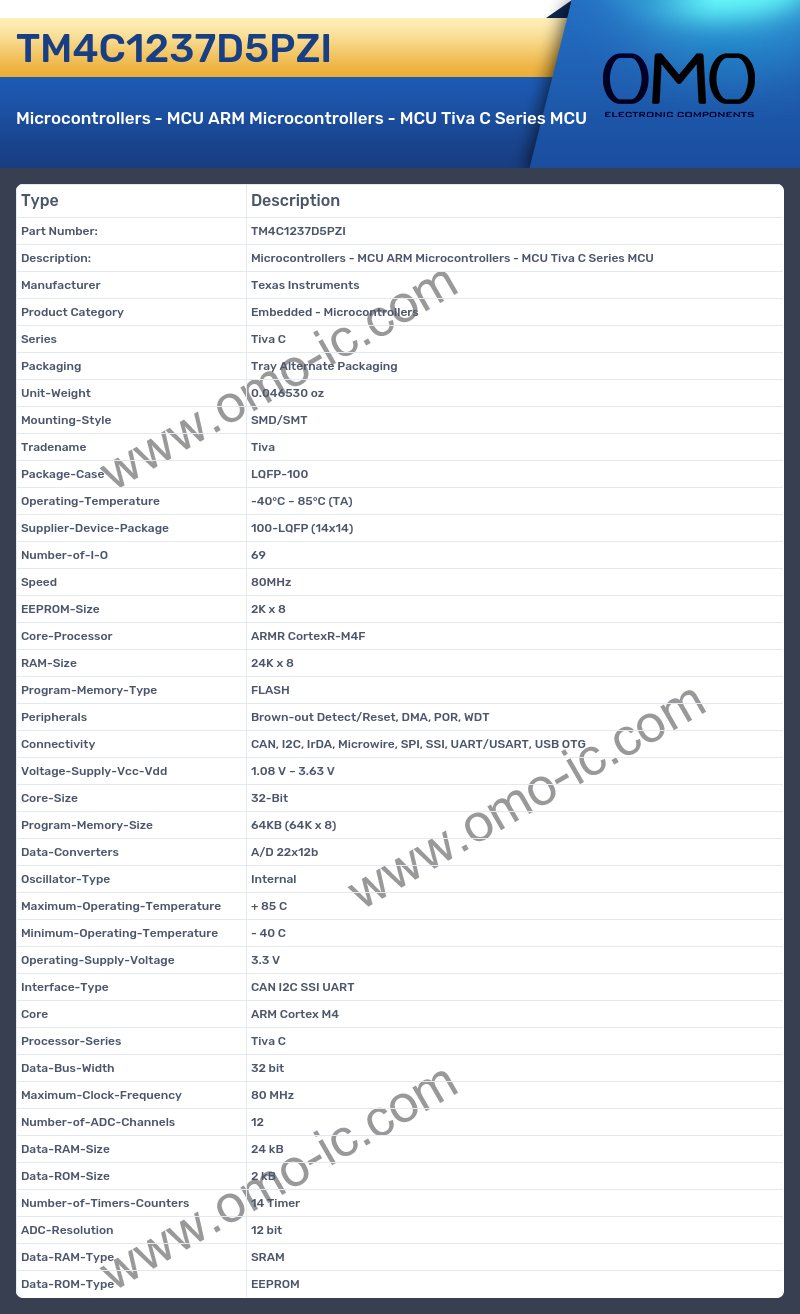

TM4C1237D5PZI Image

TM4C1237D5PZI Specifications

• Manufacturer Texas Instruments
• Product Category Embedded - Microcontrollers
• Series Tiva C
• Packaging Tray Alternate Packaging
• Unit-Weight 0.046530 oz
• Mounting-Style SMD/SMT
• Tradename Tiva
• Package-Case LQFP-100
• Operating-Temperature -40°C ~ 85°C (TA)
• Supplier-Device-Package 100-LQFP (14x14)
• Number-of-I-O 69
• Speed 80MHz
• EEPROM-Size 2K x 8
• Core-Processor ARMR CortexR-M4F
• RAM-Size 24K x 8
• Program-Memory-Type FLASH
• Peripherals Brown-out Detect/Reset, DMA, POR, WDT
• Connectivity CAN, I2C, IrDA, Microwire, SPI, SSI, UART/USART, USB OTG
• Voltage-Supply-Vcc-Vdd 1.08 V ~ 3.63 V
• Core-Size 32-Bit
• Program-Memory-Size 64KB (64K x 8)
• Data-Converters A/D 22x12b
• Oscillator-Type Internal
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 3.3 V
• Interface-Type CAN I2C SSI UART
• Core ARM Cortex M4
• Processor-Series Tiva C
• Data-Bus-Width 32 bit
• Maximum-Clock-Frequency 80 MHz
• Number-of-ADC-Channels 12
• Data-RAM-Size 24 kB
• Data-ROM-Size 2 kB
• Number-of-Timers-Counters 14 Timer
• ADC-Resolution 12 bit
• Data-RAM-Type SRAM
• Data-ROM-Type EEPROM
