TM4C1231D5PMTR Overview

Product belongs to the Tiva C series. This product is categorized as MCU Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.012088 oz SMD/SMT Mounting-Style Trade name: Tiva. LQFP-64 Operational temperature range: -40°C ~ 105°C (TA) Supplier device package: 64-LQFP (10x10) This product has 43 I/O ports for versatile connectivity. Operating frequency: 80MHz Program memory type: FLASH CAN, I2C, IrDA, Microwire, SPI, SSI, UART/USART interface Supply Voltage: 1.08 V ~ 3.63 V 32-Bit architecture Internal oscillator type Maximum operating temperature of + 105 C Minimum operating temperature: - 40 C This product operates at a 3.3 V supply voltage for reliable performance. CAN I2C SSI UART interface type Processor Core: ARM Cortex M4F This product is powered by the Tiva C Processor-Series, providing high performance and efficiency. The 32 bit. Maximum supply voltage of 3.63 V Minimum supply voltage is 3.15 V Maximum clock frequency of 80 MHz Analog supply voltage: 3.3 V Number of ADC Channels: 12 Channel This product has 43 I/O connections. This product has a 24 kB data RAM size, providing ample storage for complex applications. The product has a 2 kB data-ROM size. This product features 6 x 16 bit/32 bit 6 x 32 bit/64 bit number of timers and counters. This product includes Watchdog Timer This product features a high-precision 12 bit, ensuring accurate data conversion. This product utilizes SRAM, providing fast and efficient data storage. The EEPROM Data-ROM-Type ensures non-volatile memory storage.

TM4C1231D5PMTR Image

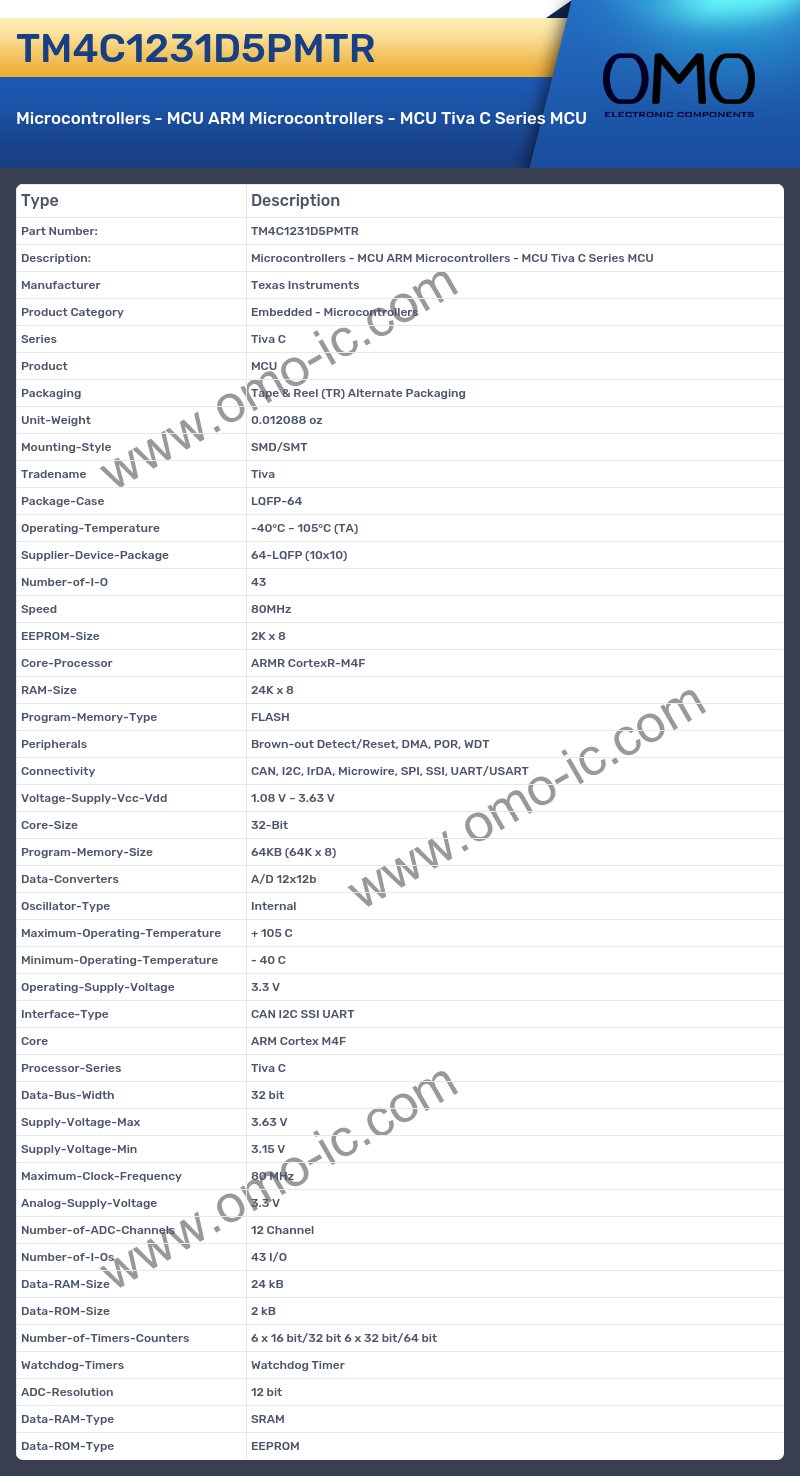

TM4C1231D5PMTR Specifications

• Manufacturer Texas Instruments
• Product Category Embedded - Microcontrollers
• Series Tiva C
• Product MCU
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.012088 oz
• Mounting-Style SMD/SMT
• Tradename Tiva
• Package-Case LQFP-64
• Operating-Temperature -40°C ~ 105°C (TA)
• Supplier-Device-Package 64-LQFP (10x10)
• Number-of-I-O 43
• Speed 80MHz
• EEPROM-Size 2K x 8
• Core-Processor ARMR CortexR-M4F
• RAM-Size 24K x 8
• Program-Memory-Type FLASH
• Peripherals Brown-out Detect/Reset, DMA, POR, WDT
• Connectivity CAN, I2C, IrDA, Microwire, SPI, SSI, UART/USART
• Voltage-Supply-Vcc-Vdd 1.08 V ~ 3.63 V
• Core-Size 32-Bit
• Program-Memory-Size 64KB (64K x 8)
• Data-Converters A/D 12x12b
• Oscillator-Type Internal
• Maximum-Operating-Temperature + 105 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 3.3 V
• Interface-Type CAN I2C SSI UART
• Core ARM Cortex M4F
• Processor-Series Tiva C
• Data-Bus-Width 32 bit
• Supply-Voltage-Max 3.63 V
• Supply-Voltage-Min 3.15 V
• Maximum-Clock-Frequency 80 MHz
• Analog-Supply-Voltage 3.3 V
• Number-of-ADC-Channels 12 Channel
• Number-of-I-Os 43 I/O
• Data-RAM-Size 24 kB
• Data-ROM-Size 2 kB
• Number-of-Timers-Counters 6 x 16 bit/32 bit 6 x 32 bit/64 bit
• Watchdog-Timers Watchdog Timer
• ADC-Resolution 12 bit
• Data-RAM-Type SRAM
• Data-ROM-Type EEPROM
