TLV70242PDSET

TLV70242PDSET Overview

Product belongs to the TLV70242P series. This product is categorized as LDO Regulators Type: Low Dropout Linear Regulator Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.000342 oz SMD/SMT Mounting-Style WSON-6 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Fixed Supplier device package: 6-WSON (1.5x1.5) Up to 5.5V voltage input Number-of-Outputs: 1 Output Output voltage: 4.2V Positive Fixed regulator topology The product has 1 of 1. Power-off control: 555 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 4.2 V 35 uA is 92 nA. Maximum Input Voltage: 5.5 V Output current: 300 mA The product's 2 V is 5.1 V. Load regulation is 1 mV. The voltage regulation accuracy of this product is 2 %. The maximum 375 mV is 360 mV. This product's 1 mV is 0.01 %/V. The product's 68 dB is -20 dB.

TLV70242PDSET Image

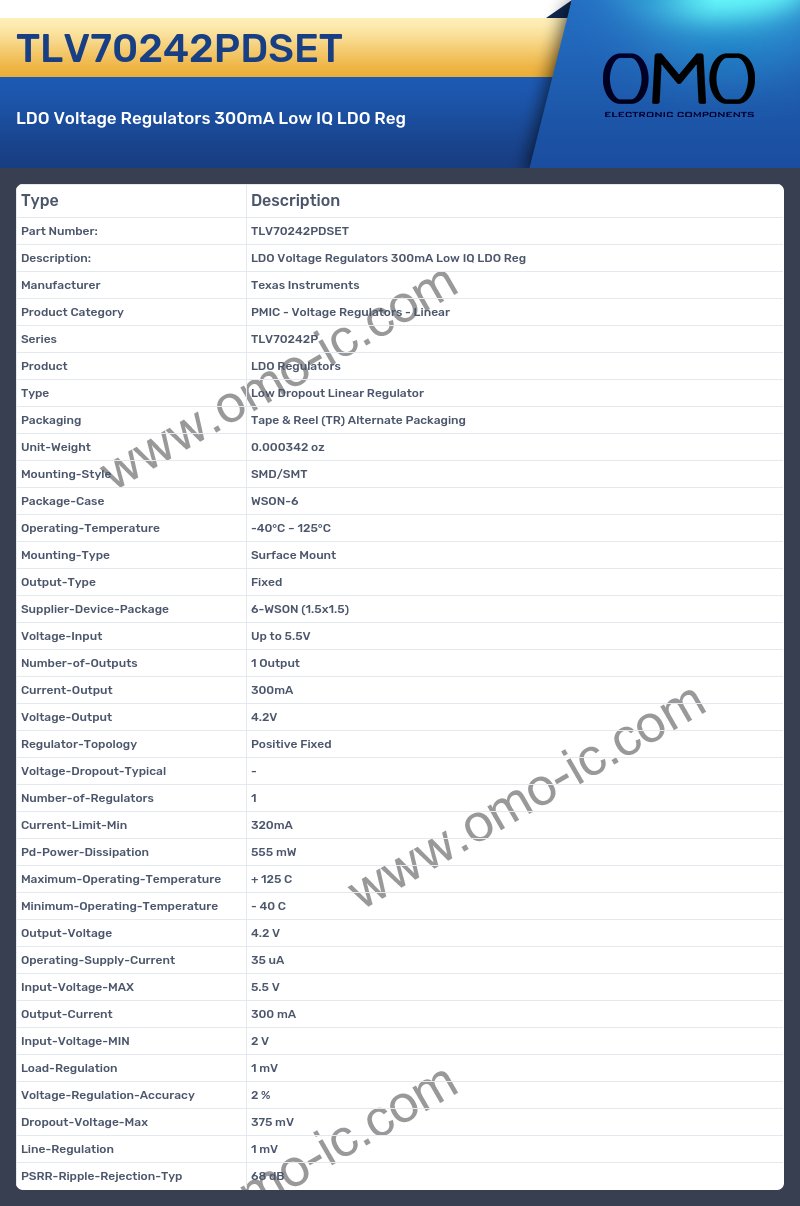

TLV70242PDSET Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - Linear
• Series TLV70242P
• Product LDO Regulators
• Type Low Dropout Linear Regulator
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.000342 oz
• Mounting-Style SMD/SMT
• Package-Case WSON-6
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package 6-WSON (1.5x1.5)
• Voltage-Input Up to 5.5V
• Number-of-Outputs 1 Output
• Current-Output 300mA
• Voltage-Output 4.2V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical -
• Number-of-Regulators 1
• Current-Limit-Min 320mA
• Pd-Power-Dissipation 555 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 4.2 V
• Operating-Supply-Current 35 uA
• Input-Voltage-MAX 5.5 V
• Output-Current 300 mA
• Input-Voltage-MIN 2 V
• Load-Regulation 1 mV
• Voltage-Regulation-Accuracy 2 %
• Dropout-Voltage-Max 375 mV
• Line-Regulation 1 mV
• PSRR-Ripple-Rejection-Typ 68 dB
