TLV5636CD

TLV5636CD Overview

Product belongs to the TLV5636 series. This product is categorized as Digital to Analog Converters Tube Alternate Packaging is the packaging method for this product Weight of 0.002677 oz SMD/SMT Mounting-Style SOIC-8 Operational temperature range: 0°C ~ 70°C Output-Type: Voltage - Buffered Number of channels: 1 Channel Supplier device package: 8-SOIC Data-Interface: SPI 12 bits The Voltage-Supply-Analog is 2.7 V ~ 3.3 V, 5V. The Voltage Supply Digital for this product is 2.7 V ~ 3.3 V, 5V. The architecture of this product is String DAC . External, Internal is the reference type. Number of D-A converters: 1 The 7μs is an impressive 15 us. No Differential-Output Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Serial 3-Wire 4-Wire SPI interface type Signal-to-Noise Ratio of 75 dB Maximum supply voltage of 5.5 V Minimum supply voltage is 2.7 V Number-of-Converters: 1 Converter

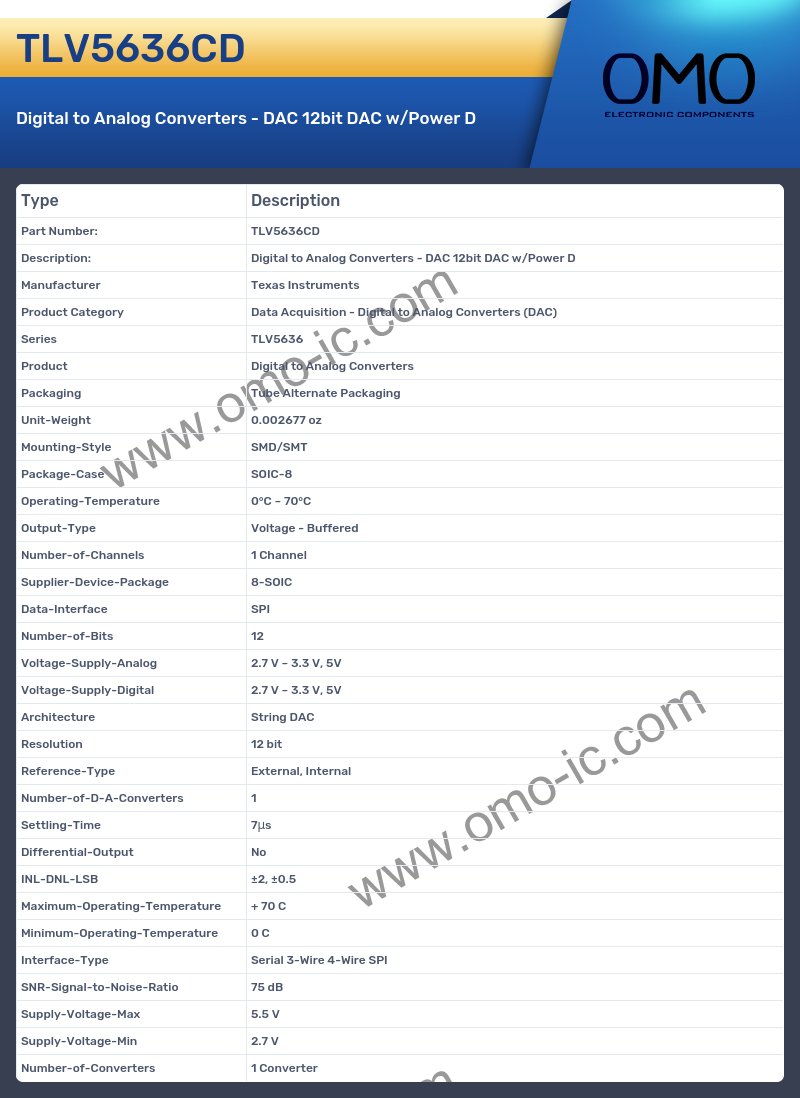

TLV5636CD Image

TLV5636CD Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series TLV5636
• Product Digital to Analog Converters
• Packaging Tube Alternate Packaging
• Unit-Weight 0.002677 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-8
• Operating-Temperature 0°C ~ 70°C
• Output-Type Voltage - Buffered
• Number-of-Channels 1 Channel
• Supplier-Device-Package 8-SOIC
• Data-Interface SPI
• Number-of-Bits 12
• Voltage-Supply-Analog 2.7 V ~ 3.3 V, 5V
• Voltage-Supply-Digital 2.7 V ~ 3.3 V, 5V
• Architecture String DAC
• Resolution 12 bit
• Reference-Type External, Internal
• Number-of-D-A-Converters 1
• Settling-Time 7μs
• Differential-Output No
• INL-DNL-LSB ±2, ±0.5
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Interface-Type Serial 3-Wire 4-Wire SPI
• SNR-Signal-to-Noise-Ratio 75 dB
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 2.7 V
• Number-of-Converters 1 Converter
