TLV3691IDPFT

TLV3691IDPFT Overview

Product belongs to the TLV3691 series. This product is categorized as Analog Comparators Type: General Purpose Tape & Reel (TR) Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style X2SON-6 The Rail to Rail for this product is CMOS/TTL. Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Push-Pull Number of channels: 1 Channel Supplier device package: 6-X2SON (1x1) Voltage supply range: 0.9 V ~ 6.5 V, ±0.45 V ~ 3.25 V 1 element 150nA maximum quiescent current. Maximum propagation delay: 35μs Hysteresis value of - 24 us response time Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C 150 nA is 92 nA. Maximum supply voltage of 6.5 V Minimum supply voltage is 0.9 V General Purpose comparator type Input bias current of 100 pA The 15 mV. 45 us is 23 microseconds. The 2000 uV/V. The 0.9 V to 6.5 V.

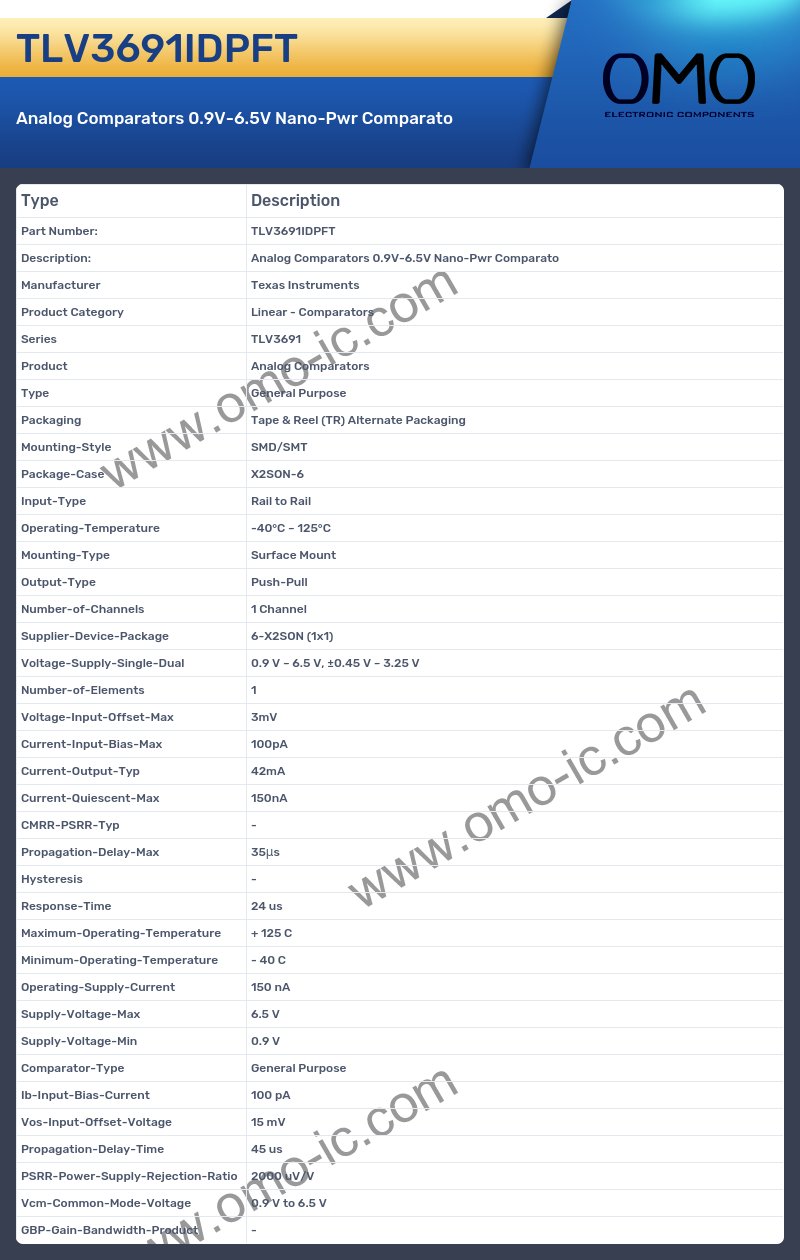

TLV3691IDPFT Image

TLV3691IDPFT Specifications

• Manufacturer Texas Instruments
• Product Category Linear - Comparators
• Series TLV3691
• Product Analog Comparators
• Type General Purpose
• Packaging Tape & Reel (TR) Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case X2SON-6
• Input-Type Rail to Rail
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Push-Pull
• Number-of-Channels 1 Channel
• Supplier-Device-Package 6-X2SON (1x1)
• Voltage-Supply-Single-Dual 0.9 V ~ 6.5 V, ±0.45 V ~ 3.25 V
• Number-of-Elements 1
• Voltage-Input-Offset-Max 3mV
• Current-Input-Bias-Max 100pA
• Current-Output-Typ 42mA
• Current-Quiescent-Max 150nA
• CMRR-PSRR-Typ -
• Propagation-Delay-Max 35μs
• Hysteresis -
• Response-Time 24 us
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 150 nA
• Supply-Voltage-Max 6.5 V
• Supply-Voltage-Min 0.9 V
• Comparator-Type General Purpose
• Ib-Input-Bias-Current 100 pA
• Vos-Input-Offset-Voltage 15 mV
• Propagation-Delay-Time 45 us
• PSRR-Power-Supply-Rejection-Ratio 2000 uV/V
• Vcm-Common-Mode-Voltage 0.9 V to 6.5 V
• GBP-Gain-Bandwidth-Product -
