TLV3011AIDBVR

TLV3011AIDBVR Overview

Product belongs to the TLV3011 series. This product is categorized as Analog Comparators Type: with Voltage Reference Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.001270 oz SMD/SMT Mounting-Style SOT-23-6 The Rail to Rail for this product is CMOS/TTL. Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Open Drain Number of channels: 1 Channel Supplier device package: SOT-23-6 Voltage supply range: 1.8 V ~ 5.5 V 1 element 5μA maximum quiescent current. Maximum propagation delay: 13.5μs Hysteresis value of - 6 us response time Power-off control: No Shutdown Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C 5 uA is 92 nA. Maximum supply voltage of 5.5 V Minimum supply voltage is 1.8 V General Purpose comparator type Input bias current of 10 pA The 12 mV. The 80 dB. The - 0.2 V to 5.7 V. The CMRR-Common-Mode-Rejection-Ratio is 74 dB.

TLV3011AIDBVR Image

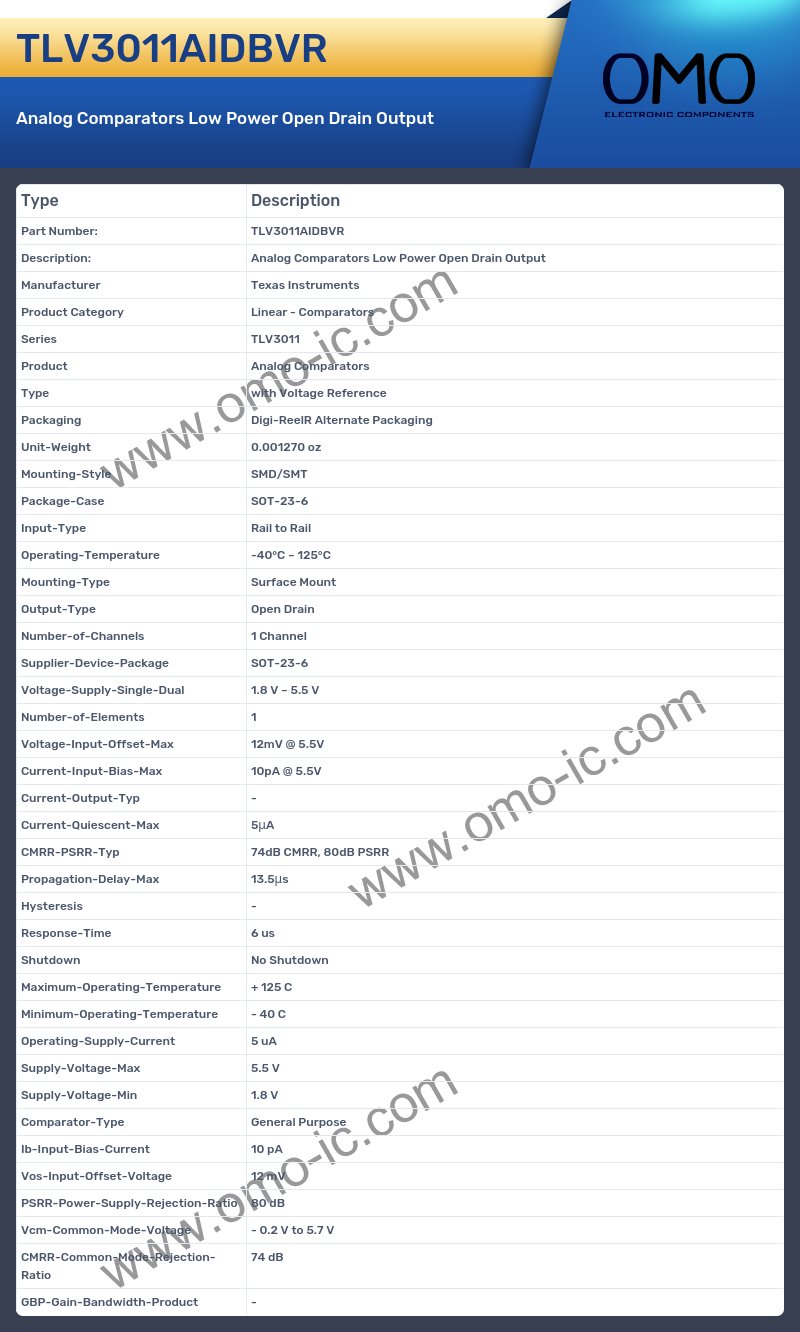

TLV3011AIDBVR Specifications

• Manufacturer Texas Instruments
• Product Category Linear - Comparators
• Series TLV3011
• Product Analog Comparators
• Type with Voltage Reference
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.001270 oz
• Mounting-Style SMD/SMT
• Package-Case SOT-23-6
• Input-Type Rail to Rail
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Open Drain
• Number-of-Channels 1 Channel
• Supplier-Device-Package SOT-23-6
• Voltage-Supply-Single-Dual 1.8 V ~ 5.5 V
• Number-of-Elements 1
• Voltage-Input-Offset-Max 12mV @ 5.5V
• Current-Input-Bias-Max 10pA @ 5.5V
• Current-Output-Typ -
• Current-Quiescent-Max 5μA
• CMRR-PSRR-Typ 74dB CMRR, 80dB PSRR
• Propagation-Delay-Max 13.5μs
• Hysteresis -
• Response-Time 6 us
• Shutdown No Shutdown
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 5 uA
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 1.8 V
• Comparator-Type General Purpose
• Ib-Input-Bias-Current 10 pA
• Vos-Input-Offset-Voltage 12 mV
• PSRR-Power-Supply-Rejection-Ratio 80 dB
• Vcm-Common-Mode-Voltage - 0.2 V to 5.7 V
• CMRR-Common-Mode-Rejection-Ratio 74 dB
• GBP-Gain-Bandwidth-Product -
