TLV1570IDW

TLV1570IDW Overview

Product belongs to the TLV1570 series. This product is categorized as Analog to Digital Converters Tube is the packaging method for this product Weight of 0.018953 oz SMD/SMT Mounting-Style SOIC-20 The Single Ended for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Number of channels: 8 Channel Supplier device package: 20-SOIC This product's 1.25M. Data-Interface: SPI 10 bits The Voltage-Supply-Analog is 2.7 V ~ 5.5 V. The Voltage Supply Digital for this product is 2.7 V ~ 5.5 V. Configuration MUX-ADC The architecture of this product is SAR . External, Internal is the reference type. 1 units Power-off control: 47 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Serial 4-Wire 5-Wire SPI interface type Signal-to-Noise Ratio of 61 dB Number-of-Converters: 1 Converter 1.25 MS/s Sampling Rate Analog supply voltage: 2.7 V to 5.5 V Digital Supply Voltage: 2.7 V to 5.5 V Integral Nonlinearity: +/- 1 LSB Differential nonlinearity: +/- 1 LSB

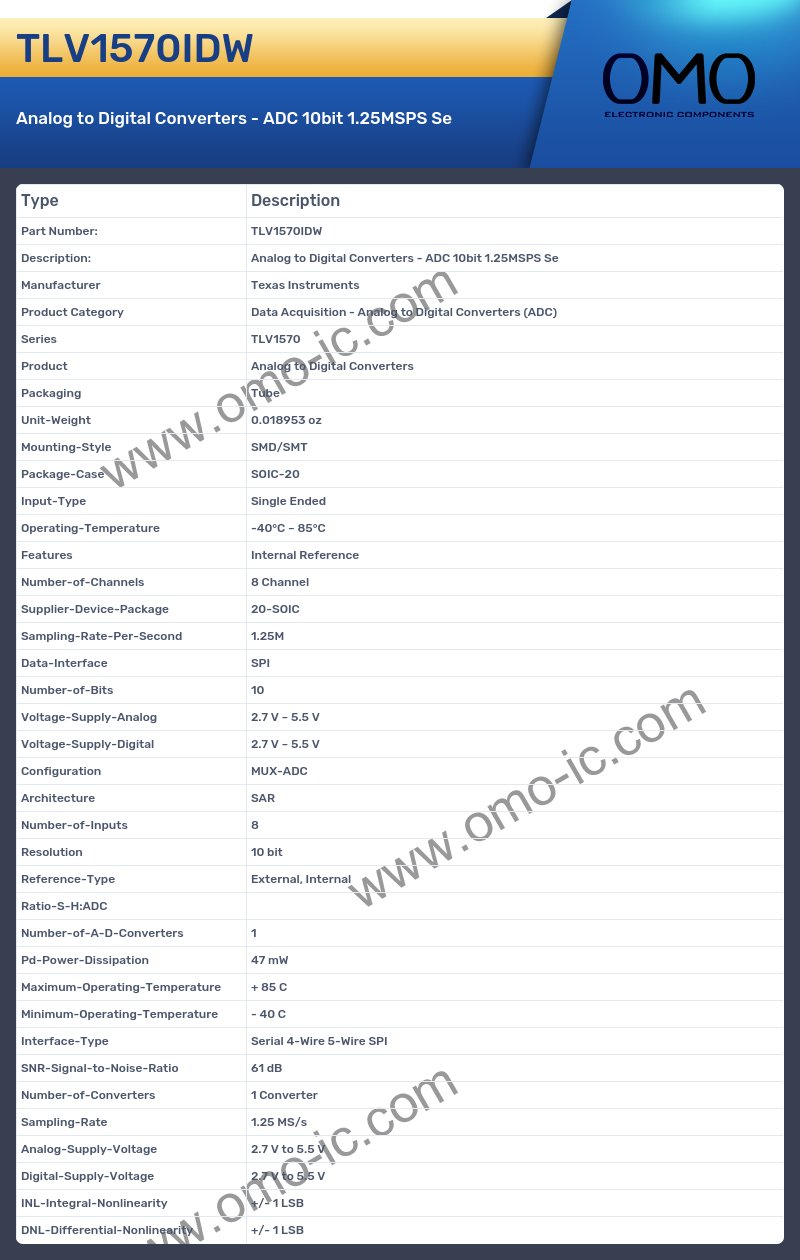

TLV1570IDW Image

TLV1570IDW Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series TLV1570
• Product Analog to Digital Converters
• Packaging Tube
• Unit-Weight 0.018953 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-20
• Input-Type Single Ended
• Operating-Temperature -40°C ~ 85°C
• Features Internal Reference
• Number-of-Channels 8 Channel
• Supplier-Device-Package 20-SOIC
• Sampling-Rate-Per-Second 1.25M
• Data-Interface SPI
• Number-of-Bits 10
• Voltage-Supply-Analog 2.7 V ~ 5.5 V
• Voltage-Supply-Digital 2.7 V ~ 5.5 V
• Configuration MUX-ADC
• Architecture SAR
• Number-of-Inputs 8
• Resolution 10 bit
• Reference-Type External, Internal
• Ratio-S-H:ADC
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 47 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Serial 4-Wire 5-Wire SPI
• SNR-Signal-to-Noise-Ratio 61 dB
• Number-of-Converters 1 Converter
• Sampling-Rate 1.25 MS/s
• Analog-Supply-Voltage 2.7 V to 5.5 V
• Digital-Supply-Voltage 2.7 V to 5.5 V
• INL-Integral-Nonlinearity +/- 1 LSB
• DNL-Differential-Nonlinearity +/- 1 LSB
