TLC7725IDR

TLC7725IDR Overview

Product belongs to the TLC7725 series. Type: Simple Reset/Power-On Reset Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.002677 oz SMD/SMT Mounting-Style SOIC-8 Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Output-Type: Push-Pull Supplier device package: 8-SOIC The Push-Pull, Totem Pole. This product's Active High/Active Low. This product has 1 monitored voltages. The reset timeout for this product is 1.1 ms Minimum. This product's 2.25V. Power-off control: 725 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 9 uA is 92 nA. Maximum supply voltage of 6 V Minimum supply voltage is 2 V This product includes No Watchdog This product's 5 V is 2.32 V. This product can only 1 Input at a time. This product features a No Manual Reset function that allows for manual reset. The product's Adjustable is 200 ms. The 2.32 V is 2.35 V. 2.25 V is set to 2.29 V.

TLC7725IDR Image

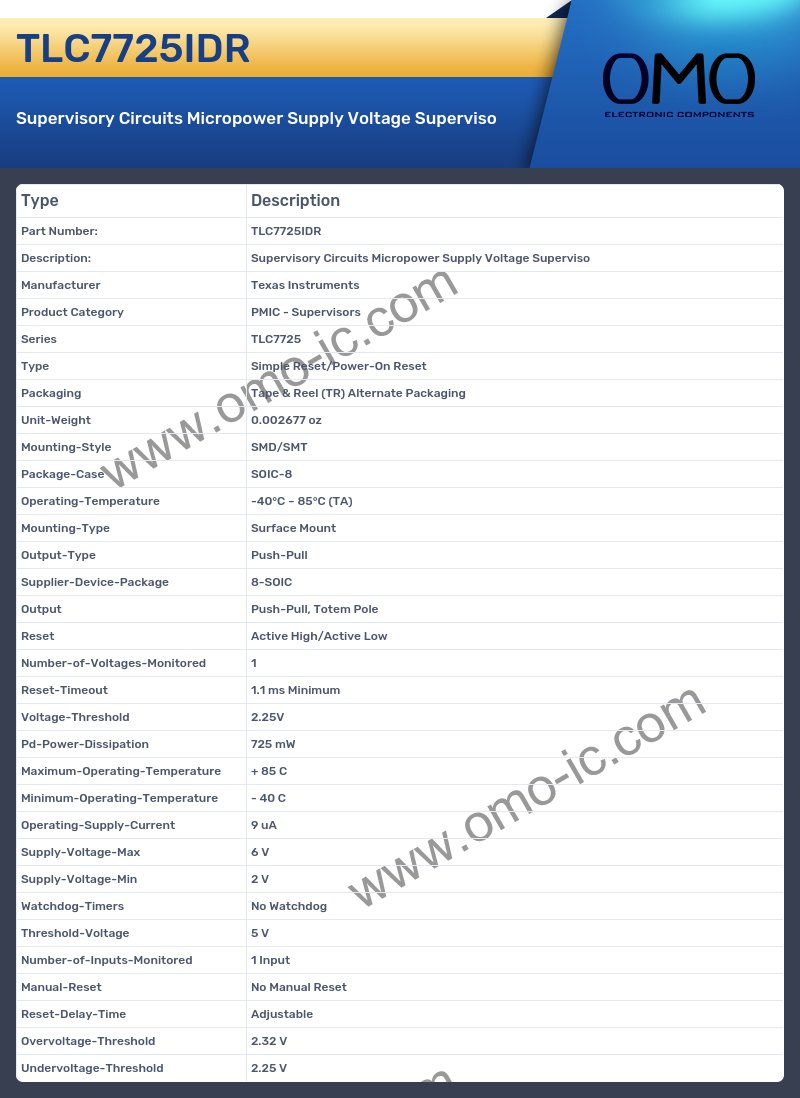

TLC7725IDR Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Supervisors
• Series TLC7725
• Type Simple Reset/Power-On Reset
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.002677 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-8
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Surface Mount
• Output-Type Push-Pull
• Supplier-Device-Package 8-SOIC
• Output Push-Pull, Totem Pole
• Reset Active High/Active Low
• Number-of-Voltages-Monitored 1
• Reset-Timeout 1.1 ms Minimum
• Voltage-Threshold 2.25V
• Pd-Power-Dissipation 725 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 9 uA
• Supply-Voltage-Max 6 V
• Supply-Voltage-Min 2 V
• Watchdog-Timers No Watchdog
• Threshold-Voltage 5 V
• Number-of-Inputs-Monitored 1 Input
• Manual-Reset No Manual Reset
• Reset-Delay-Time Adjustable
• Overvoltage-Threshold 2.32 V
• Undervoltage-Threshold 2.25 V
