TLC5510INS Overview

Product belongs to the TLC5510 series. This product is categorized as Analog to Digital Converters Tube Alternate Packaging is the packaging method for this product Weight of 0.010857 oz SMD/SMT Mounting-Style SOP-24 The Single Ended for this product is CMOS/TTL. Operational temperature range: 20°C ~ 75°C Number of channels: 1 Channel Supplier device package: 24-SO This product's 20M. Data-Interface: Parallel 8 bits The Voltage-Supply-Analog is 5V. The Voltage Supply Digital for this product is 5V. Configuration S/H-ADC The architecture of this product is Flash . Internal is the reference type. 1 units Maximum operating temperature of + 75 C Minimum operating temperature: - 20 C Parallel interface type Signal-to-Noise Ratio of 44 dB The TLC5510EVM. Number-of-Converters: 1 Converter 20 MS/s Sampling Rate Analog supply voltage: 4.75 V to 5.25 V Digital Supply Voltage: 4.75 V to 5.25 V Integral Nonlinearity: +/- 1 LSB Differential nonlinearity: +/- 0.75 LSB

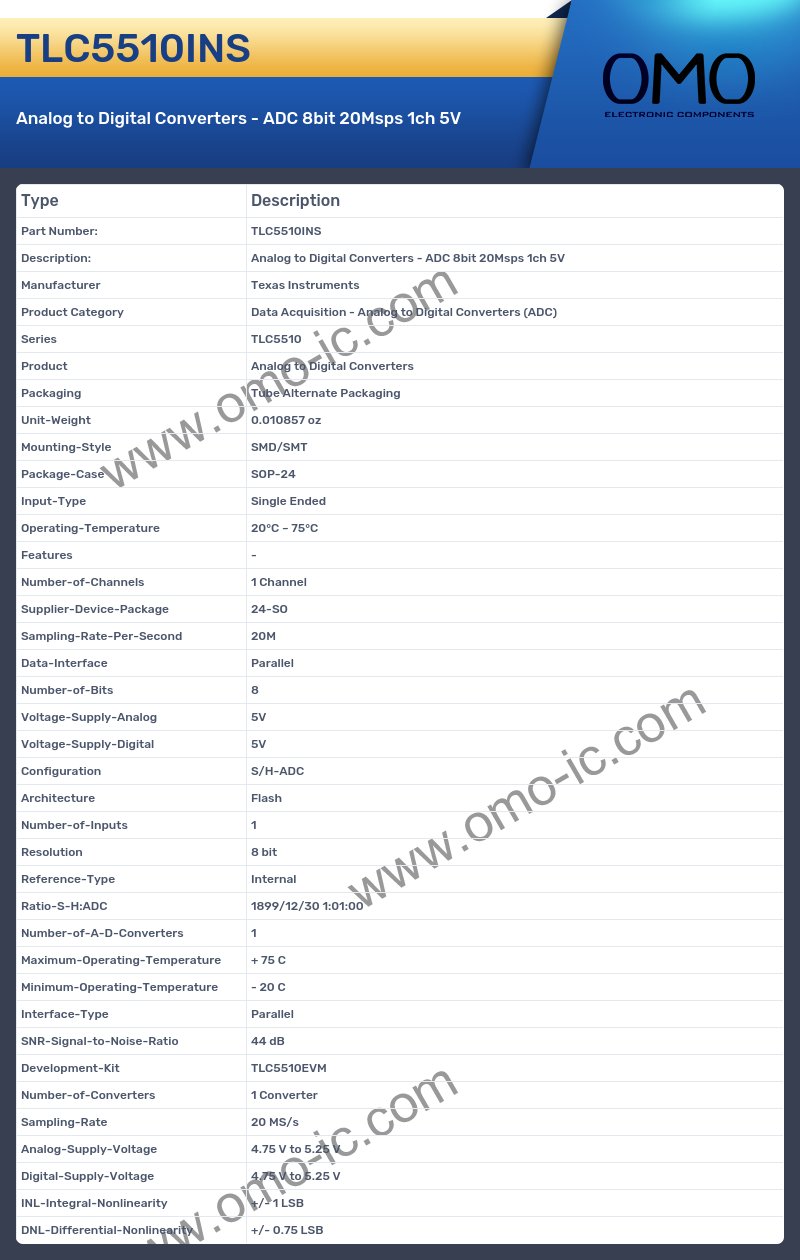

TLC5510INS Image

TLC5510INS Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series TLC5510
• Product Analog to Digital Converters
• Packaging Tube Alternate Packaging
• Unit-Weight 0.010857 oz
• Mounting-Style SMD/SMT
• Package-Case SOP-24
• Input-Type Single Ended
• Operating-Temperature 20°C ~ 75°C
• Features -
• Number-of-Channels 1 Channel
• Supplier-Device-Package 24-SO
• Sampling-Rate-Per-Second 20M
• Data-Interface Parallel
• Number-of-Bits 8
• Voltage-Supply-Analog 5V
• Voltage-Supply-Digital 5V
• Configuration S/H-ADC
• Architecture Flash
• Number-of-Inputs 1
• Resolution 8 bit
• Reference-Type Internal
• Ratio-S-H:ADC 1899/12/30 1:01:00
• Number-of-A-D-Converters 1
• Maximum-Operating-Temperature + 75 C
• Minimum-Operating-Temperature - 20 C
• Interface-Type Parallel
• SNR-Signal-to-Noise-Ratio 44 dB
• Development-Kit TLC5510EVM
• Number-of-Converters 1 Converter
• Sampling-Rate 20 MS/s
• Analog-Supply-Voltage 4.75 V to 5.25 V
• Digital-Supply-Voltage 4.75 V to 5.25 V
• INL-Integral-Nonlinearity +/- 1 LSB
• DNL-Differential-Nonlinearity +/- 0.75 LSB
