TLC545CFN

TLC545CFN Overview

Product belongs to the TLC545 series. This product is categorized as Analog to Digital Converters Tube is the packaging method for this product Weight of 0.041719 oz SMD/SMT Mounting-Style PLCC-28 The Single Ended for this product is CMOS/TTL. Operational temperature range: 0°C ~ 70°C Number of channels: 20 Channel Supplier device package: 28-PLCC (11.51x11.51) This product's 76k. Data-Interface: SPI 8 bits The Voltage-Supply-Analog is 5V. The Voltage Supply Digital for this product is 5V. Configuration MUX-S/H-ADC The architecture of this product is SAR . External, Internal is the reference type. 1 units Power-off control: 15 mW Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Serial SPI interface type Number-of-Converters: 1 Converter 76 kS/s Sampling Rate Analog supply voltage: 4.75 V to 5.5 V Digital Supply Voltage: 4.75 V to 5.5 V Integral Nonlinearity: +/- 0.5 LSB

TLC545CFN Image

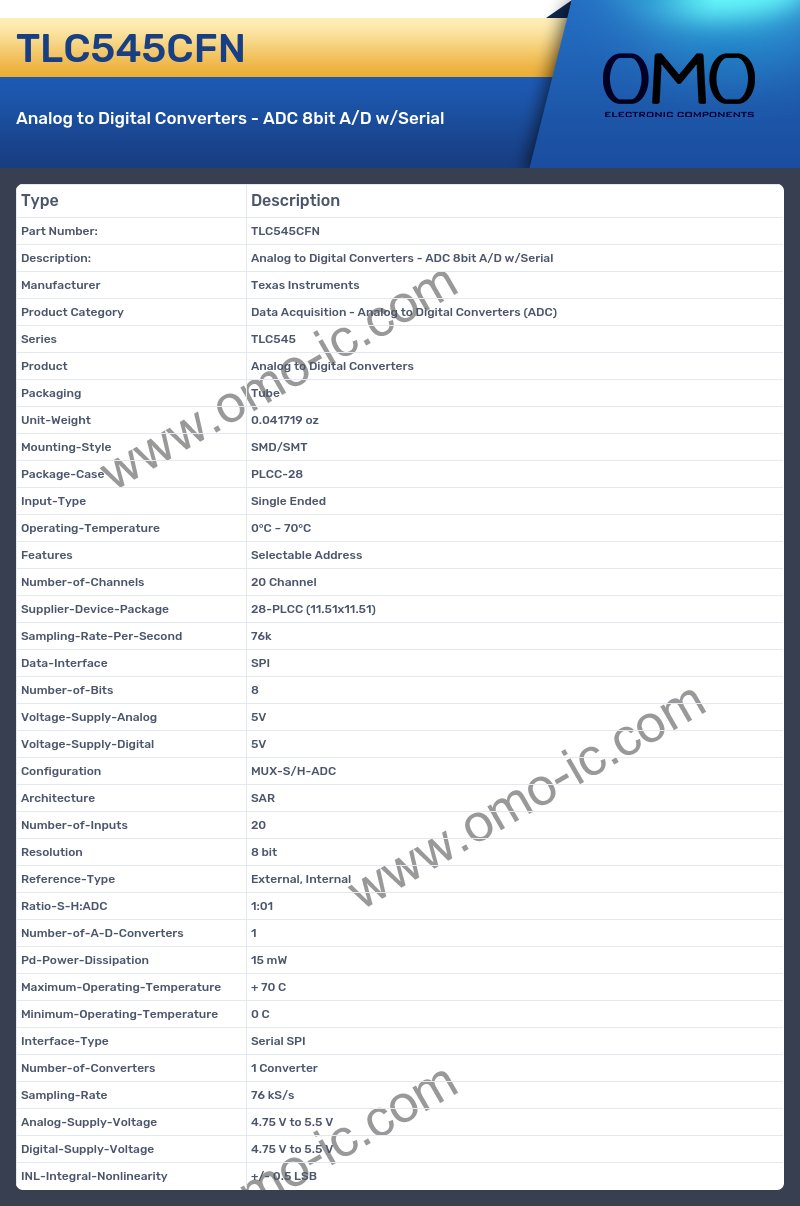

TLC545CFN Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series TLC545
• Product Analog to Digital Converters
• Packaging Tube
• Unit-Weight 0.041719 oz
• Mounting-Style SMD/SMT
• Package-Case PLCC-28
• Input-Type Single Ended
• Operating-Temperature 0°C ~ 70°C
• Features Selectable Address
• Number-of-Channels 20 Channel
• Supplier-Device-Package 28-PLCC (11.51x11.51)
• Sampling-Rate-Per-Second 76k
• Data-Interface SPI
• Number-of-Bits 8
• Voltage-Supply-Analog 5V
• Voltage-Supply-Digital 5V
• Configuration MUX-S/H-ADC
• Architecture SAR
• Number-of-Inputs 20
• Resolution 8 bit
• Reference-Type External, Internal
• Ratio-S-H:ADC 1:01
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 15 mW
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Interface-Type Serial SPI
• Number-of-Converters 1 Converter
• Sampling-Rate 76 kS/s
• Analog-Supply-Voltage 4.75 V to 5.5 V
• Digital-Supply-Voltage 4.75 V to 5.5 V
• INL-Integral-Nonlinearity +/- 0.5 LSB
