TLC354CPW

TLC354CPW Overview

Product belongs to the LinCMOS series. This product is categorized as Analog Comparators Type: Differential Tube Alternate Packaging is the packaging method for this product Weight of 0.002018 oz SMD/SMT Mounting-Style TSSOP-14 Operational temperature range: 0°C ~ 70°C Surface Mount mounting type Output-Type: CMOS, MOS, Open-Drain, TTL Number of channels: 4 Channel Supplier device package: 14-TSSOP Voltage supply range: 1.4 V ~ 16 V, ±0.7 V ~ 8 V 4 element 800μA maximum quiescent current. Maximum propagation delay: - Hysteresis value of - 200 ns response time Power-off control: No Shutdown Power-off control: 700 mW Maximum operating temperature of + 70 C Minimum operating temperature: 0 C 150 uA is 92 nA. Maximum supply voltage of 16 V Minimum supply voltage is 1.4 V Differential comparator type Input bias current of 600 pA The 5 mV. The 0.3 nA. 6 mA

TLC354CPW Image

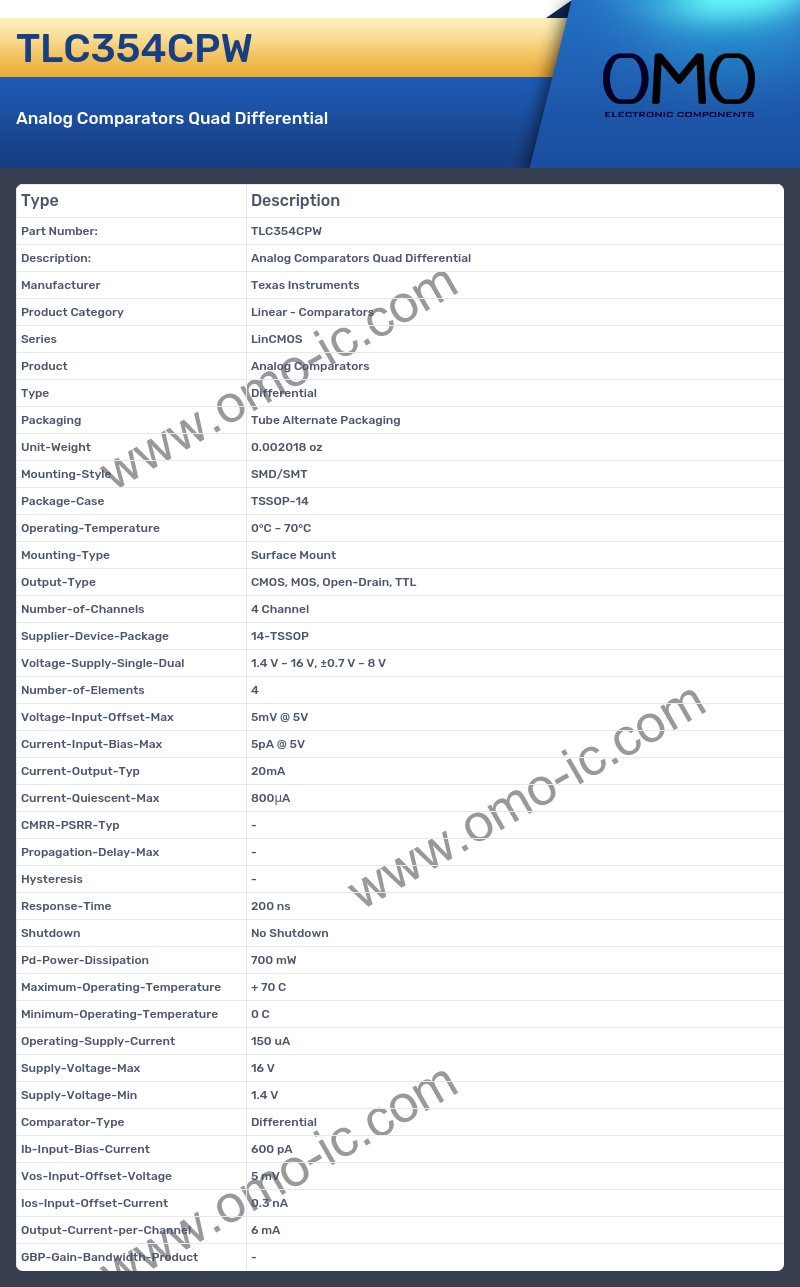

TLC354CPW Specifications

• Manufacturer Texas Instruments
• Product Category Linear - Comparators
• Series LinCMOS
• Product Analog Comparators
• Type Differential
• Packaging Tube Alternate Packaging
• Unit-Weight 0.002018 oz
• Mounting-Style SMD/SMT
• Package-Case TSSOP-14
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type Surface Mount
• Output-Type CMOS, MOS, Open-Drain, TTL
• Number-of-Channels 4 Channel
• Supplier-Device-Package 14-TSSOP
• Voltage-Supply-Single-Dual 1.4 V ~ 16 V, ±0.7 V ~ 8 V
• Number-of-Elements 4
• Voltage-Input-Offset-Max 5mV @ 5V
• Current-Input-Bias-Max 5pA @ 5V
• Current-Output-Typ 20mA
• Current-Quiescent-Max 800μA
• CMRR-PSRR-Typ -
• Propagation-Delay-Max -
• Hysteresis -
• Response-Time 200 ns
• Shutdown No Shutdown
• Pd-Power-Dissipation 700 mW
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Current 150 uA
• Supply-Voltage-Max 16 V
• Supply-Voltage-Min 1.4 V
• Comparator-Type Differential
• Ib-Input-Bias-Current 600 pA
• Vos-Input-Offset-Voltage 5 mV
• Ios-Input-Offset-Current 0.3 nA
• Output-Current-per-Channel 6 mA
• GBP-Gain-Bandwidth-Product -
