TLC339IN

TLC339IN Overview

Product belongs to the LinCMOS series. This product is categorized as Analog Comparators Type: General Purpose Tube Alternate Packaging is the packaging method for this product Weight of 0.032734 oz Through Hole Mounting-Style PDIP-14 Operational temperature range: -40°C ~ 85°C Through Hole mounting type Output-Type: CMOS, Open-Drain Number of channels: 4 Channel Supplier device package: 14-PDIP Voltage supply range: 3 V ~ 16 V 4 element 125μA maximum quiescent current. Maximum propagation delay: 4.5μs Hysteresis value of - 1 us response time Power-off control: No Shutdown Power-off control: 1150 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C 20 uA is 92 nA. Maximum supply voltage of 16 V Minimum supply voltage is 3 V General Purpose comparator type Input bias current of 30 nA The 5 mV. The 15 nA. 6 mA The CMRR-Common-Mode-Rejection-Ratio is 84 dB.

TLC339IN Image

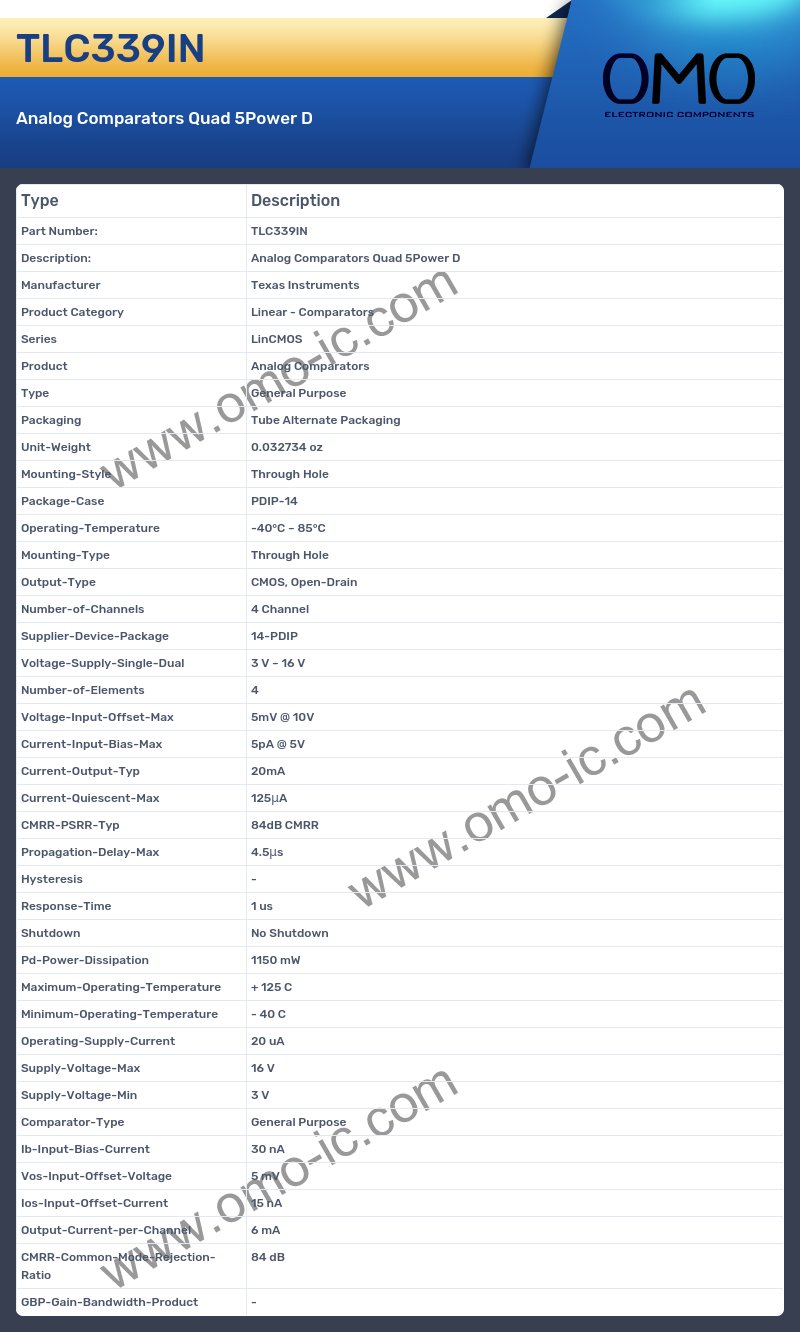

TLC339IN Specifications

• Manufacturer Texas Instruments
• Product Category Linear - Comparators
• Series LinCMOS
• Product Analog Comparators
• Type General Purpose
• Packaging Tube Alternate Packaging
• Unit-Weight 0.032734 oz
• Mounting-Style Through Hole
• Package-Case PDIP-14
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Through Hole
• Output-Type CMOS, Open-Drain
• Number-of-Channels 4 Channel
• Supplier-Device-Package 14-PDIP
• Voltage-Supply-Single-Dual 3 V ~ 16 V
• Number-of-Elements 4
• Voltage-Input-Offset-Max 5mV @ 10V
• Current-Input-Bias-Max 5pA @ 5V
• Current-Output-Typ 20mA
• Current-Quiescent-Max 125μA
• CMRR-PSRR-Typ 84dB CMRR
• Propagation-Delay-Max 4.5μs
• Hysteresis -
• Response-Time 1 us
• Shutdown No Shutdown
• Pd-Power-Dissipation 1150 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 20 uA
• Supply-Voltage-Max 16 V
• Supply-Voltage-Min 3 V
• Comparator-Type General Purpose
• Ib-Input-Bias-Current 30 nA
• Vos-Input-Offset-Voltage 5 mV
• Ios-Input-Offset-Current 15 nA
• Output-Current-per-Channel 6 mA
• CMRR-Common-Mode-Rejection-Ratio 84 dB
• GBP-Gain-Bandwidth-Product -
