TLC2543IDB

TLC2543IDB Overview

Product belongs to the TLC2543 series. This product is categorized as Analog to Digital Converters Tube Alternate Packaging is the packaging method for this product Weight of 0.005527 oz SMD/SMT Mounting-Style SSOP-20 The Single Ended for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Number of channels: 11 Channel Supplier device package: 20-SSOP This product's 66k. Data-Interface: SPI 12 bits The Voltage-Supply-Analog is 5V. The Voltage Supply Digital for this product is 5V. Configuration MUX-S/H-ADC The architecture of this product is SAR . External is the reference type. 1 units Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Serial SPI interface type Number-of-Converters: 1 Converter 66 kS/s Sampling Rate Analog supply voltage: 5 V Digital Supply Voltage: 4.5 V to 5.5 V Integral Nonlinearity: +/- 1 LSB Differential nonlinearity: +/- 1 LSB

TLC2543IDB Image

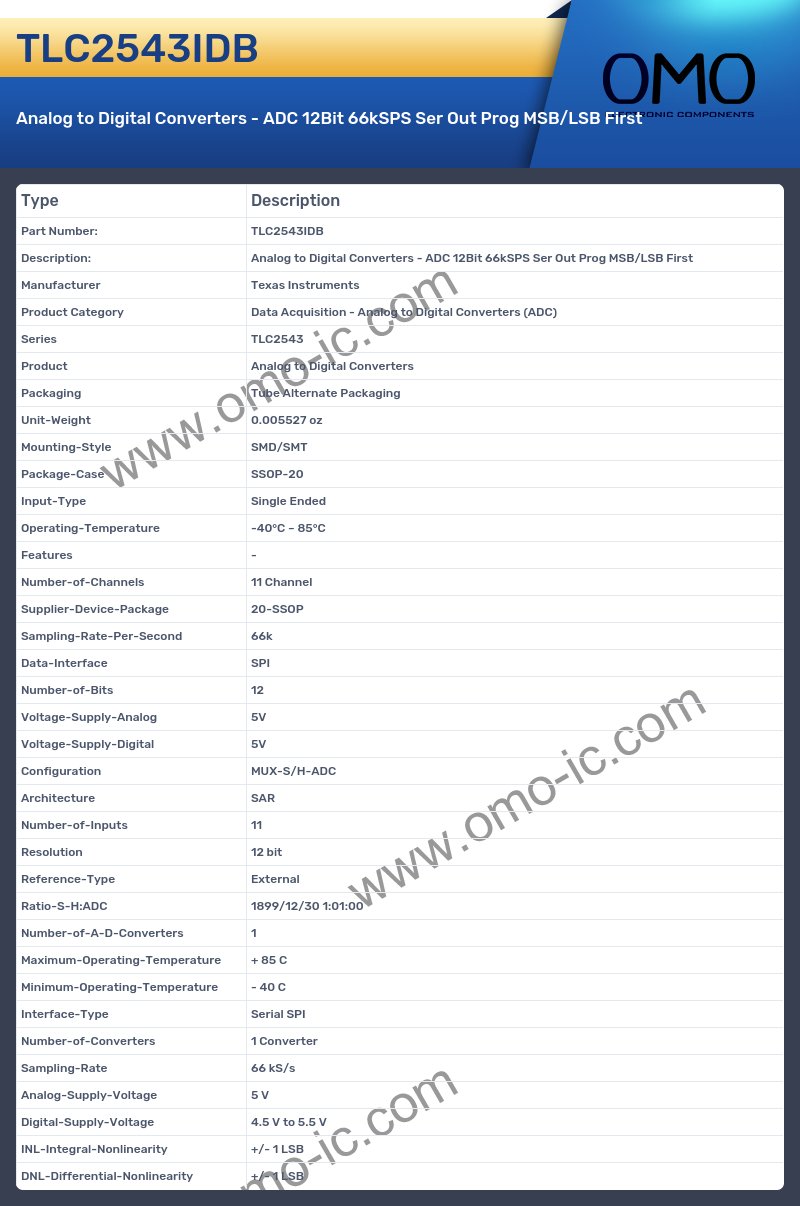

TLC2543IDB Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series TLC2543
• Product Analog to Digital Converters
• Packaging Tube Alternate Packaging
• Unit-Weight 0.005527 oz
• Mounting-Style SMD/SMT
• Package-Case SSOP-20
• Input-Type Single Ended
• Operating-Temperature -40°C ~ 85°C
• Features -
• Number-of-Channels 11 Channel
• Supplier-Device-Package 20-SSOP
• Sampling-Rate-Per-Second 66k
• Data-Interface SPI
• Number-of-Bits 12
• Voltage-Supply-Analog 5V
• Voltage-Supply-Digital 5V
• Configuration MUX-S/H-ADC
• Architecture SAR
• Number-of-Inputs 11
• Resolution 12 bit
• Reference-Type External
• Ratio-S-H:ADC 1899/12/30 1:01:00
• Number-of-A-D-Converters 1
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Serial SPI
• Number-of-Converters 1 Converter
• Sampling-Rate 66 kS/s
• Analog-Supply-Voltage 5 V
• Digital-Supply-Voltage 4.5 V to 5.5 V
• INL-Integral-Nonlinearity +/- 1 LSB
• DNL-Differential-Nonlinearity +/- 1 LSB
